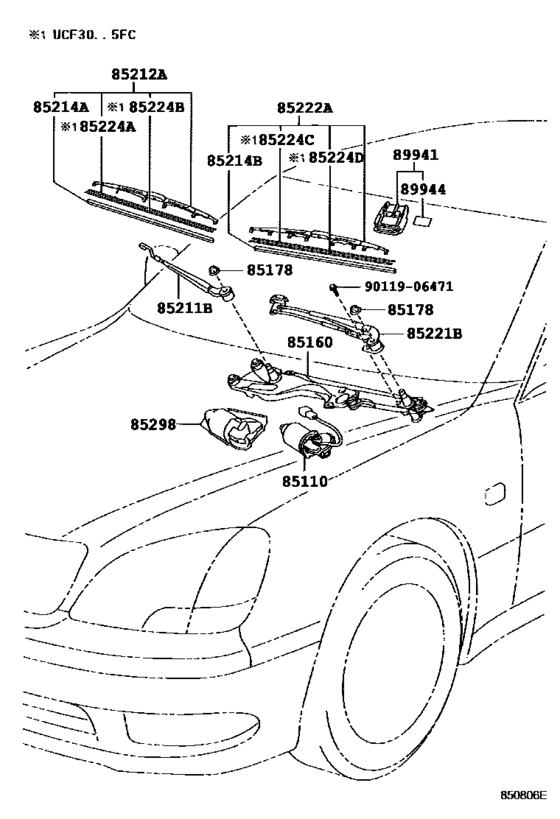

Windshield Wiper ([08.2000 - ] (0008- )) Diagram Toyota LEXUS LS
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- UCF30
- ENGINE
- 3UZFE
- DESTINATION
- USA
- Model
- LS430
- From
- 07.2003
- To
- 08.2006
- Gear Shift Type
- 6FC
- Vehicle Model
- LS430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85110
|
85110
85110-50110 Motor Assy, Windshield WiperWINDSHIELD WIPER [07.2003 -] UCF30 |
85110-50110 |
US $416.42 |
||
|
85160
|
85160
85150-50110 Link Assy, Windshield WiperWINDSHIELD WIPER [07.2003 -] UCF30 |
85150-50110 |
US $135.41 |
||
|
85178
|
85178
90176-10005 Nut (For Front Wiper Arm Setting)[07.2003 -] UCF30 |
90176-10005 |
from US $1.05 |
||
|
85211B
|
85211B
85211-50100 Arm, Front Wiper, RhFR WIPER, RH [07.2003 -] UCF30 |
85211-50100 |
US $74.95 |
||
|
85212A
|
85212A
85212-50050 Blade, Fr Wiper, RhFR WIPER, RH [07.2003 - 07.2006] UCF30 |
85212-50050 |
US $26.35 |
||
| replacement | |||||
|
85212A
|
85212A
85212-50051 Blade, Fr Wiper, RhFR WIPER, RH [07.2003 - 07.2006] UCF30 |
85212-50051 |
US $26.35 |
||
|
85212A
|
85212A
85212-50051 Blade, Fr Wiper, RhFR WIPER, RH [08.2006 -] UCF30 |
85212-50051 |
US $26.35 |
||
|
85214A
|
85214A
85214-50060
Rubber, Wiper, Lh
[07.2003 - 07.2006] UCF30 |
85214-50060 |
— | ||
| replacement | |||||
|
85214A
|
85214A
85214-50061 Rubber, Wiper, Rh[07.2003 - 07.2006] UCF30 |
85214-50061 |
from US $8.50 |
||
|
85214A
|
85214A
85214-50061 Rubber, Wiper, Rh[08.2006 -] UCF30 |
85214-50061 |
from US $8.50 |
||
|
85214B
|
85214B
85214-50100 Rubber, Wiper, Rh[07.2003 -] UCF30 |
85214-50100 |
from US $13.34 |
||
|
85221B
|
85221B
85221-50090 Arm, Front Wiper, LhFR WIPER, LH [07.2003 -] UCF30 |
85221-50090 |
US $60.98 |
||
|
85222A
|
85222A
85222-50040 Blade, Fr Wiper, LhFR WIPER, LH [07.2003 -] UCF30 |
85222-50040 |
from US $53.04 |
||
|
85298
|
85298
85111-50040 Cover, Wiper MotorWIPER MOTOR [07.2003 -] UCF30 |
85111-50040 |
US $13.98 |
||
|
89941
|
89941
89941-50021 Sensor, Rain[07.2003 -] UCF30 |
89941-50021 |
US $495.04 |
||
|
89944
|
89944
89944-50011 Tape, Rain Sensor[07.2003 -] UCF30 |
89944-50011 |
from US $19.48 |
||
|
9011906471
|
9011906471
90119-06471 New Genuine Part |
90119-06471 |
US $1.92 |
||
