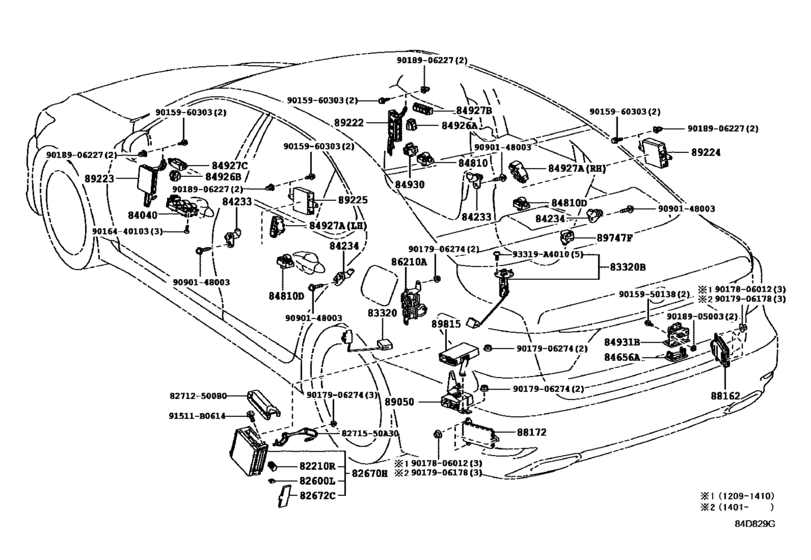

Switch & Relay & Computer ([09.2012 - ] DOOR,ROOF,FLOOR & LUGGAGE (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- USF40
- ENGINE
- 1URFSE
- TRANSMISSION
- ATM
- Model
- LS460
- From
- 09.2012
- Vehicle Model
- LS460
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210R
|
82210R
90982-08295 Fusible Link[09.2012 -] USF4# |
90982-08295 |
from US $6.24 |
||
|
82600L
|
82600L
90982-09019 Instrument Panel Fuse[09.2012 -] USF4# 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600L
|
82600L
90982-09021 Fusible Link[09.2012 -] USF4# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600L
|
82600L
90982-09022 Instrument Panel Fuse[09.2012 -] USF4# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600L
|
82600L
90982-09023 Instrument Panel Fuse[09.2012 -] USF4# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600L
|
82600L
90982-09025 Instrument Panel Fuse[09.2012 -] USF4# 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82670H
|
82670H
82670-50170 Block Assy, Luggage Room Junction[09.2012 -] USF41,46; USF40,45 VERSION C; USF40,45 VERSION L |
82670-50170 |
US $471.74 |
||
|
82670H
|
82670H
82670-50190 Block Assy, Luggage Room Junction[09.2012 -] USF40,45 |
82670-50190 |
US $471.74 |
||
|
82672C
|
82672C
82672-50340 Cover, Junction Block[09.2012 -] USF4# |
82672-50340 |
US $4.80 |
||
|
83320
|
83320
83320-50100 Gage Assy, Fuel Sender[09.2012 -] USF4# |
83320-50100 |
from US $54.69 |
||
|
83320B
|
83320B
83320-80438 Gage Assy, Fuel Sender, No.2[09.2012 -] USF4# |
83320-80438 |
from US $36.69 |
||
|
84040
|
84040
84040-50150
Master Switch Assy,multiplex Network
[09.2012 - 09.2013] USF4# |
84040-50150 |
— | ||
| replacement | |||||
|
84040
|
84040
84040-50170
Master Switch Assy,multiplex Network
[09.2012 - 09.2013] USF4# |
84040-50170 |
— | ||
|
84040
|
84040
84040-50170
Master Switch Assy,multiplex Network
[09.2013 -] USF4# |
84040-50170 |
— | ||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[09.2012 -] USF4# |
84231-50190 |
from US $10.56 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[09.2012 -] USF4# |
84231-50190 |
from US $10.56 |
||
|
84656A
|
84656A
84656-30110 Bezel, Switch[09.2012 -] USF41,46; USF40,45 VERSION C; USF40,45 VERSION L |
84656-30110 |
from US $6.24 |
||
|
84810
|
84810
84810-50030 Switch Assy, Power Window Regulator[09.2012 -] USF4# |
84810-50030 |
US $45.14 |
||
|
84810D
|
84810D
84810-50030 Switch Assy, Power Window Regulator[09.2012 -] USF4# |
84810-50030 |
US $45.14 |
||
|
84926A
|
84926A
84926-50110 Switch, Height Adjustable Anchor[09.2012 -] USF4# |
84926-50110 |
US $31.16 |
||
|
84926B
|
84926B
84926-50100 Switch, Height Adjustable Anchor[09.2012 -] USF4# |
84926-50100 |
US $31.16 |
||
|
84927A
|
84927A
84927-50160 Switch, Rear Seat Memory[09.2012 -] USF4# VERSION L,LH; USF41,46 EXECUTIVE PACKAGE(4SEAT),LH; USF41,46 EXECUTIVE PACKAGE(5SEAT),LH |
84927-50160 |
US $59.99 |
||
|
84927A
|
84927A
84927-50170 Switch, Rear Seat Memory[09.2012 -] USF4# VERSION L,RH; USF41,46 EXECUTIVE PACKAGE(4SEAT),RH; USF41,46 EXECUTIVE PACKAGE(5SEAT),RH |
84927-50170 |
US $59.99 |
||
|
84927B
|
84927B
84927-50150 Switch, Seat Memory[09.2012 -] USF4# |
84927-50150 |
US $59.99 |
||
|
84927C
|
84927C
84927-50140 Switch, Seat Memory[09.2012 -] USF4# |
84927-50140 |
US $59.99 |
||
|
84930
|
84930
84930-50070 Switch Assy, Door Control[09.2012 -] USF4# |
84930-50070 |
US $35.96 |
||
|
84931B
|
84931B
84930-50050 Switch, Door Control[09.2012 -] USF41,46; USF40,45 VERSION C; USF40,45 VERSION L |
84930-50050 |
from US $46.06 |
||
|
86210A
|
86210A
86210-50060
Inverter Assy, Voltage
[09.2012 -] USF4# ACCESSORY CONNECTOR-WITH(AC100V/120V) |
86210-50060 |
— | ||
|
88162
|
88162
88162-0W040 Sensor, Blind Spot Monitor, Rh[09.2012 - 09.2013] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); USF40,41,45 BLIND SPOT MONITOR-WITH |
88162-0W040 |
US $992.99 |
||
|
88162
|
88162
88162-0W160 Sensor, Blind Spot Monitor, Rh[09.2013 - 10.2014] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); USF40,41,45 BLIND SPOT MONITOR-WITH |
88162-0W160 |
US $992.99 |
||
|
88162
|
88162
88162-0W330 Sensor, Blind Spot Monitor, Rh[10.2014 -] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
88162-0W330 |
US $992.99 |
||
|
88172
|
88172
88162-0W040 Sensor, Blind Spot Monitor, Rh[09.2012 - 09.2013] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); USF40,41,45 BLIND SPOT MONITOR-WITH |
88162-0W040 |
US $992.99 |
||
|
88172
|
88172
88162-0W160 Sensor, Blind Spot Monitor, Rh[09.2013 - 10.2014] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT); USF40,41,45 BLIND SPOT MONITOR-WITH |
88162-0W160 |
US $992.99 |
||
|
88172
|
88172
88162-0W330 Sensor, Blind Spot Monitor, Rh[10.2014 -] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
88162-0W330 |
US $992.99 |
||
|
89050
|
89050
89050-50020 Computer Assy, Parking Brake[09.2012 -] USF4# |
89050-50020 |
from US $476 |
||
|
89222
|
89222
89223-50390
Computer, Multiplex Network Door, Front Rh
[09.2012 - 09.2013] USF4# MARK = RC |
89223-50390 |
— | ||
| replacement | |||||
|
89222
|
89222
89223-50370
Computer, Multiplex Network Door, Front Rh
[09.2012 - 09.2013] USF4# MARK = RC |
89223-50370 |
— | ||
|
89222
|
89222
89223-50430
Computer, Multiplex Network Door, Front Rh
[09.2013 -] USF4# MARK = RR |
89223-50430 |
— | ||
|
89223
|
89223
89222-50390
Computer, Multiplex Network Door, Front Lh
[09.2012 - 09.2013] USF4# MARK = LC |
89222-50390 |
— | ||
| replacement | |||||
|
89223
|
89223
89222-50370
Computer, Multiplex Network Door, Front Lh
[09.2012 - 09.2013] USF4# MARK = LC |
89222-50370 |
— | ||
|
89223
|
89223
89222-50430
Computer, Multiplex Network Door, Front Lh
[09.2013 -] USF4# |
89222-50430 |
— | ||
|
89224
|
89224
89224-50160 Computer, Multiplex Network Door, Rear Rh[09.2012 -] USF4# |
89224-50160 |
US $241.70 |
||
|
89224
|
89224
89224-50180 Computer, Multiplex Network Door, Rear Rh[09.2012 -] USF4# VERSION L; USF41,46 EXECUTIVE PACKAGE(4SEAT); USF41,46 EXECUTIVE PACKAGE(5SEAT) |
89224-50180 |
from US $241.70 |
||
|
89225
|
89225
89225-50080 Computer, Multiplex Network Door, Rear Lh[09.2012 -] USF4# |
89225-50080 |
US $241.70 |
||
|
89225
|
89225
89225-50100 Computer, Multiplex Network Door, Rear Lh[09.2012 -] USF4# VERSION L; USF41,46 EXECUTIVE PACKAGE(4SEAT); USF41,46 EXECUTIVE PACKAGE(5SEAT) |
89225-50100 |
US $241.70 |
||
|
89747F
|
89747F
893B0-50010
Buzzer, Blind Spot Monitor
[09.2012 -] USF4# BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
893B0-50010 |
— | ||
|
89747F
|
89747F
893B0-50020 Buzzer, Blind Spot Monitor[09.2012 -] USF4# |
893B0-50020 |
US $17.04 |
||
|
89815
|
89815
89815-50050 Computer, Seat Belt Control[09.2012 -] USF4# PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB); USF41,46 PRE-COLLISION SYSTEM-WITH(*PB) |
89815-50050 |
US $569.30 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.70 |
||
|
8271550A30
|
8271550A30
82715-50A30
Bracket,wiring Harness Clamp
|
82715-50A30 |
— | ||
|
8271250080
|
8271250080
82712-50080
Hose, Suction
|
82712-50080 |
— | ||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017806012
|
9017806012
90178-06012 NUT FLANGE |
90178-06012 |
from US $0.82 |
||
|
9017906178
|
9017906178
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
