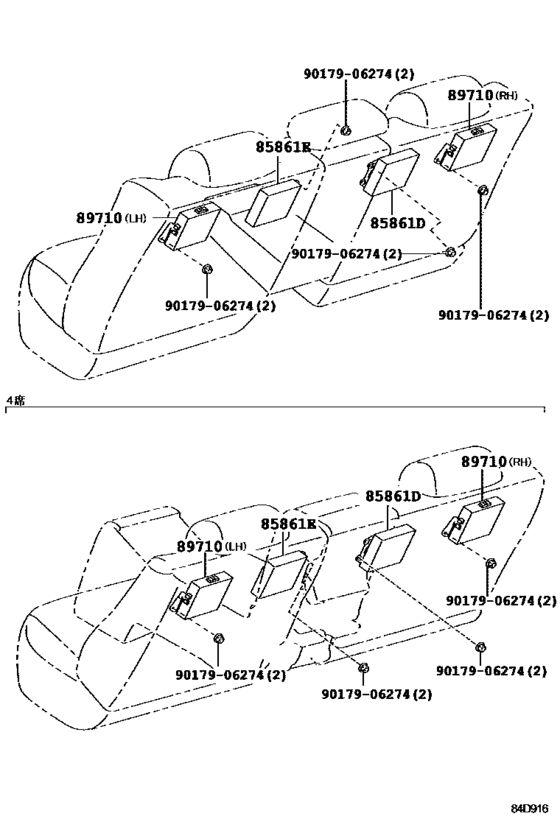

Switch & Relay & Computer ([09.2012 - ] ﾘﾔ ｼｰﾄ (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- Japan
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85861D
|
85861D
85861-50340
Computer, Seat Climate Control, Rear Rh
[09.2012 - 09.2013] UVF46; UVF45 “ｖｅｒｓｉｏｎ Ｌ” |
85861-50340 |
— | ||
|
85861D
|
85861D
85861-50390
Computer, Seat Climate Control, Rear Rh
[09.2013 -] UVF46; UVF45 “ｖｅｒｓｉｏｎ Ｌ” |
85861-50390 |
— | ||
|
85861E
|
85861E
85861-50350
Computer, Seat Climate Control, Rear Lh
[09.2012 - 09.2013] UVF46; UVF45 “ｖｅｒｓｉｏｎ Ｌ” |
85861-50350 |
— | ||
|
85861E
|
85861E
85861-50400
Computer, Seat Climate Control, Rear Lh
[09.2013 -] UVF46; UVF45 “ｖｅｒｓｉｏｎ Ｌ” |
85861-50400 |
— | ||
|
89710
|
89710
89710-50250 Computer Assy, Position Control[09.2012 -] UVF46 “ＥＸＥＣＵＴＩＶＥ ｐａｃｋａｇｅ（４人乗り）”,右側; UVF46 “ＥＸＥＣＵＴＩＶＥ ｐａｃｋａｇｅ（５人乗り）”,右側 |
89710-50250 |
US $550.37 |
||
|
89710
|
89710
89710-50260 Computer Assy, Position Control[09.2012 -] UVF46 “ＥＸＥＣＵＴＩＶＥ ｐａｃｋａｇｅ（４人乗り）”,左側; UVF46 “ＥＸＥＣＵＴＩＶＥ ｐａｃｋａｇｅ（５人乗り）”,左側 |
89710-50260 |
US $550.37 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.72 |
