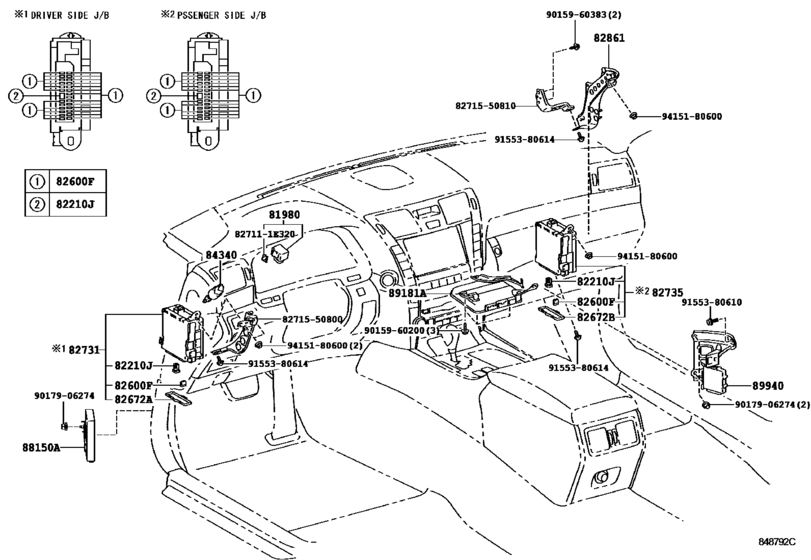

Switch & Relay & Computer ([04.2007 - ] COWL (0704- )) Diagram Toyota LEXUS LS
- Year
- 2007 - 2012
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- Model
- LS600L Hybrid
- From
- 04.2007
- To
- 09.2012
- Vehicle Model
- LS600L Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[11.2009 -] UVF46 |
81980-30170 |
from US $52.59 |
||
|
81980
|
81980
81980-50042
Flasher Assy, Turn Signal
[04.2007 - 09.2008] UVF46 KOREA SPEC |
81980-50042 |
— | ||
|
81980
|
81980
81980-50061
Flasher Assy, Turn Signal
[04.2007 - 09.2008] UVF46 |
81980-50061 |
— | ||
|
82210J
|
82210J
90982-08294 Fusible Link[04.2007 - 09.2008] UVF46 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[04.2007 - 09.2008] UVF46 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[04.2007 - 09.2008] UVF46 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09015 Fuse, Fuse Block[04.2007 - 09.2008] UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
90982-09015 |
from US $1.13 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2007 - 09.2008] UVF46 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2008 - 11.2009] UVF46 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82672A
|
82672A
82672-50240 Cover, Junction Block[04.2007 - 09.2008] UVF46 |
82672-50240 |
US $3.49 |
||
|
82672A
|
82672A
82672-50300 Cover, Junction BlockJUNCTION BLOCK [11.2009 -] UVF46 |
82672-50300 |
US $4.80 |
||
|
82672B
|
82672B
82672-50250 Cover, Junction Block[04.2007 - 09.2008] UVF46 |
82672-50250 |
US $4.22 |
||
|
82672B
|
82672B
82672-50251 Cover, Junction Block[09.2008 - 11.2009] UVF46 |
82672-50251 |
US $4.80 |
||
|
82672B
|
82672B
82672-50310 Cover, Junction BlockJUNCTION BLOCK [11.2009 -] UVF46 |
82672-50310 |
US $4.80 |
||
|
82731
|
82731
82730-50510
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 CANADA SPEC |
82730-50510 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50512
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 CANADA SPEC |
82730-50512 |
— | ||
|
82731
|
82731
82730-50511
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 CANADA SPEC |
82730-50511 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50512
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 CANADA SPEC |
82730-50512 |
— | ||
|
82731
|
82731
82730-50512
Block, Driver Side Junction
[09.2008 - 11.2009] UVF46 CANADA SPEC |
82730-50512 |
— | ||
|
82731
|
82731
82730-50520
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 USA POSSESSIONS SPEC |
82730-50520 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50522
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 USA POSSESSIONS SPEC |
82730-50522 |
— | ||
|
82731
|
82731
82730-50521
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 USA POSSESSIONS SPEC |
82730-50521 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50522
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 USA POSSESSIONS SPEC |
82730-50522 |
— | ||
|
82731
|
82731
82730-50522
Block, Driver Side Junction
[09.2008 - 11.2009] UVF46 USA POSSESSIONS SPEC |
82730-50522 |
— | ||
|
82731
|
82731
82730-50530
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 KOREA SPEC |
82730-50530 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50532
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 KOREA SPEC |
82730-50532 |
— | ||
|
82731
|
82731
82730-50531
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 KOREA SPEC |
82730-50531 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50532
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 KOREA SPEC |
82730-50532 |
— | ||
|
82731
|
82731
82730-50532
Block, Driver Side Junction
[09.2008 - 11.2009] UVF46 KOREA SPEC |
82730-50532 |
— | ||
|
82731
|
82731
82730-50540
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 |
82730-50540 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50542
Block, Driver Side Junction
[04.2007 - 06.2007] UVF46 |
82730-50542 |
— | ||
|
82731
|
82731
82730-50541
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 |
82730-50541 |
— | ||
| replacement | |||||
|
82731
|
82731
82730-50542
Block, Driver Side Junction
[07.2007 - 09.2008] UVF46 |
82730-50542 |
— | ||
|
82731
|
82731
82730-50542
Block, Driver Side Junction
[09.2008 - 11.2009] UVF46 |
82730-50542 |
— | ||
|
82731
|
82731
82730-50750
Block, Driver Side Junction
[11.2009 -] UVF46 |
82730-50750 |
— | ||
|
82731
|
82731
82730-50760
Block, Driver Side Junction
[11.2009 -] UVF46 CANADA SPEC |
82730-50760 |
— | ||
|
82731
|
82731
82730-50770
Block, Driver Side Junction
[11.2009 -] UVF46 USA POSSESSIONS SPEC |
82730-50770 |
— | ||
|
82731
|
82731
82730-50780
Block, Driver Side Junction
[11.2009 -] UVF46 KOREA SPEC |
82730-50780 |
— | ||
|
82735
|
82735
82730-50490 Block, Passenger Side Junction[04.2007 - 09.2008] UVF46 |
82730-50490 |
US $266.45 |
||
|
82735
|
82735
82730-50700 Block, Passenger Side Junction[09.2008 - 11.2009] UVF46 |
82730-50700 |
US $218.40 |
||
|
82735
|
82735
82730-50740 Block, Passenger Side JunctionPASSENGER SIDE JUNCTION [11.2009 -] UVF46 |
82730-50740 |
US $218.40 |
||
|
82861
|
82861
82861-50010
Bracket, Computer Integration, No.1
[04.2007 - 09.2008] UVF46 |
82861-50010 |
— | ||
|
84340
|
84340
84340-30110 Switch Assy, Stop Lamp[04.2007 - 09.2008] UVF46 |
84340-30110 |
from US $21.26 |
||
|
88150A
|
88150A
88150-50030
Computer Assy, Driving Support
[04.2007 - 09.2008] UVF46 PRE-COLLISION SYSTEM-WITH(*PSB); UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
88150-50030 |
— | ||
|
88150A
|
88150A
88150-50050
Computer Assy, Driving Support
[09.2008 - 11.2009] UVF46 PRE-COLLISION SYSTEM-WITH(*PSB); UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
88150-50050 |
— | ||
|
88150A
|
88150A
88150-50080
Computer Assy, Driving Support
[11.2009 -] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB); UVF46 PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *STC) |
88150-50080 |
— | ||
|
89181A
|
89181A
89181-50050
Computer, Steering Control
[04.2007 - 09.2008] UVF46 |
89181-50050 |
— | ||
| replacement | |||||
|
89181A
|
89181A
89181-50211
Computer, Steering Control
[04.2007 - 09.2008] UVF46 |
89181-50211 |
— | ||
|
89181A
|
89181A
89181-50070
Computer, Steering Control
[04.2007 - 09.2008] UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
89181-50070 |
— | ||
| replacement | |||||
|
89181A
|
89181A
89181-50390
Computer, Steering Control
[04.2007 - 09.2008] UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
89181-50390 |
— | ||
|
89181A
|
89181A
89181-50210 Computer, Steering ControlSTEERING CONTROL [11.2009 - 08.2011] UVF46 |
89181-50210 |
from US $765.86 |
||
| replacement | |||||
|
89181A
|
89181A
89181-50211
Computer, Steering Control
[11.2009 - 08.2011] UVF46 |
89181-50211 |
— | ||
|
89181A
|
89181A
89181-50211
Computer, Steering Control
[09.2011 -] UVF46 |
89181-50211 |
— | ||
|
89181A
|
89181A
89181-50230
Computer, Steering Control
[11.2009 - 08.2011] UVF46 VERSION S |
89181-50230 |
— | ||
| replacement | |||||
|
89181A
|
89181A
89181-50231
Computer, Steering Control
[11.2009 - 08.2011] UVF46 VERSION S |
89181-50231 |
— | ||
|
89181A
|
89181A
89181-50231
Computer, Steering Control
[09.2011 -] UVF46 VERSION S |
89181-50231 |
— | ||
|
89940
|
89940
89940-50170 Computer Assy, Headlamp Swivel[04.2007 - 09.2008] UVF46 HEADLAMP-LED & HALOGEN & *AFLS & INFRARED; UVF46 HEADLAMP-LED & HALOGEN & *AFLS |
89940-50170 |
US $637.73 |
||
|
89940
|
89940
89940-50190 Computer Assy, Headlamp Swivel[04.2007 - 09.2008] UVF46 |
89940-50190 |
US $637.73 |
||
|
89940
|
89940
89940-50210
Computer Assy, Headlamp Swivel
[04.2007 - 09.2008] UVF46 KOREA SPEC&HEADLAMP-DISCHARGE & HALOGEN |
89940-50210 |
— | ||
|
89940
|
89940
89940-50550
Computer Assy, Headlamp Swivel
[11.2009 - 09.2010] UVF46 USA POSSESSIONS SPEC; UVF46 KOREA SPEC |
89940-50550 |
— | ||
|
89940
|
89940
89940-50560
Computer Assy, Headlamp Swivel
[09.2010 -] UVF46 KOREA SPEC |
89940-50560 |
— | ||
|
89940
|
89940
89940-50580 Computer Assy, Headlamp SwivelHEADLAMP SWIVEL [11.2009 -] UVF46 |
89940-50580 |
US $337.79 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271550800
|
8271550800
82715-50800
Bracket,wiring Harness Clamp
|
82715-50800 |
— | ||
|
8271550810
|
8271550810
82715-50810
Bracket,wiring Harness Clamp
|
82715-50810 |
— | ||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
from US $1.60 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
