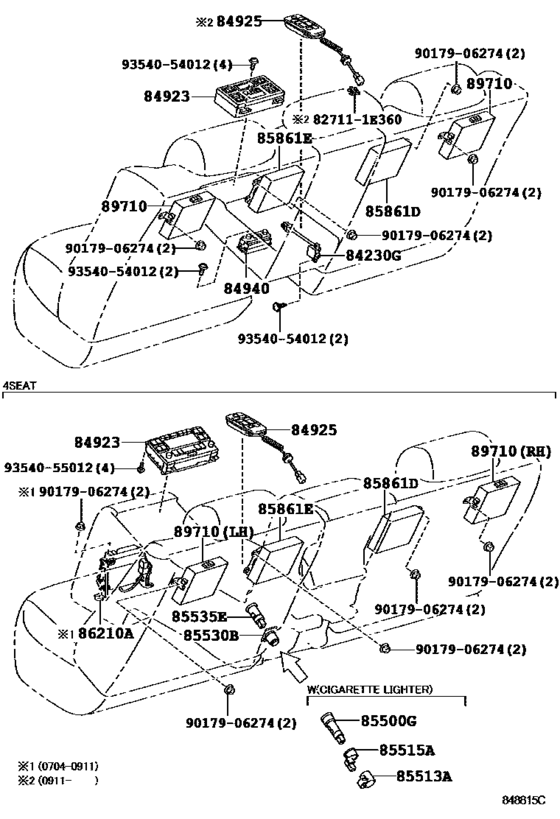

Switch & Relay & Computer ([04.2007 - ] REAR SEAT (0704- )) Diagram Toyota LEXUS LS
- Year
- 2007 - 2012
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- Model
- LS600L Hybrid
- From
- 04.2007
- To
- 09.2012
- Vehicle Model
- LS600L Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84230G
|
84230G
84230-50010 Switch Assy, Courtesy Lamp[04.2007 - 09.2008] UVF46; UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
84230-50010 |
US $11.94 |
||
|
84230G
|
84230G
84230-50020 Switch Assy, Courtesy LampCOURTESY LAMP [11.2009 - 01.2012] UVF46; UVF46 WITH(OTTOMAN:4 SEAT)&W(*DRP:3-PATTERN MEMORY & *RES MEMORY)&INTERIOR UPGRADE PACKA GE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V)&REAR SEAT ADJUSTER-OTTOMAN; UVF46 WITH(OTTOMAN:4 SEAT)&W(*DRP:3-PATTERN MEMORY & *RE |
84230-50020 |
US $11.94 |
||
|
84923
|
84923
84923-50110 Switch, Rear Power SeatREAR POWER SEAT [04.2007 - 09.2008] UVF46 |
84923-50110 |
US $179.09 |
||
|
84923
|
84923
84923-50120
Switch, Rear Power Seat
[04.2007 - 09.2008] UVF46 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
84923-50120 |
— | ||
|
84923
|
84923
84923-50140
Switch, Rear Power Seat
[04.2007 - 09.2008] UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARA TE W/POWER SLIDE |
84923-50140 |
— | ||
|
84923
|
84923
84923-50160
Switch, Rear Power Seat
[04.2007 - 09.2008] UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
84923-50160 |
— | ||
| replacement | |||||
|
84923
|
84923
84923-50200
Switch, Rear Power Seat
[04.2007 - 09.2008] UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
84923-50200 |
— | ||
|
84923
|
84923
84923-50200
Switch, Rear Power Seat
[09.2008 - 11.2009] UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN |
84923-50200 |
— | ||
|
84923
|
84923
84923-50240
Switch, Rear Power Seat
[11.2009 - 09.2012] UVF46 WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE |
84923-50240 |
— | ||
|
84923
|
84923
84923-50270 Switch, Rear Power SeatREAR POWER SEAT [11.2009 - 09.2012] UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+AC C SOCKET:DC12V); UVF46 WITH(OTTOMAN:4 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CI GARETTE LIGHTER) |
84923-50270 |
US $1,485.12 |
||
|
84923
|
84923
84923-50280 Switch, Rear Power SeatREAR POWER SEAT [11.2009 - 09.2012] UVF46 WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE ) |
84923-50280 |
US $1,256.53 |
||
|
84925
|
84925
84925-50010 Switch, Seat VibratorSEAT VIBRATOR [04.2007 - 09.2008] UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V)&REAR SEAT ADJUSTER-OTTOMAN; UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE)&REAR SEAT ADJUSTER-OTTOMAN |
84925-50010 |
US $430.98 |
||
|
84925
|
84925
84925-50030
Switch, Seat Vibrator
[11.2009 - 09.2012] UVF46 WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V); UVF46 WITH(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER) |
84925-50030 |
— | ||
|
84925
|
84925
84925-50050 Switch, Seat VibratorSEAT VIBRATOR [11.2009 - 09.2010] UVF46 W(REAR POWER SEAT) & WITHOUT(REAR A/C) |
84925-50050 |
US $365.46 |
||
|
84925
|
84925
84925-50060
Switch, Seat Vibrator
[11.2009 - 09.2012] UVF46 WITH(OTTOMAN:5 SEAT)&REAR ARMREST-WITH(OTTOMAN:5SEAT+*RSE) |
84925-50060 |
— | ||
|
84940
|
84940
84940-50020 Switch Assy, CurtainCURTAIN [04.2007 - 09.2008] UVF46 |
84940-50020 |
US $250.43 |
||
|
84940
|
84940
84940-50030
Switch Assy, Curtain
[04.2007 - 09.2008] UVF46 WITH(REAR POWER SEAT)&REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE |
84940-50030 |
— | ||
|
84940
|
84940
84940-50040 Switch Assy, CurtainCURTAIN [11.2009 - 09.2012] UVF46 INTERIOR UPGRADE PACKAGE |
84940-50040 |
US $297.02 |
||
|
84940
|
84940
84940-50050 Switch Assy, Curtain[04.2007 - 09.2008] UVF46 WITH(REAR POWER SEAT)&INTERIOR PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-SEPARA TE W/POWER SLIDE |
84940-50050 |
US $297.02 |
||
|
85500G
|
85500G
85500-50070 Lighter Assy, Cigarette, Rear[04.2007 - 09.2008] UVF46 |
85500-50070 |
US $41.64 |
||
|
85500G
|
85500G
85500-50090
Lighter Assy, Cigarette, Rear
[04.2007 - 09.2008] UVF46 REAR ARMREST-W/OTTOMAN CIGARETTE) |
85500-50090 |
— | ||
|
85513A
|
85513A
85513-28010 Cover, Cigarette Lighter[04.2007 - 09.2008] UVF46 |
85513-28010 |
from US $2.57 |
||
|
85515A
|
85515A
85515-50020 Stay, Cigarette Lighter Bezel[04.2007 - 09.2008] UVF46 |
85515-50020 |
US $8.80 |
||
|
85530B
|
85530B
85530-42010 Socket Assy, Power Outlet, No.1[04.2007 - 09.2008] UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V) |
85530-42010 |
from US $26.60 |
||
|
85530B
|
85530B
85530-50070 Socket Assy, Power Outlet, Rear No.1POWER POINT, REAR [11.2009 - 09.2012] UVF46 |
85530-50070 |
US $31.30 |
||
|
85535E
|
85535E
85535-50030
Cover, Power Outlet Socket, Rear
[04.2007 - 09.2008] UVF46 REAR ARMREST-WITH(W/OTTOMAN 12V) |
85535-50030 |
— | ||
|
85535E
|
85535E
85535-50060-A0
Cover, Power Outlet Socket, No.2
[11.2009 - 09.2012] UVF46 MELLOW WHITE,TRIM01,05,07,08 |
85535-50060-A0 |
— | ||
|
85535E
|
85535E
85535-50060-A1
Cover, Power Outlet Socket, No.2
[11.2009 - 09.2012] UVF46 IVORY,TRIM00,02,06 |
85535-50060-A1 |
— | ||
|
85535E
|
85535E
85535-50060-A2
Cover, Power Outlet Socket, No.2
[11.2009 - 09.2012] UVF46 WATER WHITE,TRIM14,15 |
85535-50060-A2 |
— | ||
|
85535E
|
85535E
85535-50060-B0
Cover, Power Outlet Socket, No.2
[11.2009 - 09.2012] UVF46 LT.GRAY,TRIM10,11 |
85535-50060-B0 |
— | ||
|
85535E
|
85535E
85535-50060-C0 Cover, Power Outlet Socket, No.1POWER OUTLET SOCKET [11.2009 - 09.2012] UVF46 BLACK,TRIM2# |
85535-50060-C0 |
US $8.52 |
||
|
85861D
|
85861D
85861-50151
Computer, Seat Climate Control, Rear Rh
[08.2011 - 09.2012] UVF46 WITH(REAR POWER SEAT); UVF46 WITH(OTTOMAN:4 SEAT); UVF46 WITH(OTTOMAN:5 SEAT) |
85861-50151 |
— | ||
|
85861D
|
85861D
85861-50210
Computer, Seat Climate Control, Rear Rh
[04.2007 - 09.2007] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50210 |
— | ||
| replacement | |||||
|
85861D
|
85861D
85861-50271
Computer, Seat Climate Control, Rear Rh
[04.2007 - 09.2007] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50271 |
— | ||
|
85861D
|
85861D
85861-50211
Computer, Seat Climate Control, Rear Rh
[10.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50211 |
— | ||
| replacement | |||||
|
85861D
|
85861D
85861-50271
Computer, Seat Climate Control, Rear Rh
[10.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50271 |
— | ||
|
85861D
|
85861D
85861-50230
Computer, Seat Climate Control, Rear Rh
[04.2007 - 12.2007] UVF46 |
85861-50230 |
— | ||
| replacement | |||||
|
85861D
|
85861D
85861-50290
Computer, Seat Climate Control, Rear Rh
[04.2007 - 12.2007] UVF46 |
85861-50290 |
— | ||
|
85861D
|
85861D
85861-50231
Computer, Seat Climate Control, Rear Rh
[01.2008 - 09.2008] UVF46 |
85861-50231 |
— | ||
| replacement | |||||
|
85861D
|
85861D
85861-50290
Computer, Seat Climate Control, Rear Rh
[01.2008 - 09.2008] UVF46 |
85861-50290 |
— | ||
|
85861D
|
85861D
85861-50270
Computer, Seat Climate Control, Rear Rh
[09.2008 - 02.2009] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50270 |
— | ||
| replacement | |||||
|
85861D
|
85861D
85861-50271
Computer, Seat Climate Control, Rear Rh
[09.2008 - 02.2009] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50271 |
— | ||
|
85861D
|
85861D
85861-50271
Computer, Seat Climate Control, Rear Rh
[03.2009 - 11.2009] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50271 |
— | ||
|
85861D
|
85861D
85861-50290
Computer, Seat Climate Control, Rear Rh
[09.2008 - 11.2009] UVF46 |
85861-50290 |
— | ||
|
85861D
|
85861D
85861-50291
Computer, Seat Climate Control, Rear Rh
[08.2011 - 09.2012] UVF46 |
85861-50291 |
— | ||
|
85861E
|
85861E
85861-50161
Computer, Seat Climate Control, Rear Lh
[08.2011 - 09.2012] UVF46 WITH(REAR POWER SEAT); UVF46 WITH(OTTOMAN:4 SEAT); UVF46 WITH(OTTOMAN:5 SEAT) |
85861-50161 |
— | ||
|
85861E
|
85861E
85861-50220
Computer, Seat Climate Control, Rear Lh
[04.2007 - 09.2007] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50220 |
— | ||
| replacement | |||||
|
85861E
|
85861E
85861-50281
Computer, Seat Climate Control, Rear Lh
[04.2007 - 09.2007] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50281 |
— | ||
|
85861E
|
85861E
85861-50221
Computer, Seat Climate Control, Rear Lh
[10.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50221 |
— | ||
| replacement | |||||
|
85861E
|
85861E
85861-50281
Computer, Seat Climate Control, Rear Lh
[10.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50281 |
— | ||
|
85861E
|
85861E
85861-50240
Computer, Seat Climate Control, Rear Lh
[04.2007 - 12.2007] UVF46 |
85861-50240 |
— | ||
| replacement | |||||
|
85861E
|
85861E
85861-50300
Computer, Seat Climate Control, Rear Lh
[04.2007 - 12.2007] UVF46 |
85861-50300 |
— | ||
|
85861E
|
85861E
85861-50241
Computer, Seat Climate Control, Rear Lh
[01.2008 - 09.2008] UVF46 |
85861-50241 |
— | ||
| replacement | |||||
|
85861E
|
85861E
85861-50300
Computer, Seat Climate Control, Rear Lh
[01.2008 - 09.2008] UVF46 |
85861-50300 |
— | ||
|
85861E
|
85861E
85861-50280
Computer, Seat Climate Control, Rear Lh
[09.2008 - 02.2009] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50280 |
— | ||
| replacement | |||||
|
85861E
|
85861E
85861-50281
Computer, Seat Climate Control, Rear Lh
[09.2008 - 02.2009] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50281 |
— | ||
|
85861E
|
85861E
85861-50281
Computer, Seat Climate Control, Rear Lh
[03.2009 - 11.2009] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE; UVF46 REAR SEAT ADJUSTER-OTTOMAN |
85861-50281 |
— | ||
|
85861E
|
85861E
85861-50300
Computer, Seat Climate Control, Rear Lh
[09.2008 - 11.2009] UVF46 |
85861-50300 |
— | ||
|
85861E
|
85861E
85861-50301
Computer, Seat Climate Control, Rear Lh
[08.2011 - 09.2012] UVF46 |
85861-50301 |
— | ||
|
86210A
|
86210A
86210-50020
Inverter Assy, Voltage
[04.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-OTTOMAN |
86210-50020 |
— | ||
| replacement | |||||
|
86210A
|
86210A
86210-50040
Inverter Assy, Voltage
[04.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-OTTOMAN |
86210-50040 |
— | ||
|
86210A
|
86210A
86210-50040
Inverter Assy, Voltage
[09.2008 - 11.2009] UVF46 REAR SEAT ADJUSTER-OTTOMAN |
86210-50040 |
— | ||
|
86210A
|
86210A
86210-50060
Inverter Assy, Voltage
[11.2009 -] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V); UVF46 ACCESSORY CONNECTOR-WITH(AC100V/115V & VTR) |
86210-50060 |
— | ||
|
89710
|
89710
89710-50190 Computer Assy, Position Control[04.2007 - 09.2008] UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,LH |
89710-50190 |
US $371.28 |
||
|
89710
|
89710
89710-50200
Computer Assy, Position Control
[04.2007 - 09.2008] UVF46 WITH (OTTOMAN)&INTERIOR PACKAGE,RH |
89710-50200 |
— | ||
|
89710
|
89710
89710-50230 Computer Assy, Position ControlPOSITION CONTROL [11.2009 - 09.2012] UVF46 WITH(OTTOMAN:4 SEAT),LH; UVF46 WITH(OTTOMAN:5 SEAT),LH |
89710-50230 |
US $1,336.61 |
||
|
89710
|
89710
89710-50240 Computer Assy, Position ControlPOSITION CONTROL [11.2009 - 09.2012] UVF46 WITH(OTTOMAN:4 SEAT),RH; UVF46 WITH(OTTOMAN:5 SEAT),RH |
89710-50240 |
US $728 |
||
|
827111E360
|
827111E360
82711-1E360 Clamp, Wiring Harness |
82711-1E360 |
US $0.96 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9354055012
|
9354055012
93540-55012 SCREW, TAPPING |
93540-55012 |
US $0.96 |
||
