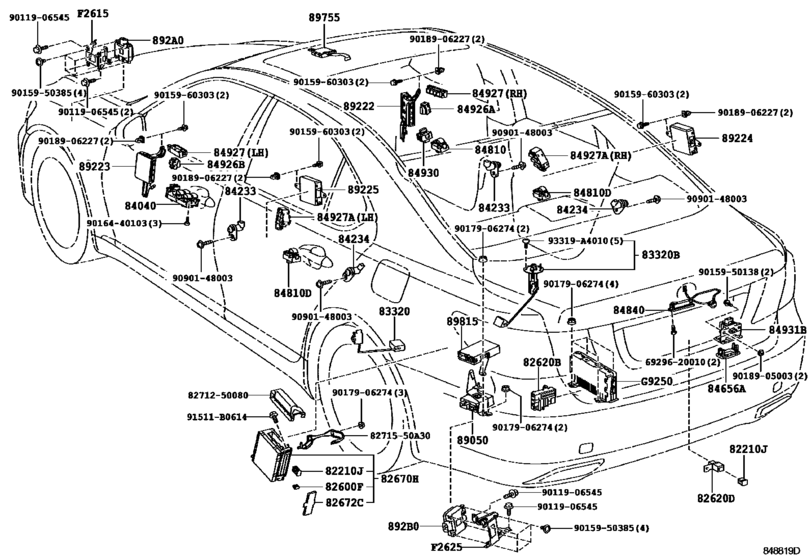

Switch & Relay & Computer ([04.2007 - 11.2009] DOOR,ROOF,FLOOR & LUGGAGE (0704-0911)) Diagram Toyota LEXUS LS
- Year
- 2007 - 2012
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- Model
- LS600L Hybrid
- From
- 04.2007
- To
- 09.2012
- Vehicle Model
- LS600L Hybrid
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
892A0
|
892A0
892A2-50010 Computer Assy, Front Active Stabilizer Control[04.2007 - 09.2008] UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
892A2-50010 |
US $1,578.96 |
||
|
892A0
|
892A0
892A2-50011
Computer Assy, Front Active Stabilizer Control
[11.2009 -] UVF46 VERSION S |
892A2-50011 |
— | ||
|
892B0
|
892B0
892A2-50010 Computer Assy, Front Active Stabilizer Control[04.2007 - 09.2008] UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
892A2-50010 |
US $1,578.96 |
||
|
892B0
|
892B0
892A2-50011
Computer Assy, Front Active Stabilizer Control
[11.2009 -] UVF46 VERSION S |
892A2-50011 |
— | ||
|
82210J
|
82210J
90982-08294 Fusible Link[04.2007 - 09.2008] UVF46 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08295 Fusible Link[04.2007 - 09.2008] UVF46 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08296 Fusible Link[04.2007 - 09.2008] UVF46 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82600F
|
82600F
90982-09015 Fuse, Fuse Block[04.2007 - 09.2008] UVF46 2A,MINI FUSE,AIR BAG MANUAL ON-OFF SWITCH-WITH(RETRO-CUT) |
90982-09015 |
from US $1.13 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[04.2007 - 09.2008] UVF46 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[04.2007 - 09.2008] UVF46 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2008 - 11.2009] UVF46 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82620B
|
82620B
82620-50120 Block Assy, Fusible Link[04.2007 - 09.2008] UVF46 |
82620-50120 |
US $128.13 |
||
|
82620D
|
82620D
82620-50160 Block Assy, Fusible Link[04.2007 - 09.2008] UVF46 |
82620-50160 |
US $170.35 |
||
|
82670H
|
82670H
82670-50120 Block Assy, Luggage Room Junction[04.2007 - 09.2008] UVF46 |
82670-50120 |
US $749.84 |
||
| replacement | |||||
|
82670H
|
82670H
82670-50121 Block Assy, Luggage Room Junction[04.2007 - 09.2008] UVF46 |
82670-50121 |
US $624.62 |
||
|
82670H
|
82670H
82670-50121 Block Assy, Luggage Room Junction[09.2008 - 11.2009] UVF46 |
82670-50121 |
US $624.62 |
||
|
82670H
|
82670H
82670-50140 Block Assy, Luggage Room JunctionLUGGAGE ROOM JUNCTION [11.2009 - 03.2010] UVF46 |
82670-50140 |
US $624.62 |
||
|
82670H
|
82670H
82670-50150 Block Assy, Luggage Room JunctionLUGGAGE ROOM JUNCTION [03.2010 -] UVF46 |
82670-50150 |
US $624.62 |
||
|
82672C
|
82672C
82672-50260 Cover, Junction Block[04.2007 - 09.2008] UVF46 |
82672-50260 |
US $3.49 |
||
|
82672C
|
82672C
82672-50290 Cover, Junction BlockJUNCTION BLOCK [11.2009 -] UVF46 |
82672-50290 |
US $4.80 |
||
|
83320
|
83320
83320-50120 Gage Assy, Fuel Sender[04.2007 - 09.2008] UVF46 |
83320-50120 |
US $36.69 |
||
|
83320B
|
83320B
83320-80441 Gage Assy, Fuel Sender, No.2[04.2007 - 09.2008] UVF46 |
83320-80441 |
US $50.60 |
||
|
84040
|
84040
84040-50120 Master Switch Assy,multiplex NetworkMULTIPLEX NETWORK [04.2007 - 09.2008] UVF46 |
84040-50120 |
from US $337.30 |
||
|
84233
|
84233
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[04.2007 - 09.2008] UVF46 |
84231-50190 |
from US $10.56 |
||
|
84234
|
84234
84231-50190 Switch Assy, Courtesy Lamp (For Front Door)[04.2007 - 09.2008] UVF46 |
84231-50190 |
from US $10.56 |
||
|
84656A
|
84656A
84656-30110 Bezel, Switch[04.2007 - 09.2008] UVF46; UVF46 USA POSSESSIONS SPEC |
84656-30110 |
from US $6.24 |
||
|
84810
|
84810
84810-50020 Switch Assy, Power Window Regulator[04.2007 - 09.2008] UVF46 |
84810-50020 |
from US $83.05 |
||
|
84810D
|
84810D
84810-50020 Switch Assy, Power Window Regulator[04.2007 - 09.2008] UVF46 |
84810-50020 |
from US $83.05 |
||
|
84840
|
84840
84840-21010 Switch Assy, Luggage Compartment Door Opening[04.2007 - 09.2008] UVF46 |
84840-21010 |
from US $56.09 |
||
|
84926A
|
84926A
84926-50090 Switch, Height Adjustable Anchor[04.2007 - 09.2008] UVF46 |
84926-50090 |
US $44.84 |
||
|
84926B
|
84926B
84926-50080 Switch, Height Adjustable Anchor[04.2007 - 09.2008] UVF46 |
84926-50080 |
US $44.84 |
||
|
84927
|
84927
84927-50080 Switch, Seat Memory[04.2007 - 09.2008] UVF46 LH |
84927-50080 |
US $80.08 |
||
|
84927
|
84927
84927-50090 Switch, Seat Memory[09.2008 - 11.2009] UVF46 RH |
84927-50090 |
US $80.08 |
||
|
84927A
|
84927A
84927-50120 Switch, Rear Seat Memory[04.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,LH; UVF46 REAR SEAT ADJUSTER-OTTOMAN,LH |
84927-50120 |
US $72.80 |
||
|
84927A
|
84927A
84927-50130 Switch, Rear Seat Memory[04.2007 - 09.2008] UVF46 REAR SEAT ADJUSTER-SEPARATE W/POWER SLIDE,RH; UVF46 REAR SEAT ADJUSTER-OTTOMAN,RH |
84927-50130 |
US $72.80 |
||
|
84930
|
84930
84930-50060 Switch Assy, Door Control[04.2007 - 09.2008] UVF46 |
84930-50060 |
US $42.37 |
||
|
84931B
|
84931B
84930-50050 Switch, Door Control[04.2007 - 09.2008] UVF46; UVF46 USA POSSESSIONS SPEC |
84930-50050 |
from US $46.06 |
||
|
89050
|
89050
89050-50010 Computer Assy, Parking Brake[04.2007 - 09.2008] UVF46 |
89050-50010 |
US $458.64 |
||
| replacement | |||||
|
89050
|
89050
89050-50020 Computer Assy, Parking Brake[04.2007 - 09.2008] UVF46 |
89050-50020 |
from US $476 |
||
|
89050
|
89050
89050-50020 Computer Assy, Parking Brake[09.2008 - 11.2009] UVF46 |
89050-50020 |
from US $476 |
||
|
89222
|
89222
89223-50270
Computer, Multiplex Network Door, Front Rh
[04.2007 - 09.2008] UVF46 |
89223-50270 |
— | ||
| replacement | |||||
|
89222
|
89222
89223-50300 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [04.2007 - 09.2008] UVF46 |
89223-50300 |
US $273.73 |
||
|
89222
|
89222
89223-50300 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [09.2008 - 11.2009] UVF46 |
89223-50300 |
US $273.73 |
||
|
89222
|
89222
89223-50330 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [11.2009 - 01.2010] UVF46 |
89223-50330 |
US $390.21 |
||
|
89222
|
89222
89223-50350
Computer, Multiplex Network Door, Front Rh
[01.2010 -] UVF46 |
89223-50350 |
— | ||
| replacement | |||||
|
89222
|
89222
89223-50330 Computer, Multiplex Network Door, Front RhMULTIPLEX NETWORK DOOR, FRONT RH [01.2010 -] UVF46 |
89223-50330 |
US $390.21 |
||
|
89223
|
89223
89222-50280 Computer, Multiplex Network Door, Front LhMULTIPLEX NETWORK DOOR, FRONT LH [04.2007 - 09.2008] UVF46 |
89222-50280 |
US $390.21 |
||
|
89223
|
89223
89222-50320
Computer, Multiplex Network Door, Front Lh
[11.2009 - 01.2010] UVF46 |
89222-50320 |
— | ||
|
89223
|
89223
89222-50350
Computer, Multiplex Network Door, Front Lh
[01.2010 -] UVF46 |
89222-50350 |
— | ||
| replacement | |||||
|
89223
|
89223
89222-50320
Computer, Multiplex Network Door, Front Lh
[01.2010 -] UVF46 |
89222-50320 |
— | ||
|
89224
|
89224
89224-50110 Computer, Multiplex Network Door, Rear Rh[04.2007 - 09.2008] UVF46 |
89224-50110 |
US $349.44 |
||
| replacement | |||||
|
89224
|
89224
89224-50121 Computer, Multiplex Network Door, Rear Rh[04.2007 - 09.2008] UVF46 |
89224-50121 |
US $390.21 |
||
|
89224
|
89224
89224-50121 Computer, Multiplex Network Door, Rear Rh[04.2007 - 09.2008] UVF46 WITH(REAR POWER SEAT)&WITH(REAR COOLER); UVF46 WITH (OTTOMAN)&WITH(REAR COOLER) |
89224-50121 |
US $390.21 |
||
|
89224
|
89224
89224-50130 Computer, Multiplex Network Door, Rear RhMULTIPLEX NETWORK DOOR, REAR RH [11.2009 -] UVF46 |
89224-50130 |
US $248.98 |
||
|
89224
|
89224
89224-50140 Computer, Multiplex Network Door, Rear RhMULTIPLEX NETWORK DOOR, REAR RH [11.2009 - 05.2011] UVF46 INTERIOR UPGRADE PACKAGE |
89224-50140 |
US $273.73 |
||
|
89224
|
89224
89224-50150 Computer, Multiplex Network Door, Rear Rh[05.2011 -] UVF46 INTERIOR UPGRADE PACKAGE |
89224-50150 |
US $273.73 |
||
| replacement | |||||
|
89224
|
89224
89224-50140 Computer, Multiplex Network Door, Rear RhMULTIPLEX NETWORK DOOR, REAR RH [05.2011 -] UVF46 INTERIOR UPGRADE PACKAGE |
89224-50140 |
US $273.73 |
||
|
89225
|
89225
89225-50030 Computer, Multiplex Network Door, Rear Lh[04.2007 - 09.2008] UVF46 |
89225-50030 |
US $349.44 |
||
| replacement | |||||
|
89225
|
89225
89225-50041 Computer, Multiplex Network Door, Rear Lh[04.2007 - 09.2008] UVF46 |
89225-50041 |
US $390.21 |
||
|
89225
|
89225
89225-50041 Computer, Multiplex Network Door, Rear Lh[04.2007 - 09.2008] UVF46 WITH(REAR POWER SEAT)&WITH(REAR COOLER); UVF46 WITH (OTTOMAN)&WITH(REAR COOLER) |
89225-50041 |
US $390.21 |
||
|
89225
|
89225
89225-50050 Computer, Multiplex Network Door, Rear LhMULTIPLEX NETWORK DOOR, REAR LH [11.2009 -] UVF46 |
89225-50050 |
US $248.98 |
||
|
89225
|
89225
89225-50060 Computer, Multiplex Network Door, Rear LhMULTIPLEX NETWORK DOOR, REAR LH [11.2009 - 05.2011] UVF46 INTERIOR UPGRADE PACKAGE |
89225-50060 |
US $273.73 |
||
|
89225
|
89225
89225-50070 Computer, Multiplex Network Door, Rear Lh[05.2011 -] UVF46 INTERIOR UPGRADE PACKAGE |
89225-50070 |
US $273.73 |
||
| replacement | |||||
|
89225
|
89225
89225-50060 Computer, Multiplex Network Door, Rear LhMULTIPLEX NETWORK DOOR, REAR LH [05.2011 -] UVF46 INTERIOR UPGRADE PACKAGE |
89225-50060 |
US $273.73 |
||
|
89755
|
89755
89755-0W111
Transmitter, Garage Door Opener
[04.2007 - 09.2008] UVF46; UVF46 KOREA SPEC; UVF46 KOREA SPEC&MOON ROOF-WITHOUT; UVF46 MOON ROOF-WITHOUT |
89755-0W111 |
— | ||
|
89815
|
89815
89815-50020 Computer, Seat Belt Control[04.2007 - 09.2008] UVF46 PRE-COLLISION SYSTEM-WITH(*PSB); UVF46 PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *PB) |
89815-50020 |
from US $754.21 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
93319A4010
|
93319A4010
93319-A4010 SCREW WWASHER |
93319-A4010 |
from US $0.70 |
||
|
8271550A30
|
8271550A30
82715-50A30
Bracket,wiring Harness Clamp
|
82715-50A30 |
— | ||
|
6929620010
|
6929620010
69296-20010 Screw, Door Inside Handle |
69296-20010 |
US $4.37 |
||
|
8271250080
|
8271250080
82712-50080
Hose, Suction
|
82712-50080 |
— | ||
|
9011906545
|
9011906545
90119-06545 BOLT WWASHER |
90119-06545 |
US $1.92 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9015950385
|
9015950385
90159-50385 New Genuine Part |
90159-50385 |
US $1.12 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.15 |
||
|
9018906227
|
9018906227
90189-06227 GROMMET SCREW |
90189-06227 |
from US $0.72 |
||
|
9090148003
|
9090148003
90901-48003 Screw Hex Lobular |
90901-48003 |
US $1.76 |
||
|
F2615
|
F2615
F2615-50010 Bracket, Front Active Stabilizer Computer[04.2007 - 09.2008] UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
F2615-50010 |
US $18.49 |
||
|
F2625
|
F2625
F2625-50011 Bracket, Rear Active Stabilizer Computer[04.2007 - 09.2008] UVF46 STABILIZER-ACTIVE STABILIZER SUSPENSION |
F2625-50011 |
US $14.56 |
||
|
G9250
|
G9250
G9250-50030 Converter Assy, Power Steering[04.2007 - 09.2008] UVF46 |
G9250-50030 |
US $1,485.12 |
||
|
G9250
|
G9250
G9250-50040 Converter Assy, Power SteeringPOWER STEERING [11.2009 -] UVF46 |
G9250-50040 |
US $1,116.75 |
||
