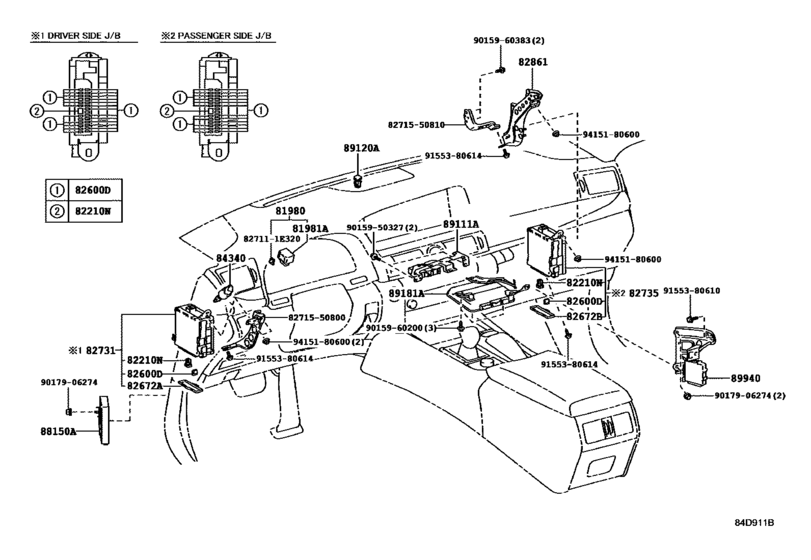

Switch & Relay & Computer ([09.2012 - ] COWL (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81980
|
81980
81980-30170 Flasher Assy, Turn Signal[09.2012 -] UVF46 |
81980-30170 |
from US $52.59 |
||
|
81981A
|
81981A
81980-50030 Flasher Assy, Turn Signal[09.2012 -] UVF46 |
81980-50030 |
from US $52.51 |
||
|
82210N
|
82210N
90982-08295 Fusible Link[09.2012 -] UVF46 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[09.2012 -] UVF46 5A,MINI FUSE |
90982-09019 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[09.2012 -] UVF46 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[09.2012 -] UVF46 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[09.2012 -] UVF46 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09024 Instrument Panel Fuse[09.2012 -] UVF46 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[09.2012 -] UVF46 30A,MINI FUSE |
90982-09025 |
from US $0.92 |
||
|
82672A
|
82672A
82672-50320 Cover, Junction Block[09.2012 -] UVF46 |
82672-50320 |
US $4.80 |
||
|
82672B
|
82672B
82672-50330 Cover, Junction Block[09.2012 -] UVF46 |
82672-50330 |
US $4.80 |
||
|
82731
|
82731
82730-50L10
Block, Driver Side Junction
[09.2012 - 09.2013] UVF46 CANADA SPEC |
82730-50L10 |
— | ||
|
82731
|
82731
82730-50L20
Block, Driver Side Junction
[09.2012 - 09.2013] UVF46 USA POSSESSION SPEC |
82730-50L20 |
— | ||
|
82731
|
82731
82730-50L30
Block, Driver Side Junction
[09.2012 - 09.2013] UVF46 KOREA SPEC |
82730-50L30 |
— | ||
|
82731
|
82731
82730-50L40
Block, Driver Side Junction
[09.2012 - 09.2013] UVF46 |
82730-50L40 |
— | ||
|
82731
|
82731
82730-50U10
Block, Driver Side Junction
[09.2013 - 10.2014] UVF46 CANADA SPEC |
82730-50U10 |
— | ||
|
82731
|
82731
82730-50U20
Block, Driver Side Junction
[09.2013 - 10.2014] UVF46 USA POSSESSION SPEC |
82730-50U20 |
— | ||
|
82731
|
82731
82730-50U30
Block, Driver Side Junction
[09.2013 - 10.2014] UVF46 KOREA SPEC |
82730-50U30 |
— | ||
|
82731
|
82731
82730-50U40
Block, Driver Side Junction
[09.2013 - 10.2014] UVF46 |
82730-50U40 |
— | ||
|
82731
|
82731
82730-5A200
Block, Driver Side Junction
[10.2014 - 09.2016] UVF46 CANADA SPEC |
82730-5A200 |
— | ||
|
82731
|
82731
82730-5A210
Block, Driver Side Junction
[10.2014 - 09.2016] UVF46 USA POSSESSION SPEC |
82730-5A210 |
— | ||
|
82731
|
82731
82730-5A220
Block, Driver Side Junction
[10.2014 - 09.2016] UVF46 KOREA SPEC |
82730-5A220 |
— | ||
|
82731
|
82731
82730-5A230
Block, Driver Side Junction
[10.2014 - 09.2016] UVF46 |
82730-5A230 |
— | ||
|
82735
|
82735
82730-50F10 Block, Passenger Side Junction[09.2012 -] UVF46 |
82730-50F10 |
US $471.74 |
||
|
82861
|
82861
82861-50010
Bracket, Computer Integration, No.1
[09.2012 -] UVF46 |
82861-50010 |
— | ||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[09.2012 -] UVF46 |
84340-30130 |
from US $42.10 |
||
|
88150A
|
88150A
88150-50090
Computer Assy, Driving Support
[09.2012 - 04.2013] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),P/N LABEL=8815050090; UVF46 PRE-COLLISION SYSTEM-WITH(*PB),P/N LABEL=8815050090 |
88150-50090 |
— | ||
| replacement | |||||
|
88150A
|
88150A
88150-50150
Computer Assy, Driving Support
[09.2012 - 04.2013] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),P/N LABEL=8815050090; UVF46 PRE-COLLISION SYSTEM-WITH(*PB),P/N LABEL=8815050090 |
88150-50150 |
— | ||
|
88150A
|
88150A
88150-50091
Computer Assy, Driving Support
[09.2013 - 10.2014] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),P/N LABEL=8815050091; UVF46 PRE-COLLISION SYSTEM-WITH(*PB),P/N LABEL=8815050091 |
88150-50091 |
— | ||
|
88150A
|
88150A
88150-50092
Computer Assy, Driving Support
[10.2014 - 09.2016] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),P/N LABEL=8815050092; UVF46 PRE-COLLISION SYSTEM-WITH(*PB),P/N LABEL=8815050092 |
88150-50092 |
— | ||
|
88150A
|
88150A
88150-50150
Computer Assy, Driving Support
[05.2013 - 09.2013] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),P/N LABEL=8815050150; UVF46 PRE-COLLISION SYSTEM-WITH(*PB),P/N LABEL=8815050150 |
88150-50150 |
— | ||
|
89111A
|
89111A
89100-50L10
Computer, Network Gateway, No.2
[10.2014 - 09.2016] UVF46; UVF46 KOREA SPEC |
89100-50L10 |
— | ||
|
89120A
|
89120A
89121-50020 Sensor, Automatic Light Control[09.2012 -] UVF46 |
89121-50020 |
from US $108.04 |
||
|
89181A
|
89181A
89181-50350
Computer, Steering Control
[09.2012 -] UVF46 |
89181-50350 |
— | ||
|
89940
|
89940
89940-50C20
Computer Assy, Headlamp Swivel
[09.2012 - 09.2013] UVF46 HEADLAMP-LED & *AFLS & *AHB |
89940-50C20 |
— | ||
|
89940
|
89940
89940-50C40 Computer Assy, Headlamp Swivel[09.2012 - 09.2013] UVF46 |
89940-50C40 |
US $281.01 |
||
|
89940
|
89940
89940-50F40 Computer Assy, Headlamp Swivel[09.2013 - 09.2016] UVF46 KOREA SPEC |
89940-50F40 |
US $254.80 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271550800
|
8271550800
82715-50800
Bracket,wiring Harness Clamp
|
82715-50800 |
— | ||
|
8271550810
|
8271550810
82715-50810
Bracket,wiring Harness Clamp
|
82715-50810 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9015960200
|
9015960200
90159-60200 SCREW |
90159-60200 |
from US $1.60 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
||
