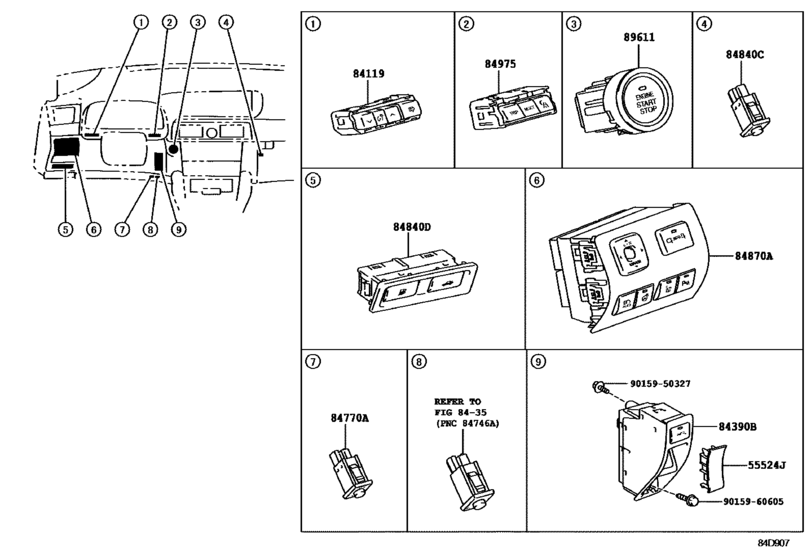

Switch & Relay & Computer ([09.2012 - ] INSTRUMENT PANEL (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55524J
|
55524J
55539-50050-A2
Cover, Switch Base Hole
[09.2012 -] UVF46 IVORY,TRIM0# |
55539-50050-A2 |
— | ||
|
55524J
|
55524J
55539-50050-C0
Cover, Switch Base Hole
[09.2012 -] UVF46 BLACK,TRIM1#,2#,4#,5# |
55539-50050-C0 |
— | ||
|
84119
|
84119
84119-50320
Rheostat, Light Control
[09.2012 -] UVF46 |
84119-50320 |
— | ||
|
84390B
|
84390B
84390-50050-A1
Switch Assy, Electric Parking Brake
[09.2012 -] UVF46 IVORY,TRIM0# |
84390-50050-A1 |
— | ||
|
84390B
|
84390B
84390-50050-C0
Switch Assy, Electric Parking Brake
[09.2012 -] UVF46 BLACK,TRIM1#,2#,4#,5# |
84390-50050-C0 |
— | ||
|
84770A
|
84770A
84770-50010 Switch Assy, Pre-Collision System Cancel[09.2012 - 09.2016] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB); UVF46 PRE-COLLISION SYSTEM-WITH(*PB) |
84770-50010 |
US $33.37 |
||
|
84840C
|
84840C
84840-24020 Switch Assy, Luggage Door Opening, Cancel[09.2012 -] UVF46 |
84840-24020 |
US $30.23 |
||
|
84840D
|
84840D
84840-50050-A1
Switch Assy, Luggage Door Opening
[09.2012 -] UVF46 IVORY,TRIM0# |
84840-50050-A1 |
— | ||
|
84840D
|
84840D
84840-50050-C0
Switch Assy, Luggage Door Opening
[09.2012 -] UVF46 BLACK,TRIM1#,2#,4#,5# |
84840-50050-C0 |
— | ||
|
84870A
|
84870A
84870-50750-A1
Switch Assy, Outer Mirror
[09.2012 - 09.2016] UVF46 IVORY,TRIM0# |
84870-50750-A1 |
— | ||
|
84870A
|
84870A
84870-50750-C0
Switch Assy, Outer Mirror
[09.2012 - 09.2016] UVF46 BLACK,TRIM1#,2#,4#,5# |
84870-50750-C0 |
— | ||
|
84870A
|
84870A
84870-50770-A1
Switch Assy, Outer Mirror
[09.2012 - 09.2013] UVF46 HEADLAMP-LED & *AFLS & *AHB&BLIND SPOT MONITOR SYSTEM-WITH,IVORY,TRIM0# |
84870-50770-A1 |
— | ||
|
84870A
|
84870A
84870-50770-C0
Switch Assy, Outer Mirror
[09.2012 - 09.2013] UVF46 HEADLAMP-LED & *AFLS & *AHB&BLIND SPOT MONITOR SYSTEM-WITH,BLACK,TRIM1#,2#,4#,5# |
84870-50770-C0 |
— | ||
|
84975
|
84975
84975-50050
Switch, Trip
[09.2012 -] UVF46 |
84975-50050 |
— | ||
|
84975
|
84975
84975-50080
Switch, Trip
[09.2012 - 09.2016] UVF46 NIGHT VIEW-VIEW ONLY |
84975-50080 |
— | ||
|
89611
|
89611
89611-50063 Switch, Push Start[09.2012 - 03.2016] UVF46 |
89611-50063 |
US $135.41 |
||
| replacement | |||||
|
89611
|
89611
89611-50064 Switch, Push Start[09.2012 - 03.2016] UVF46 |
89611-50064 |
US $122.30 |
||
|
89611
|
89611
89611-50064 Switch, Push Start[04.2016 -] UVF46 |
89611-50064 |
US $122.30 |
||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.72 |
||
|
9015960605
|
9015960605
90159-60605 New Genuine Part |
90159-60605 |
US $0.73 |
||
