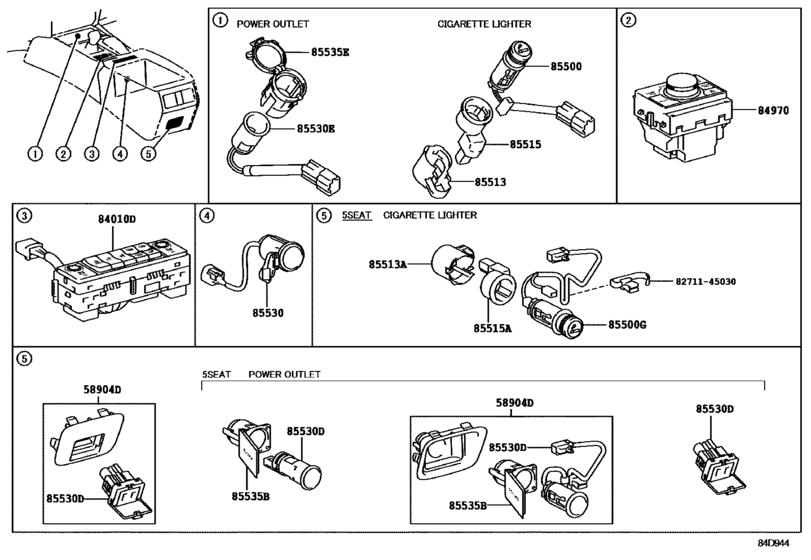

Switch & Relay & Computer ([09.2012 - ] FRONT CONSOLE (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58904D
|
58904D
58904-50150-A3
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 IVORY,TRIM0# |
58904-50150-A3 |
— | ||
|
58904D
|
58904D
58904-50150-B0
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 LT.GRAY,TRIM1# |
58904-50150-B0 |
— | ||
|
58904D
|
58904D
58904-50150-C1
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 BLACK,TRIM2#,4# |
58904-50150-C1 |
— | ||
|
58904D
|
58904D
58904-50150-F0
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 TOPAZ BROWN,TRIM5# |
58904-50150-F0 |
— | ||
|
58904D
|
58904D
58904-50190-A1
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),IVORY,TRIM0# |
58904-50190-A1 |
— | ||
|
58904D
|
58904D
58904-50190-B0
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),LT.GRAY,TRIM1# |
58904-50190-B0 |
— | ||
|
58904D
|
58904D
58904-50190-C1
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),BLACK,TRIM2#,4# |
58904-50190-C1 |
— | ||
|
58904D
|
58904D
58904-50190-F0
Panel Sub-Assy, Console Rear End, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),TOPAZ BROWN,TRIM5# |
58904-50190-F0 |
— | ||
|
84010D
|
84010D
84010-50350
Control & Panel Assy, Integration
[09.2012 - 09.2013] UVF46 |
84010-50350 |
— | ||
|
84010D
|
84010D
84010-50360 Control & Panel Assy, Integration[09.2012 - 09.2013] UVF46 EXECUTIVE PACKAGE(4SEAT); UVF46 EXECUTIVE PACKAGE(5SEAT) |
84010-50360 |
US $297.02 |
||
|
84010D
|
84010D
84010-50380
Control & Panel Assy, Integration
[09.2013 - 09.2016] UVF46 |
84010-50380 |
— | ||
|
84010D
|
84010D
84010-50390 Control & Panel Assy, Integration[09.2013 - 09.2016] UVF46 EXECUTIVE PACKAGE(4SEAT); UVF46 EXECUTIVE PACKAGE(5SEAT) |
84010-50390 |
US $361.09 |
||
|
84970
|
84970
84970-50300
Switch Assy, Combination
[09.2012 -] UVF46 |
84970-50300 |
— | ||
|
85500
|
85500
85500-50100 Lighter Assy, Cigarette[09.2012 - 09.2016] UVF46 EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH&ACCESSORY CONNECTOR-WITH(AC100V/12 0V)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE; UVF46 EXECUTI |
85500-50100 |
US $31.45 |
||
|
85500G
|
85500G
85500-50110 Lighter Assy, Cigarette, Rear[09.2012 - 09.2016] UVF46 CIGARETTE LIGHTER-WITH&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER); UVF46 ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
85500-50110 |
US $31.45 |
||
|
85513
|
85513
85513-28010 Cover, Cigarette Lighter[09.2012 - 09.2016] UVF46 EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH&ACCESSORY CONNECTOR-WITH(AC100V/12 0V)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE; UVF46 EXECUTI |
85513-28010 |
from US $2.57 |
||
|
85513A
|
85513A
85513-28010 Cover, Cigarette Lighter[09.2012 - 09.2016] UVF46 CIGARETTE LIGHTER-WITH&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER); UVF46 ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
85513-28010 |
from US $2.57 |
||
|
85515
|
85515
85515-50020 Stay, Cigarette Lighter Bezel[09.2012 - 09.2016] UVF46 EXECUTIVE PACKAGE(4SEAT)&CIGARETTE LIGHTER-WITH&ACCESSORY CONNECTOR-WITH(AC100V/12 0V)&ACCESSORY CONNECTOR(RR SEAT CONSOLE BOX)-WITH(CIGARETTE LIGHTER)&TELEVISION & DVD PLAYER-RR DISPLAY:ROOF & BD PLAYER:RR CONSOLE; UVF46 EXECUTI |
85515-50020 |
US $8.80 |
||
|
85515A
|
85515A
85515-50020 Stay, Cigarette Lighter Bezel[09.2012 - 09.2016] UVF46 CIGARETTE LIGHTER-WITH&ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER); UVF46 ACCESSORY CONNECTOR-WITH(CIGARETTE LIGHTER) |
85515-50020 |
US $8.80 |
||
|
85530
|
85530
85530-50090 Socket Assy, Power Outlet, No.1[09.2012 - 10.2014] UVF46 |
85530-50090 |
US $26.06 |
||
|
85530
|
85530
85530-50140 Socket Assy, Power Outlet, No.1[10.2014 -] UVF46 |
85530-50140 |
US $23.59 |
||
|
85530D
|
85530D
85530-42010 Socket Assy, Power Outlet, No.1[09.2012 - 09.2016] UVF46 EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH&TELEVISION & DVD PLAYER-RR DISPLAY :CONSOLE & BD PLAYER:CTR CONSO; UVF46 EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:CONSOLE & BD PLAYER:CT R CONSO |
85530-42010 |
from US $26.60 |
||
|
85530D
|
85530D
85530-50100 Socket Assy, Power Outlet, No.2[09.2012 - 09.2016] UVF46 |
85530-50100 |
US $23.59 |
||
|
85530D
|
85530D
85530-50130-A0
Socket Assy, Power Outlet, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),IVORY,TRIM0# |
85530-50130-A0 |
— | ||
|
85530D
|
85530D
85530-50130-B0
Socket Assy, Power Outlet, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),LT.GRAY,TRIM10 |
85530-50130-B0 |
— | ||
|
85530D
|
85530D
85530-50130-C0
Socket Assy, Power Outlet, No.2
[09.2012 - 10.2014] UVF46 CANADA SPEC&EXECUTIVE PACKAGE(5SEAT)&ACCESSORY CONNECTOR-WITH(AC100V/120V),BLACK,T RIM1#,2#,4#,5# |
85530-50130-C0 |
— | ||
|
85530D
|
85530D
85530-50130-F0
Socket Assy, Power Outlet, No.2
[09.2012 - 09.2016] UVF46 ACCESSORY CONNECTOR-WITH(AC100V/120V),TOPAZ BROWN,TRIM50,51 |
85530-50130-F0 |
— | ||
|
85530E
|
85530E
85530-50080 Socket Assy, Power Outlet, No.3[09.2012 -] UVF46 |
85530-50080 |
US $23.59 |
||
|
85535B
|
85535B
85535-50060-C0 Cover, Power Outlet Socket, No.1POWER OUTLET SOCKET [09.2012 - 09.2016] UVF46 EXECUTIVE PACKAGE(5SEAT)&CIGARETTE LIGHTER-WITH&TELEVISION & DVD PLAYER-RR DISPLAY :CONSOLE & BD PLAYER:CTR CONSO,BLACK,TRIM1#,2#,4#,5#; UVF46 EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-RR DISPLAY:CONSOLE & BD PLAYER:CT R C |
85535-50060-C0 |
US $8.52 |
||
|
85535B
|
85535B
85535-50130-A1
Cover, Power Outlet Socket, No.1
[09.2012 - 09.2016] UVF46 IVORY,TRIM0# |
85535-50130-A1 |
— | ||
|
85535B
|
85535B
85535-50130-B0
Cover, Power Outlet Socket, No.1
[09.2012 - 09.2016] UVF46 LT.GRAY,TRIM1# |
85535-50130-B0 |
— | ||
|
85535B
|
85535B
85535-50130-C0
Cover, Power Outlet Socket, No.1
[09.2012 - 09.2016] UVF46 BLACK,TRIM2#,4# |
85535-50130-C0 |
— | ||
|
85535B
|
85535B
85535-50130-F0
Cover, Power Outlet Socket, No.1
[09.2012 - 09.2016] UVF46 TOPAZ BROWN,TRIM5# |
85535-50130-F0 |
— | ||
|
85535E
|
85535E
85535-50090 Cover, Power Outlet Socket, No.2[09.2012 -] UVF46 |
85535-50090 |
US $6.70 |
||
|
8271145030
|
8271145030
82711-45030 Wire, Fuse To Fuse(for Combustion Heater) |
82711-45030 |
US $3.04 |
