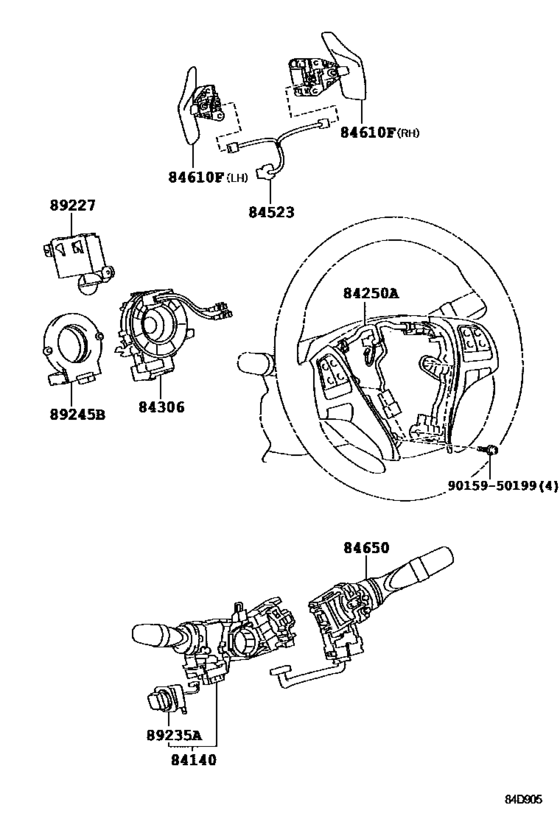

Switch & Relay & Computer ([09.2012 - ] STEERING (1209- )) Diagram Toyota LEXUS LS
- Year
- 2012 - 2018
- Sales region
- U.S.A.
- Frame
- UVF46
- body
- SED
- ENGINE
- 2URFSE
- TRANSMISSION
- ATM
- Model
- LS600L Hybrid
- From
- 09.2012
- Gear Shift Type
- CVFC
- No.of Doors
- 4D
- Vehicle Model
- LS600L Hybrid
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84140
|
84140
84140-50190
Switch Assy, Headlamp Dimmer
[09.2012 - 09.2016] UVF46 CANADA SPEC; UVF46 KOREA SPEC |
84140-50190 |
— | ||
|
84140
|
84140
84140-50210
Switch Assy, Headlamp Dimmer
[09.2012 - 09.2016] UVF46 |
84140-50210 |
— | ||
|
84250A
|
84250A
84250-50070-C0 Switch Assy, Steering Pad[09.2012 -] UVF46 BLACK,TRIM1#,2#,4#,5# |
84250-50070-C0 |
US $409.14 |
||
|
84250A
|
84250A
84250-50070-E0 Switch Assy, Steering Pad[09.2012 -] UVF46 ORCHID BROWN,TRIM0# |
84250-50070-E0 |
US $409.14 |
||
|
84250A
|
84250A
84250-50080-C0 Switch Assy, Steering Pad[09.2012 - 09.2016] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),BLACK,TRIM1#,2#,4#,5# |
84250-50080-C0 |
US $422.24 |
||
|
84250A
|
84250A
84250-50080-E0 Switch Assy, Steering Pad[09.2012 - 09.2016] UVF46 PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),ORCHID BROWN,TRIM0# |
84250-50080-E0 |
US $422.24 |
||
|
84250A
|
84250A
84250-50090-C0 Switch Assy, Steering Pad[09.2012 - 09.2016] UVF46 PRE-COLLISION SYSTEM-WITH(*PB),BLACK,TRIM1#,2#,4#,5# |
84250-50090-C0 |
US $435.34 |
||
|
84250A
|
84250A
84250-50090-E0 Switch Assy, Steering Pad[09.2012 - 09.2016] UVF46 PRE-COLLISION SYSTEM-WITH(*PB),ORCHID BROWN,TRIM0# |
84250-50090-E0 |
US $435.34 |
||
|
84306
|
84306
84306-50200 Cable Sub-Assy, Spiral[09.2012 -] UVF46 |
84306-50200 |
from US $253.09 |
||
|
84650
|
84650
84652-50190
Switch Assy, Windshield Wiper
[09.2012 - 09.2016] UVF46 CANADA SPEC; UVF46 KOREA SPEC |
84652-50190 |
— | ||
|
84650
|
84650
84652-50200
Switch Assy, Windshield Wiper
[09.2012 - 09.2016] UVF46 |
84652-50200 |
— | ||
|
89227
|
89227
89227-50120 Computer, Multiplex Tilt & Telescopic[09.2012 -] UVF46 |
89227-50120 |
US $294.11 |
||
|
89235A
|
89235A
89235-50100 Switch, Tilt & Telescopic[09.2012 -] UVF46 |
89235-50100 |
US $38.44 |
||
|
89245B
|
89245B
89245-30070 Sensor, Steering[09.2012 -] UVF46 |
89245-30070 |
US $247.68 |
||
|
9015950199
|
9015950199
90159-50199 SCREW |
90159-50199 |
from US $0.78 |
