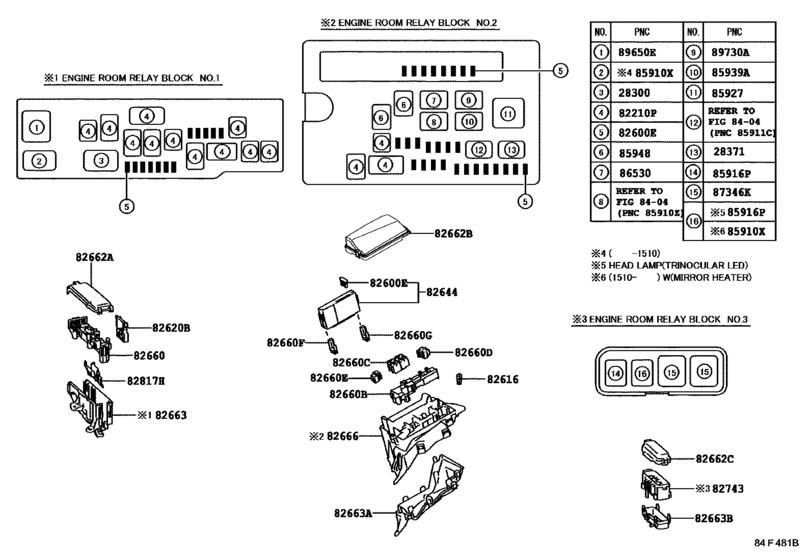

Switch & Relay & Computer ([09.2014 - ] ENGINE ROOM RELAY BLOCK (1409- )GSC1#) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSC16
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- RC350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RC350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28300
|
28300
28300-21020 Relay Assy, Starter[10.2015 -] 8ARFTS,2GRFSE..ASC10,GSC1# |
28300-21020 |
from US $40.58 |
||
|
28371
|
28371
90987-02027 Relay[10.2015 -] 8ARFTS,2GRFSE..ASC10,GSC1# |
90987-02027 |
from US $31.43 |
||
|
82210P
|
82210P
90982-08294 Fusible Link[10.2015 -] ASC10,GSC1# 40A,TERMINAL:FEMALE |
90982-08294 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08295 Fusible Link[10.2015 -] ASC10,GSC1# 30A,TERMINAL:FEMALE |
90982-08295 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08296 Fusible Link[10.2015 -] ASC10,GSC1# 50A,TERMINAL:FEMALE |
90982-08296 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08301 Fusible Link[10.2015 -] ASC10,GSC1# 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210P
|
82210P
90982-08302 Fusible Link[10.2015 -] ASC10,GSC1# 50A-30A-50A,FEMALE |
90982-08302 |
US $6.24 |
||
|
82210P
|
82210P
90982-08303 Fusible Link[10.2015 -] ASC10,GSC1# 50A-50A-50A,FEMALE |
90982-08303 |
from US $6.24 |
||
|
82210P
|
82210P
90982-08305 Fusible Link[10.2015 -] ASC10,GSC1# 80A,TERMINAL:FEMALE |
90982-08305 |
US $6.24 |
||
|
82600E
|
82600E
90982-09019 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09020 Fusible Link[10.2015 -] ASC10,GSC1# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600E
|
82600E
90982-09021 Fusible Link[10.2015 -] ASC10,GSC1# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600E
|
82600E
90982-09022 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09023 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600E
|
82600E
90982-09024 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600E
|
82600E
90982-09025 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82616
|
82616
82616-58010 Puller, Fuse[10.2015 -] ASC10,GSC1# |
82616-58010 |
from US $2.40 |
||
|
82620B
|
82620B
82620-53010 Block Assy, Fusible Link[10.2015 -] ASC10,GSC1# |
82620-53010 |
from US $19.92 |
||
|
82644
|
82644
82644-53010 Computer, Semiconductor Power Integration[10.2015 -] ASC10,GSC1# |
82644-53010 |
from US $161.62 |
||
|
82660
|
82660
82660-24020
Block Assy, Relay, Engine Room
[10.2015 -] ASC10,GSC1# |
82660-24020 |
— | ||
|
82660B
|
82660B
82660-30C70 Block Assy, Relay[10.2015 -] ASC10,GSC1# |
82660-30C70 |
US $48.34 |
||
|
82660C
|
82660C
82660-75010 Block Assy, RelayRELAY [10.2015 -] ASC10,GSC1# |
82660-75010 |
US $11.50 |
||
|
82660D
|
82660D
82660-0H070 Block Assy, Relay[10.2015 -] ASC10,GSC1# |
82660-0H070 |
US $6.99 |
||
|
82660E
|
82660E
82660-0C110 Block Assy, RelayRELAY [10.2015 -] ASC10,GSC1# |
82660-0C110 |
from US $7.13 |
||
|
82660F
|
82660F
82660-30C00 Block Assy, Relay[10.2015 -] ASC10,GSC1# |
82660-30C00 |
US $4.66 |
||
|
82660G
|
82660G
82660-30D50 Block Assy, Relay[10.2015 -] ASC10,GSC1# |
82660-30D50 |
US $4.66 |
||
|
82662A
|
82662A
82662-24250
Cover, Relay Block, Upper, No.1
[10.2015 -] GSC1# |
82662-24250 |
— | ||
|
82662B
|
82662B
82662-53271 Cover, Relay Block, Upper, No.2[10.2015 -] ASC10,GSC1# |
82662-53271 |
from US $24.75 |
||
|
82662C
|
82662C
82662-24150 Cover, Relay Block, Upper, No.3[10.2015 -] ASC10,GSC1# |
82662-24150 |
US $17.33 |
||
|
82663
|
82663
82663-30260
Cover, Relay Block, Lower
[10.2015 -] ASC10,GSC1# |
82663-30260 |
— | ||
|
82663A
|
82663A
82663-30320 Cover, Relay Block, Lower, No.2[10.2015 -] ASC10,GSC1# |
82663-30320 |
from US $28.83 |
||
|
82663B
|
82663B
82663-30340 Cover, Relay Block, Lower, No.2[10.2015 -] ASC10,GSC1# |
82663-30340 |
US $8.30 |
||
|
82666
|
82666
82666-30C30 Holder, Connector[10.2015 -] ASC10,GSC1# |
82666-30C30 |
from US $49.80 |
||
|
82743
|
82743
82743-30090 Block, Engine Room Relay, No.2[10.2015 -] ASC10,GSC1# |
82743-30090 |
US $19.80 |
||
|
82817H
|
82817H
82817-53B60
Protector, Wiring Harness
[10.2015 -] ASC10,GSC1# |
82817-53B60 |
— | ||
|
85910X
|
85910X
90987-02027 Relay[10.2015 -] ASC10,GSC1#; ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE); ASC10,GSC10 KOREA SPEC&"F SPORT"&POWER SEAT-WITH(SEAT MEMORY = DRIVER SIDE)&BLIND SPOT MONITOR -WITH; ASC10,GSC1# "F SPORT"&POWER SEAT-WITH(SEAT MEMORY = |
90987-02027 |
from US $31.43 |
||
|
85916P
|
85916P
90987-02027 Relay[10.2015 - 12.2017] GSC15,16 HEADLAMP-LED(TRINOCULAR FULL LED) |
90987-02027 |
from US $31.43 |
||
|
85927
|
85927
90987-02025 Relay[10.2015 -] GSC1# |
90987-02025 |
from US $44.54 |
||
|
85939A
|
85939A
90987-02027 Relay[10.2015 - 12.2017] ASC10,GSC1# STEERING WHEEL-LEATHER, W(PADDLE SWITCH & HEATER); ASC10,GSC1# STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH&HEATER) |
90987-02027 |
from US $31.43 |
||
|
85948
|
85948
90987-04004 Relay, Starter Cut[10.2015 -] ASC10,GSC1# |
90987-04004 |
from US $42.71 |
||
|
86530
|
86530
90987-02027 Relay[10.2015 -] ASC10,GSC1# |
90987-02027 |
from US $31.43 |
||
|
87346K
|
87346K
90987-02025 Relay[10.2015 -] ASC10,GSC1# COLD AREA SPEC |
90987-02025 |
from US $44.54 |
||
|
89650E
|
89650E
90987-02025 Relay[10.2015 -] ASC10,GSC1# |
90987-02025 |
from US $44.54 |
||
|
89730A
|
89730A
90987-02027 Relay[10.2015 -] ASC10,GSC1# |
90987-02027 |
from US $31.43 |
