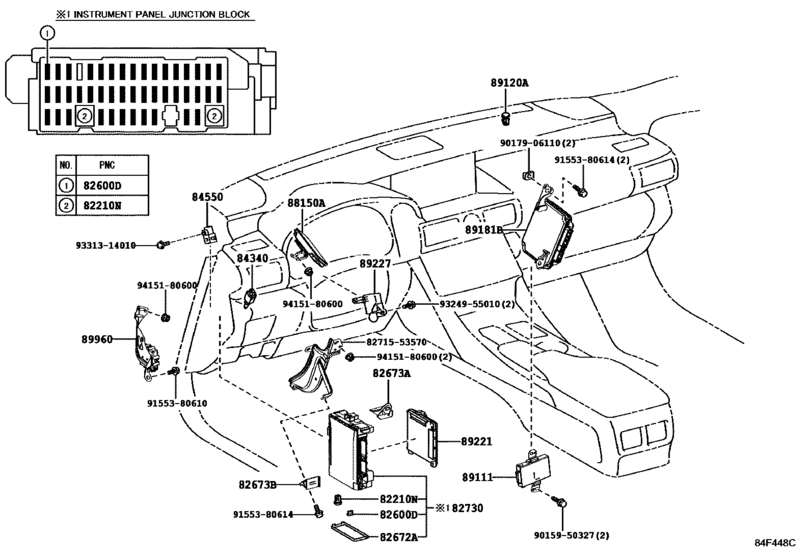

Switch & Relay & Computer ([09.2014 - ] COWL (1409- )) Diagram Toyota LEXUS RC
- Year
- 2015 - 2018
- Sales region
- U.S.A.
- Frame
- GSC16
- ENGINE
- 2GRFSE
- TRANSMISSION
- ATM
- Model
- RC350
- From
- 10.2015
- Gear Shift Type
- 6FC
- Vehicle Model
- RC350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210N
|
82210N
90982-08306 Fusible Link[10.2015 -] ASC10,GSC1# 30A,TERMINAL:FEMALE |
90982-08306 |
from US $6.24 |
||
|
82600D
|
82600D
90982-09019 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09020 Fusible Link[10.2015 -] ASC10,GSC1# 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600D
|
82600D
90982-09021 Fusible Link[10.2015 -] ASC10,GSC1# 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600D
|
82600D
90982-09022 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600D
|
82600D
90982-09023 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600D
|
82600D
90982-09025 Instrument Panel Fuse[10.2015 -] ASC10,GSC1# 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672A
|
82672A
82672-53170 Cover, Junction Block[10.2015 -] ASC10,GSC1# |
82672-53170 |
US $3.49 |
||
|
82673A
|
82673A
82673-53010
Bracket, Junction Block
[10.2015 -] ASC10,GSC1# |
82673-53010 |
— | ||
|
82673B
|
82673B
82817-30W60 Bracket, Junction Block[10.2015 -] ASC10,GSC1# |
82817-30W60 |
US $4.37 |
||
|
82730
|
82730
82730-53J30 Block Assy, Instrument Panel Junction[10.2015 - 02.2016] ASC10,GSC1# |
82730-53J30 |
US $195.10 |
||
|
82730
|
82730
82730-53J31 Block Assy, Instrument Panel Junction[03.2016 -] ASC10,GSC1# |
82730-53J31 |
from US $183.98 |
||
|
84340
|
84340
84340-30130 Switch Assy, Stop Lamp[10.2015 -] ASC10,GSC1# |
84340-30130 |
from US $42.10 |
||
|
84550
|
84550
84550-16060 Switch Assy, Parking Brake[10.2015 -] ASC10,GSC1# |
84550-16060 |
from US $17.48 |
||
|
88150A
|
88150A
88150-24021
Computer Assy, Driving Support
[10.2015 - 12.2017] ASC10,GSC1# PRE-COLLISION SYSTEM-WITH(*PBA & *PB) |
88150-24021 |
— | ||
|
89111
|
89111
89100-30221 Computer, Network Gateway[10.2015 - 12.2017] GSC15,16; ASC10,GSC10 "F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&CLEARANCE & BACK SONAR-WITH&MAYDAY SYSTEM-WITHOUT&BLIND SPOT MONITOR-WITH; ASC10,GSC10 "F SPORT"&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&MAYDAY SYSTEM-WITHOUT&BLIND SP |
89100-30221 |
US $174.72 |
||
|
89120A
|
89120A
89121-30020 Sensor, Automatic Light Control[10.2015 -] ASC10,GSC1# |
89121-30020 |
from US $56.10 |
||
|
89221
|
89221
89220-24E90
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# CANADA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# CANADA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
89220-24E90 |
— | ||
|
89221
|
89221
89220-24F00
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# CANADA SPEC |
89220-24F00 |
— | ||
|
89221
|
89221
89220-24F20
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# HAWAII SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# HAWAII SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
89220-24F20 |
— | ||
|
89221
|
89221
89220-24F30
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# HAWAII SPEC |
89220-24F30 |
— | ||
|
89221
|
89221
89220-24F40
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
89220-24F40 |
— | ||
|
89221
|
89221
89220-24F50
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# |
89220-24F50 |
— | ||
|
89221
|
89221
89220-24P00
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# GUAM,PUERTO RICO SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
89220-24P00 |
— | ||
|
89221
|
89221
89220-24P10
Computer, Multiplex Network Body
[10.2015 - 09.2016] ASC10,GSC1# GUAM,PUERTO RICO SPEC |
89220-24P10 |
— | ||
|
89221
|
89221
89220-24R00
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# CANADA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# CANADA SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
89220-24R00 |
— | ||
|
89221
|
89221
89220-24R10
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# CANADA SPEC |
89220-24R10 |
— | ||
|
89221
|
89221
89220-24R30
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# HAWAII SPEC&HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# HAWAII SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
89220-24R30 |
— | ||
|
89221
|
89221
89220-24R40
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# HAWAII SPEC |
89220-24R40 |
— | ||
|
89221
|
89221
89220-24R50
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB) |
89220-24R50 |
— | ||
|
89221
|
89221
89220-24R60
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# |
89220-24R60 |
— | ||
|
89221
|
89221
89220-24W60
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# GUAM,PUERTO RICO SPEC&HEADLAMP-LED(TRINOCULAR FULL LED) |
89220-24W60 |
— | ||
|
89221
|
89221
89220-24W70
Computer, Multiplex Network Body
[09.2016 -] ASC10,GSC1# GUAM,PUERTO RICO SPEC |
89220-24W70 |
— | ||
|
89227
|
89227
89227-53010 Computer, Multiplex Tilt & Telescopic[10.2015 -] ASC10,GSC1# "F SPORT"; ASC10,GSC1# "VERSION L" |
89227-53010 |
US $235.87 |
||
|
89960
|
89960
89960-24110 Computer Assy, Headlamp Leveling[10.2015 -] ASC10,GSC1#; ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED); ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED)&HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST W IPER); ASC10,GSC1# HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHB); ASC10,GSC1# HEADLAMP- |
89960-24110 |
US $270.82 |
||
|
89960
|
89960
89960-24120 Computer Assy, Headlamp Leveling[10.2015 -] ASC10,GSC1# HEADLAMP CLEANER-WITH(SYNCHRONIZATION TO FIRST WIPER) |
89960-24120 |
US $270.82 |
||
|
8271553570
|
8271553570
82715-53570
Bracket,wiring Harness Clamp
|
82715-53570 |
— | ||
|
9015950327
|
9015950327
90159-50327 SCREW WWASHER |
90159-50327 |
from US $0.74 |
||
|
9017906110
|
9017906110
90179-06110 New Genuine Part |
90179-06110 |
US $1.44 |
||
|
9155380610
|
9155380610
91553-80610 BOLT FLANGE |
91553-80610 |
US $0.96 |
||
|
9155380614
|
9155380614
91553-80614 BOLT FLANGE |
91553-80614 |
US $0.96 |
||
|
9324955010
|
9324955010
93249-55010 New Genuine Part |
93249-55010 |
US $0.73 |
||
|
9331314010
|
9331314010
93313-14010 New Genuine Part |
93313-14010 |
US $0.73 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.70 |
