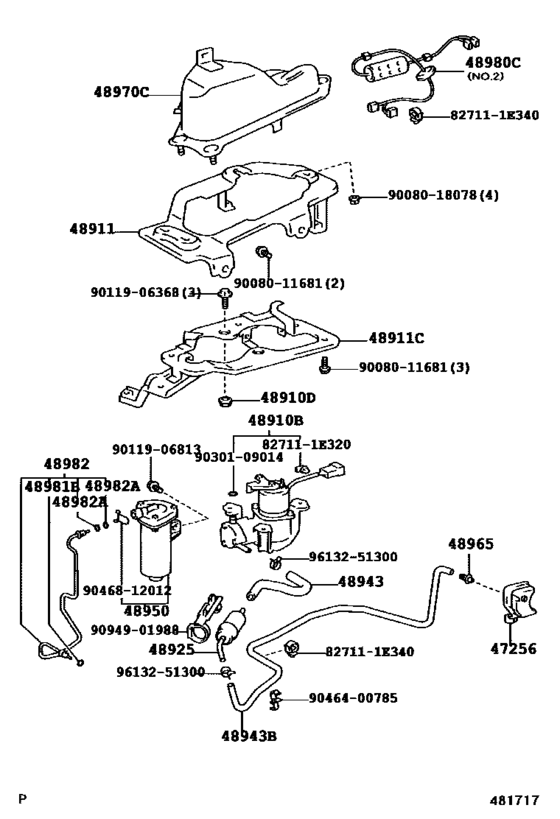

Height Control (Auto-Leveler) ([09.2003 - ] (0309- )NAP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX330
- From
- 09.2003
- To
- 02.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47256
|
47256
47256-48020 Grommet, Cap[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
47256-48020 |
US $6.41 |
||
|
48910B
|
48910B
48910-48010 Compressor Assy, Height Control[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48910-48010 |
US $1,339.52 |
||
| replacement | |||||
|
48910B
|
48910B
48910-48011 Compressor Assy, Height Control[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48910-48011 |
US $1,339.52 |
||
|
48910D
|
48910D
90389-06033 Bush, No.2(For Height Control Valve)[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
90389-06033 |
from US $1.76 |
||
|
48911
|
48911
48911-48010
Bracket, Height Control Compressor
[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48911-48010 |
— | ||
|
48911C
|
48911C
48911-48020
Bracket, Rear Height Control Compressor
[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48911-48020 |
— | ||
|
48925
|
48925
48925-50030 Filter, Height Control[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48925-50030 |
US $31.10 |
||
|
48943
|
48943
48943-48010 Hose, Height Control, No.1[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48943-48010 |
US $8.74 |
||
|
48943B
|
48943B
48943-48020 Hose, Height Control, No.2[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48943-48020 |
US $28.83 |
||
|
48950
|
48950
48950-50030 Dryer Assy, Height Control[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48950-50030 |
US $718.10 |
||
|
48965
|
48965
48965-48010 Clamp, Height Control Tube[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48965-48010 |
US $0.87 |
||
|
48970C
|
48970C
48970-48010 Cap(For Height Control Compressor)[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48970-48010 |
US $278.10 |
||
|
48980C
|
48980C
48980-48010 Harnnes Assy, Height Control Valve[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE,NO.1 |
48980-48010 |
US $13.98 |
||
|
48980C
|
48980C
48980-48021 Harnnes Assy, Height Control Valve[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE,NO.2 |
48980-48021 |
US $152.88 |
||
|
48981B
|
48981B
90301-04006 Ring, O(For Height Control Tube No.1)[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
90301-04006 |
US $2.56 |
||
|
48982
|
48982
48982-48010 Tube, Height Control, No.2[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
48982-48010 |
US $44.41 |
||
|
48982A
|
48982A
90301-04004 Ring, O(For Height Control Tube No.1)[09.2003 - 02.2006] MCU3#..NAP SPORT PACKAGE |
90301-04004 |
from US $1.76 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
827111E340
|
827111E340
82711-1E340 Clamp, Hood Lock Control Cable |
82711-1E340 |
from US $1.31 |
||
|
9008011681
|
9008011681
90080-11681
New Genuine Part
|
90080-11681 |
— | ||
|
9008018078
|
9008018078
90080-18078
New Genuine Part
|
90080-18078 |
— | ||
|
9011906368
|
9011906368
90119-06368 BOLT WWASHER |
90119-06368 |
from US $1.44 |
||
|
9011906813
|
9011906813
90119-06813 BOLT WWASHER |
90119-06813 |
US $0.44 |
||
|
9030109014
|
9030109014
90301-09014 Ring, O(For Height Control Valve) |
90301-09014 |
from US $2.07 |
||
|
9046400785
|
9046400785
90464-00785 New Genuine Part |
90464-00785 |
US $3.20 |
||
|
9046812012
|
9046812012
90468-12012 Clip(For Pneumatic Tank Assy) |
90468-12012 |
US $1.12 |
||
|
9094901988
|
9094901988
90949-01988 New Genuine Part |
90949-01988 |
US $3.93 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
