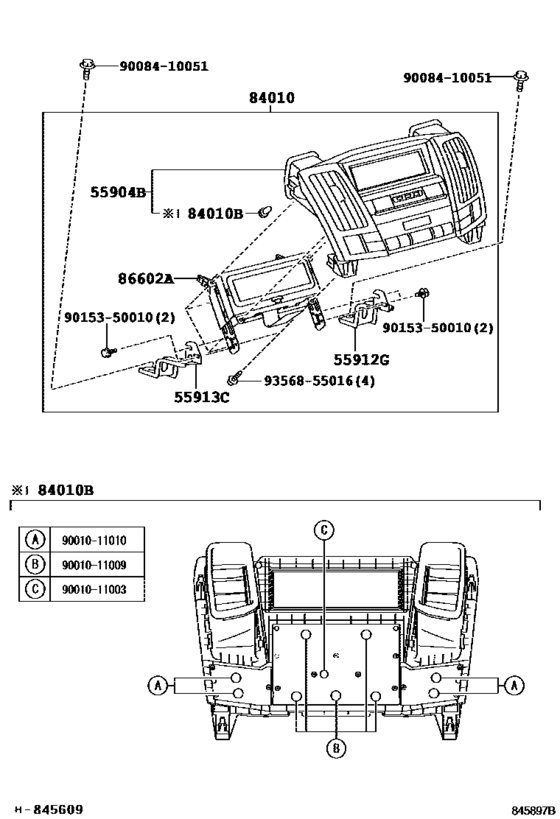

Switch & Relay & Computer ([09.2003 - ] INSTRUMENT PANEL 2/2 (0309- )NAP) Diagram Toyota LEXUS RX
- Year
- 2003 - 2006
- Sales region
- U.S.A.
- Frame
- MCU33
- grade
- STD
- body
- WG
- ENGINE
- 3MZFE
- TRANSMISSION
- ATM
- PRODUCT
- NAP
- Model
- RX330
- From
- 09.2003
- To
- 02.2006
- Gear Shift Type
- 5FC
- Vehicle Model
- RX330
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55904B
|
55904B
55904-0E010
Housing Sub-Assy, Heater Control
[09.2003 - 09.2004] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
55904-0E010 |
— | ||
|
55904B
|
55904B
55904-0E011
Housing Sub-Assy, Heater Control
[09.2004 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
55904-0E011 |
— | ||
| replacement | |||||
|
55904B
|
55904B
55904-0E012
Housing Sub-Assy, Heater Control
[09.2004 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
55904-0E012 |
— | ||
|
55912G
|
55912G
55912-48010 Bracket, Heater Control Base, Rh[09.2003 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
55912-48010 |
US $6.70 |
||
|
55913C
|
55913C
55913-48010 Bracket, Heater Control Base, Lh[09.2003 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
55913-48010 |
US $6.70 |
||
|
84010
|
84010
84010-0E010
Switch Assy, Center Cluster Integration
[09.2003 - 09.2004] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
84010-0E010 |
— | ||
|
84010
|
84010
84010-0E011
Switch Assy, Center Cluster Integration
[09.2004 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
84010-0E011 |
— | ||
| replacement | |||||
|
84010
|
84010
84010-0E021
Switch Assy, Center Cluster Integration
[09.2004 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
84010-0E021 |
— | ||
|
84010B
|
84010B
90010-11003 Bulb, Integration Control & Panel[09.2003 - 02.2006] MCU3#..NAP 14V 0.91W,TYPE C:REFER ILLUST.; MCU3#..NAP 14V 0.91W,W/DVD NAVIGATION,TYPE C:REFER ILLUST. |
90010-11003 |
US $7.28 |
||
|
84010B
|
84010B
90010-11009 Bulb, Integration Control & Panel[09.2003 - 02.2006] MCU3#..NAP 14V 1.4W,W/CAP,TYPE B:REFER ILLUST.; MCU3#..NAP 14V 1.4W,W/CAP,W/DVD NAVIGATION,TYPE B:REFER ILLUST. |
90010-11009 |
US $10.92 |
||
|
84010B
|
84010B
90010-11010 Bulb, Integration Control & Panel[09.2003 - 02.2006] MCU3#..NAP 14V 1.4W,TYPE A:REFER ILLUST.; MCU3#..NAP 14V 1.4W,W/DVD NAVIGATION,TYPE A:REFER ILLUST. |
90010-11010 |
US $13.40 |
||
|
86602A
|
86602A
86602-0E010
Display Sub-Assy, Multi Information
[09.2003 - 09.2004] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
86602-0E010 |
— | ||
|
86602A
|
86602A
86602-0E011
Display Sub-Assy, Multi Information
[09.2004 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
86602-0E011 |
— | ||
| replacement | |||||
|
86602A
|
86602A
86602-0E020
Display Sub-Assy, Multi Information
[09.2004 - 02.2006] MCU3#..NAP; MCU3#..NAP W/DVD NAVIGATION |
86602-0E020 |
— | ||
|
9008410051
|
9008410051
90084-10051
New Genuine Part
|
90084-10051 |
— | ||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
US $1.12 |
||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
