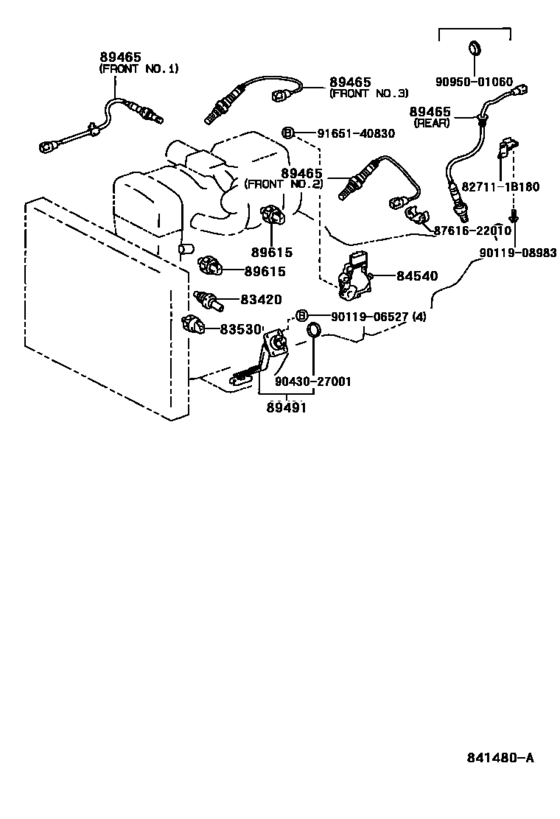

Switch & Relay & Computer ([09.1997 - ] ENGINE & TRANSMISSION (9709- )JZZ31) Diagram Toyota LEXUS SC
- Year
- 1991 - 2000
- Sales region
- U.S.A.
- Frame
- JZZ31
- ENGINE
- 2JZGE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC300
- From
- 08.1991
- To
- 07.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- SC300
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83420
|
83420
83420-16040 Gage Assy, Water Temperature Sender[01.1994 -] JZZ31 |
83420-16040 |
from US $32.68 |
||
|
83420
|
83420
83420-20020 Gage Assy, Water Temperature Sender[08.1991 - 11.1992] JZZ31 |
83420-20020 |
from US $30.62 |
||
|
83530
|
83530
83530-14060
Switch Assy, Oil Pressure (For Engine)
[11.1992 - 01.1994] JZZ31 DENSO |
83530-14060 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1992 - 01.1994] JZZ31 DENSO |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-28020 Switch Assy, Oil Pressure (For Engine)[01.1998 -] JZZ31 DENSO; UZZ30 |
83530-28020 |
US $29.94 |
||
| replacements | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [01.1998 -] JZZ31 DENSO; UZZ30 |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-0E010 Switch Assy, Oil Pressure (For Engine)[01.1998 -] JZZ31 DENSO; UZZ30 |
83530-0E010 |
from US $51.25 |
||
|
83530
|
83530
83530-30080
Switch Assy, Oil Pressure (For Engine)
[04.1991 - 08.1992] JZZ31,UZZ30 |
83530-30080 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60040 Switch Assy, Oil Pressure (For Engine)[04.1991 - 08.1992] JZZ31,UZZ30 |
83530-60040 |
from US $34.52 |
||
|
83530
|
83530
83530-30090
Switch Assy, Oil Pressure (For Engine)
[11.1992 - 01.1994] JZZ31 YAZAKI |
83530-30090 |
— | ||
| replacement | |||||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [11.1992 - 01.1994] JZZ31 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
83530
|
83530
83530-60020 Switch Assy, Oil Pressure (For Engine)ＹＡＺＡＫＩ→ＤＥＮＳＯ [12.1997 -] JZZ31 YAZAKI |
83530-60020 |
from US $25.21 |
||
|
84540
|
84540
84540-30270 Switch Assy, Neutral Start[01.1994 -] JZZ31,UZZ30..ATM |
84540-30270 |
US $145.44 |
||
|
84540
|
84540
84540-50010
Switch Assy, Neutral Start
[04.1991 - 01.1994] JZZ31,UZZ30..4FC |
84540-50010 |
— | ||
|
89465
|
89465
89465-14120 Sensor, Oxygen[08.1995 - 09.1997] JZZ31 FRONT |
89465-14120 |
US $159 |
||
|
89465
|
89465
89465-14140 Sensor, OxygenOXYGEN [01.1994 - 08.1995] JZZ31 CALIFORNIA SPEC,FRONT |
89465-14140 |
US $149.97 |
||
|
89465
|
89465
89465-14200 Sensor, OxygenOXYGEN [09.1997 -] JZZ31 FRONT,NO.1 |
89465-14200 |
US $157.25 |
||
|
89465
|
89465
89465-14220 Sensor, OxygenOXYGEN [09.1997 -] JZZ31 REAR |
89465-14220 |
US $157.25 |
||
|
89465
|
89465
89465-19625 Sensor, OxygenOXYGEN [01.1994 - 08.1995] JZZ31 FRONT |
89465-19625 |
US $136.86 |
||
|
89465
|
89465
89465-24200 Sensor, OxygenOXYGEN [09.1997 -] JZZ31 FRONT,NO.2 |
89465-24200 |
US $157.25 |
||
|
89465
|
89465
89465-29505 Sensor, OxygenOXYGEN [08.1991 - 01.1994] JZZ31 FRONT |
89465-29505 |
US $131.04 |
||
|
89465
|
89465
89465-29525 Sensor, OxygenOXYGEN [08.1991 - 08.1995] JZZ31..USA CALIFORNIA SPEC,REAR |
89465-29525 |
US $151.42 |
||
|
89465
|
89465
89465-29895 Sensor, OxygenOXYGEN [08.1995 - 09.1997] JZZ31 REAR |
89465-29895 |
US $94.64 |
||
|
89465
|
89465
89465-30470 Sensor, OxygenOXYGEN [09.1997 -] JZZ31 FRONT,NO.3 |
89465-30470 |
US $152.01 |
||
|
89491
|
89491
89491-14050
Sensor, Engine Oil Level
[08.1991 - 05.1993] JZZ31 |
89491-14050 |
— | ||
|
89491
|
89491
89491-14070
Sensor, Engine Oil Level
[05.1993 -] JZZ31 |
89491-14070 |
— | ||
|
89615
|
89615
89615-12050
Sensor, Knock Control
[09.1997 -] JZZ31 |
89615-12050 |
— | ||
| replacement | |||||
|
89615
|
89615
89615-12090 Sensor, Knock Control[09.1997 -] JZZ31 |
89615-12090 |
from US $137.81 |
||
|
89615
|
89615
89615-22040 Sensor, Knock Control[01.1994 - 09.1997] JZZ31 |
89615-22040 |
from US $132.91 |
||
|
827111B180
|
827111B180
82711-1B180 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1B180 |
US $6.70 |
||
|
8761622010
|
8761622010
87616-22010 Clamp, Cooling Unit Case |
87616-22010 |
US $6.99 |
||
|
9011906527
|
9011906527
90119-06527 BOLT WWASHER |
90119-06527 |
from US $0.84 |
||
|
9011908983
|
9011908983
90119-08983 New Genuine Part |
90119-08983 |
US $0.70 |
||
|
9043027001
|
9043027001
90430-27001 Gasket, Engine Oil Level Sensor |
90430-27001 |
from US $1.09 |
||
|
9095001060
|
9095001060
90950-01060
Plug, Hole, No.1(For Dash Panel)
|
90950-01060 |
— | ||
| replacement | |||||
|
9095001060
|
9095001060
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
