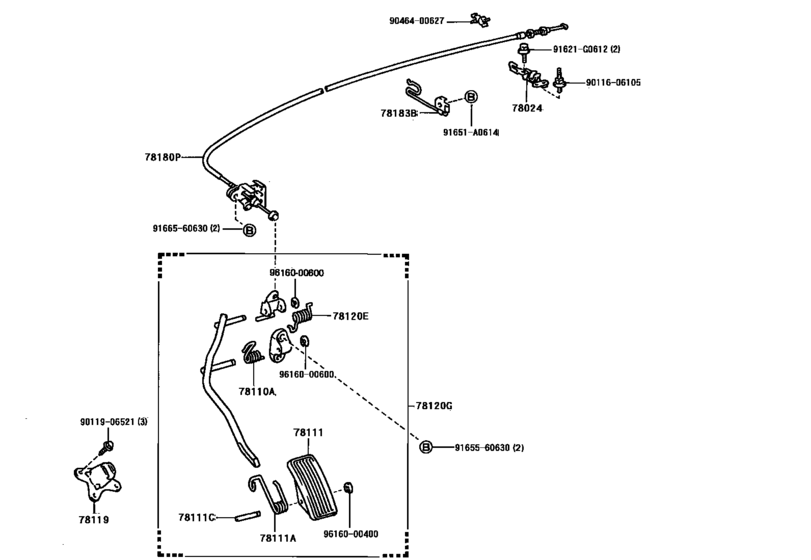

Accelerator Link ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-50020 Bracket Sub-Assy, Accelerator Control Cable[09.1997 -] UZZ30 |
78024-50020 |
US $30.58 |
||
|
78110A
|
78110A
90508-26036 Spring (For Accelerator Pedal Rod)[09.1997 -] JZZ31,UZZ30 |
90508-26036 |
US $7.28 |
||
|
78111
|
78111
78111-12100 Pedal, Accelerator[04.1991 -] JZZ31,UZZ30 |
78111-12100 |
from US $18.54 |
||
|
78111A
|
78111A
90508-23121
Spring (For Accelerator Pedal)
[01.1994 -] JZZ31,UZZ30 |
90508-23121 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[04.1991 -] JZZ31,UZZ30 |
90249-05001 |
US $3.32 |
||
|
78119
|
78119
78119-24020 Stopper, Accelerator Pedal RodACCELERATOR PEDAL ROD [01.1994 -] JZZ31,UZZ30 |
78119-24020 |
US $18.87 |
||
|
78120G
|
78120G
78120-24071 Rod Assy, Accelerator PedalACCELERATOR PEDAL [09.1997 -] JZZ31,UZZ30 |
78120-24071 |
US $49.50 |
||
|
78180P
|
78180P
78180-24180
Cable Assy, Accelerator Control
[09.1997 -] UZZ30 |
78180-24180 |
— | ||
|
78183B
|
78183B
78183-30140 Clamp, Accelerator Control CableACCELERATOR CONTROL CABLE [09.1997 -] UZZ30 |
78183-30140 |
US $4.66 |
||
|
91621G0612
|
91621G0612
91621-G0612 New Genuine Part |
91621-G0612 |
US $1.92 |
||
|
91651A0614
|
91651A0614
91651-A0614
BOLT WWASHER
|
91651-A0614 |
— | ||
| replacement | |||||
|
91651A0614
|
91651A0614
91653-A0614 BOLT WWASHER |
91653-A0614 |
US $0.96 |
||
|
9011606105
|
9011606105
90116-06105 New Genuine Part |
90116-06105 |
US $2.33 |
||
|
9011906521
|
9011906521
90119-06521 New Genuine Part |
90119-06521 |
from US $1.75 |
||
|
9046400627
|
9046400627
90464-00627
Clamp, Throttle Cable, No.6
|
90464-00627 |
— | ||
|
9165560630
|
9165560630
91655-60630 New Genuine Part |
91655-60630 |
US $1.60 |
||
| replacement | |||||
|
9165560630
|
9165560630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9166560630
|
9166560630
91665-60630 BOLT |
91665-60630 |
US $1.75 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
