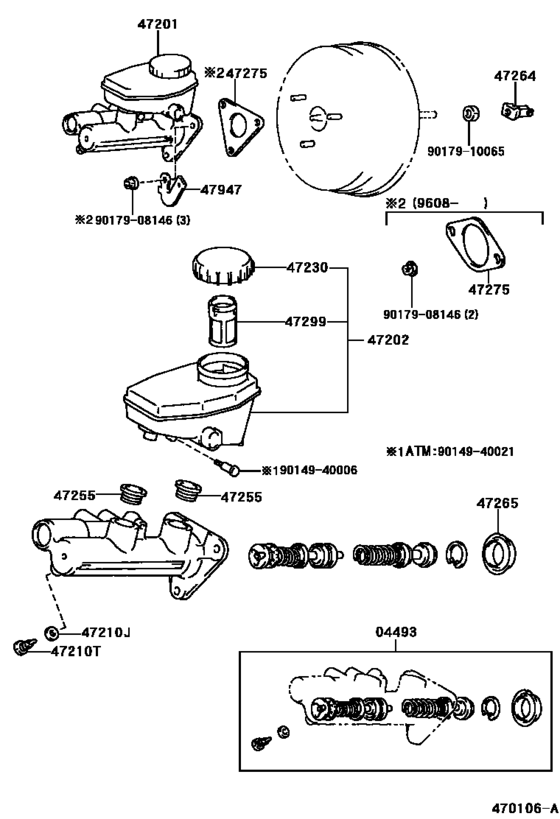

Brake Master Cylinder ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-30240
Cylinder Kit, Brake Master
[01.1996 - 03.1998] JZZ31,UZZ30 |
04493-30240 |
— | ||
| replacement | |||||
|
04493
|
04493
04493-30241 Cylinder Kit, Brake Master[01.1996 - 03.1998] JZZ31,UZZ30 |
04493-30241 |
US $108.04 |
||
|
04493
|
04493
04493-30241 Cylinder Kit, Brake Master[03.1998 -] JZZ31,UZZ30 |
04493-30241 |
US $108.04 |
||
|
47201
|
47201
47201-24140
Cylinder Sub-Assy, Brake Master
[01.1994 -] JZZ31,UZZ30..USA |
47201-24140 |
— | ||
|
47201
|
47201
47201-24150
Cylinder Sub-Assy, Brake Master
[01.1994 -] JZZ31,UZZ30..ATM W(TRACTION CONTROL) |
47201-24150 |
— | ||
|
47202
|
47202
47220-24010 Reservoir Sub-Assy, Brake Master CylinderBRAKE MASTER CYLINDER [08.1996 -] JZZ31,UZZ30 W(TRACTION CONTROL) |
47220-24010 |
US $132.50 |
||
|
47202
|
47202
47220-30080
Reservoir Sub-Assy, Brake Master Cylinder
[01.1994 - 08.1998] JZZ31,UZZ30..USA |
47220-30080 |
— | ||
|
47210J
|
47210J
90029-43001 Gasket(For Master Cylinder)[08.1997 -] JZZ31,UZZ30..USA |
90029-43001 |
US $1.40 |
||
|
47210T
|
47210T
90109-06077 Bolt(For Brake Master Cylinder)[10.1991 -] JZZ31;UZZ30..USA |
90109-06077 |
from US $2.56 |
||
|
47230
|
47230
47230-24010
Cap Assy, Brake Master Cylinder Reservoir Filler
[04.1991 -] JZZ31,UZZ30 |
47230-24010 |
— | ||
| replacement | |||||
|
47230
|
47230
47230-47090 Cap Assy, Brake Master Cylinder Reservoir Filler[04.1991 -] JZZ31,UZZ30 |
47230-47090 |
from US $12.32 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[04.1991 -] JZZ31,UZZ30 |
47255-16010 |
from US $5.76 |
||
|
47264
|
47264
47264-50010 Clevis, Master Cylinder Push Rod[04.1991 -] JZZ31,UZZ30 |
47264-50010 |
from US $8.32 |
||
|
47265
|
47265
47265-22030 Boot, Master Cylinder[04.1991 -] JZZ31,UZZ30 |
47265-22030 |
US $4.96 |
||
|
47275
|
47275
47275-12020 Gasket, Brake Master Cylinder[01.1994 -] JZZ31,UZZ30 |
47275-12020 |
from US $1.17 |
||
|
47299
|
47299
47299-24010 Strainer, Brake Master Cylinder Reservoir[04.1991 -] JZZ31,UZZ30 |
47299-24010 |
US $8.64 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9014940021
|
9014940021
90149-40021 New Genuine Part |
90149-40021 |
US $1.28 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
