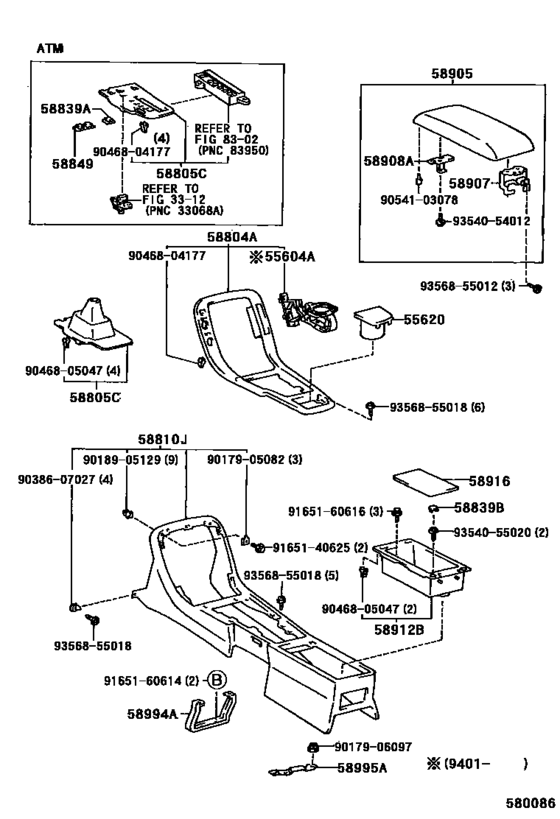

Console Box & Bracket ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55604A
|
55604A
55604-24030-C0 Holder Sub-Assy, Instrument Panel Cup[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55604-24030-C0 |
US $39.89 |
||
|
55604A
|
55604A
55604-24030-E0 Holder Sub-Assy, Instrument Panel Cup[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55604-24030-E0 |
US $39.89 |
||
| replacement | |||||
|
55604A
|
55604A
55604-24030-C0 Holder Sub-Assy, Instrument Panel Cup[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55604-24030-C0 |
US $39.89 |
||
|
55620
|
55620
55620-24020-C0
Holder Assy, Instrument Panel Cup
[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
55620-24020-C0 |
— | ||
|
55620
|
55620
55620-24020-E0
Holder Assy, Instrument Panel Cup
[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55620-24020-E0 |
— | ||
| replacement | |||||
|
55620
|
55620
55620-24020-C0
Holder Assy, Instrument Panel Cup
[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
55620-24020-C0 |
— | ||
|
58804A
|
58804A
58804-24031-C0
Panel Sub-Assy, Console, Upper
[08.1996 - 08.1998] JZZ31..4FC;UZZ30..5FC BLACK,TRIM0#,2# |
58804-24031-C0 |
— | ||
|
58804A
|
58804A
58804-24031-E0
Panel Sub-Assy, Console, Upper
[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
58804-24031-E0 |
— | ||
| replacement | |||||
|
58804A
|
58804A
58804-24031-C0
Panel Sub-Assy, Console, Upper
[08.1996 -] JZZ31..4FC;UZZ30..5FC OAK,TRIM0# |
58804-24031-C0 |
— | ||
|
58805C
|
58805C
58805-24090 Panel Sub-Assy, Console, Upper RearCONSOLE, UPPER REAR [09.1997 -] JZZ31,UZZ30 W(TRACTION CONTROL) |
58805-24090 |
US $400.40 |
||
|
58805C
|
58805C
58805-24100 Panel Sub-Assy, Console, Upper RearCONSOLE, UPPER REAR [09.1997 -] JZZ31,UZZ30 |
58805-24100 |
US $400.40 |
||
|
58810J
|
58810J
58810-24040-A2 Box Assy, Console[08.1996 - 08.1998] UZZ30 IVORY,TRIM07,08; JZZ31 IVORY,TRIM0#,07,08 |
58810-24040-A2 |
US $409.14 |
||
|
58810J
|
58810J
58810-24040-C0 Box Assy, ConsoleCONSOLE [01.1994 -] JZZ31,UZZ30 BLACK,TRIM2# |
58810-24040-C0 |
US $409.14 |
||
|
58839B
|
58839B
58917-30090 Cover, Console Box Hole, No.2[07.1993 -] JZZ31,UZZ30 |
58917-30090 |
US $1.60 |
||
|
58905
|
58905
58905-24100-A0 Door Sub-Assy, Console Compartment[08.1996 - 08.1998] JZZ31,UZZ30 IVORY,TRIM07,08 |
58905-24100-A0 |
US $646.46 |
||
| replacement | |||||
|
58905
|
58905
58905-24110-A0 Door Sub-Assy, Console Compartment[08.1996 - 08.1998] JZZ31,UZZ30 IVORY,TRIM07,08 |
58905-24110-A0 |
US $643.55 |
||
|
58905
|
58905
58905-24100-C0 Door Sub-Assy, Console Compartment[08.1996 - 08.1998] JZZ31,UZZ30 BLACK,TRIM2# |
58905-24100-C0 |
US $646.46 |
||
| replacement | |||||
|
58905
|
58905
58905-24110-C0 Door Sub-Assy, Console Compartment[08.1996 - 08.1998] JZZ31,UZZ30 BLACK,TRIM2# |
58905-24110-C0 |
US $643.55 |
||
|
58905
|
58905
58905-24110-A0 Door Sub-Assy, Console Compartment[08.1998 -] JZZ31,UZZ30 W(LEATHER SEAT),IVORY,TRIM0# |
58905-24110-A0 |
US $643.55 |
||
|
58905
|
58905
58905-24110-C0 Door Sub-Assy, Console Compartment[08.1998 -] JZZ31,UZZ30 BLACK,TRIM2# |
58905-24110-C0 |
US $643.55 |
||
|
58907
|
58907
58907-24030
Hinge Sub-Assy, Console Compartment Door
[04.1991 -] JZZ31,UZZ30 |
58907-24030 |
— | ||
|
58908A
|
58908A
58908-24010 Lock Sub-Assy, Console Compartment Door[04.1991 -] JZZ31,UZZ30 |
58908-24010 |
US $37.56 |
||
|
58912B
|
58912B
58912-24040
Box, Rear Console, Lower
[04.1991 -] JZZ31,UZZ30 |
58912-24040 |
— | ||
|
58916
|
58916
58916-24020 Mat, Box Bottom[04.1991 -] JZZ31,UZZ30 |
58916-24020 |
US $3.49 |
||
|
58995A
|
58995A
58995-24020
Bracket, Console Box Mounting, No.1
[04.1991 -] JZZ31,UZZ30 |
58995-24020 |
— | ||
|
9017905082
|
9017905082
90179-05082 New Genuine Part |
90179-05082 |
US $1.89 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.80 |
||
|
9018905129
|
9018905129
90189-05129 New Genuine Part |
90189-05129 |
US $1.75 |
||
|
9038607027
|
9038607027
90386-07027 New Genuine Part |
90386-07027 |
US $2.62 |
||
|
9046804177
|
9046804177
90468-04177 Clip(For Instrument Panel Under Cover) |
90468-04177 |
from US $0.64 |
||
|
9046805047
|
9046805047
90468-05047 CLIP |
90468-05047 |
US $1.44 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.66 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
|
9354054012
|
9354054012
93540-54012 Screw, Headlamp |
93540-54012 |
US $1.44 |
||
|
9354055020
|
9354055020
93540-55020 SCREW |
93540-55020 |
from US $1.11 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.62 |
||
|
9356855018
|
9356855018
93568-55018 SCREW |
93568-55018 |
from US $0.62 |
||
