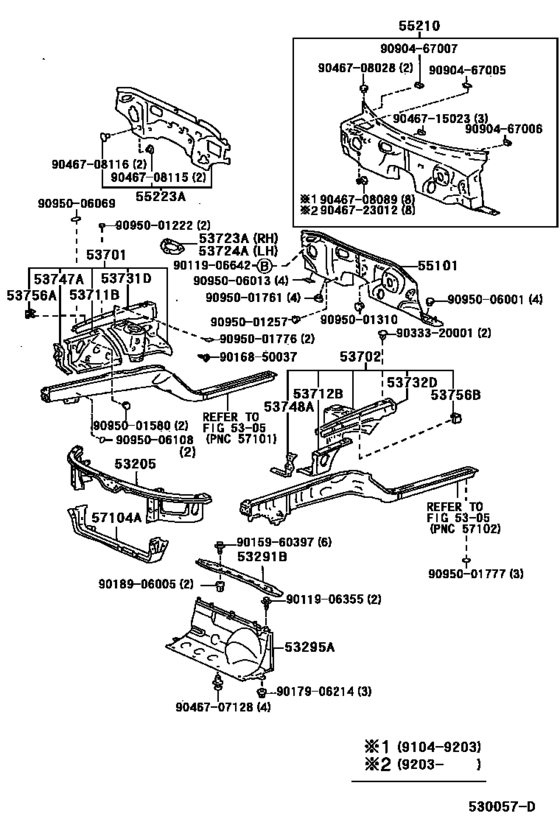

Front Fender Apron & Dash Panel ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53205
|
53205
53205-24040
Support Sub-Assy, Radiator, Upper
[04.1991 -] JZZ31,UZZ30 |
53205-24040 |
— | ||
|
53291B
|
53291B
53291-24010 Plate, Radiator Cover[04.1991 -] JZZ31,UZZ30 |
53291-24010 |
US $36.98 |
||
|
53295A
|
53295A
53293-24010 Deflector, Radiator Upper Air[04.1991 -] JZZ31,UZZ30 |
53293-24010 |
US $133.95 |
||
|
53701
|
53701
53701-24912 Apron Sub-Assy, Front Fender, Rh[01.1994 -] JZZ31,UZZ30 |
53701-24912 |
US $665.39 |
||
|
53702
|
53702
53702-24909 Apron Sub-Assy, Front Fender, Lh[01.1994 -] JZZ31,UZZ30 |
53702-24909 |
US $665.39 |
||
|
53711B
|
53711B
53711-24900
Apron, Front Fender, Front Rh
[04.1991 -] JZZ31,UZZ30 |
53711-24900 |
— | ||
|
53712B
|
53712B
53712-24900
Apron, Front Fender, Front Lh
[04.1991 -] JZZ31,UZZ30 |
53712-24900 |
— | ||
|
53723A
|
53723A
53723-24012 Reinforcement, Front Spring Support[05.1995 -] JZZ31,UZZ30 |
53723-24012 |
US $18.35 |
||
|
53724A
|
53724A
53723-24012 Reinforcement, Front Spring Support[05.1995 -] JZZ31,UZZ30 |
53723-24012 |
US $18.35 |
||
|
53731D
|
53731D
53731-24900 Member, Front Apron To Cowl Side, Upper Rh[04.1991 -] JZZ31,UZZ30 |
53731-24900 |
US $90.27 |
||
|
53732D
|
53732D
53732-24900 Member, Front Apron To Cowl Side, Upper Lh[04.1991 -] JZZ31,UZZ30 |
53732-24900 |
US $90.27 |
||
|
53747A
|
53747A
53747-24010 Extension, Apron Fender Side, Rh[04.1991 -] JZZ31,UZZ30 |
53747-24010 |
US $21.69 |
||
|
53748A
|
53748A
53748-24010 Extension, Apron Fender Side, Lh[04.1991 -] JZZ31,UZZ30 |
53748-24010 |
US $21.69 |
||
|
53756A
|
53756A
53756-14010 Bracket, Speed Control Mounting[08.1996 -] JZZ31,UZZ30 |
53756-14010 |
US $4.89 |
||
|
53756B
|
53756B
53756-14010 Bracket, Speed Control Mounting[08.1996 -] JZZ31,UZZ30 |
53756-14010 |
US $4.89 |
||
|
55101
|
55101
55101-24090 Panel Sub-Assy, Dash[04.1991 -] UZZ30 |
55101-24090 |
US $384.38 |
||
| replacements | |||||
|
55101
|
55101
55101-24120 Panel Sub-Assy, Dash[04.1991 -] UZZ30 |
55101-24120 |
US $384.38 |
||
|
55101
|
55101
90115-06243 Bolt, Weld(For Front Floor Panel, Center)[04.1991 -] UZZ30 |
90115-06243 |
US $1.28 |
||
|
55210
|
55210
55210-24050 Insulator Assy, Dash PanelDASH PANEL [04.1991 -] JZZ31,UZZ30 |
55210-24050 |
US $366.91 |
||
|
55223A
|
55223A
55223-24020 Insulator, Dash Panel, OuterDASH PANEL, OUTER [04.1991 -] UZZ30 |
55223-24020 |
US $90.27 |
||
|
57104A
|
57104A
57104-24021 Member Sub-Assy, Front Cross[10.1992 -] JZZ31,UZZ30 |
57104-24021 |
US $149.76 |
||
|
9011906355
|
9011906355
90119-06355 BOLT |
90119-06355 |
from US $0.99 |
||
|
9011906642
|
9011906642
90119-06642
New Genuine Part
|
90119-06642 |
— | ||
| replacement | |||||
|
9011906642
|
9011906642
90119-06512 BOLT WWASHER |
90119-06512 |
US $2.56 |
||
|
9015960397
|
9015960397
90159-60397 New Genuine Part |
90159-60397 |
US $1.05 |
||
|
9016850037
|
9016850037
90168-50037 New Genuine Part |
90168-50037 |
US $1.92 |
||
|
9017906214
|
9017906214
90179-06214 NUT |
90179-06214 |
from US $1.60 |
||
|
9018906005
|
9018906005
90189-06005 CLIP |
90189-06005 |
US $2.08 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9046707128
|
9046707128
90467-07128 New Genuine Part |
90467-07128 |
US $2.24 |
||
|
9046708028
|
9046708028
90467-08028 Clip(For Headlamp Cover Seal) |
90467-08028 |
US $2.56 |
||
|
9046708089
|
9046708089
90467-08089 New Genuine Part |
90467-08089 |
US $1.89 |
||
|
9046708115
|
9046708115
90467-08115
New Genuine Part
|
90467-08115 |
— | ||
|
9046708116
|
9046708116
90467-08116
New Genuine Part
|
90467-08116 |
— | ||
|
9046715023
|
9046715023
90467-15023 CLIP |
90467-15023 |
US $2.62 |
||
|
9046723012
|
9046723012
90467-23012 New Genuine Part |
90467-23012 |
US $2.62 |
||
|
9090467005
|
9090467005
90904-67005 New Genuine Part |
90904-67005 |
US $3.93 |
||
|
9090467006
|
9090467006
90904-67006
New Genuine Part
|
90904-67006 |
— | ||
|
9090467007
|
9090467007
90904-67007
New Genuine Part
|
90904-67007 |
— | ||
|
9095001222
|
9095001222
90950-01222 Plug, Hole |
90950-01222 |
US $3.52 |
||
|
9095001257
|
9095001257
90950-01257
New Genuine Part
|
90950-01257 |
— | ||
| replacement | |||||
|
9095001257
|
9095001257
90950-01956 PLUG HOLE |
90950-01956 |
from US $1.60 |
||
|
9095001310
|
9095001310
90950-01310 Plug, Hole |
90950-01310 |
from US $7.04 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
|
9095001761
|
9095001761
90950-01761 PLUG HOLE |
90950-01761 |
from US $2.73 |
||
|
9095001776
|
9095001776
90950-01776 New Genuine Part |
90950-01776 |
US $2.56 |
||
|
9095001777
|
9095001777
90950-01777 New Genuine Part |
90950-01777 |
US $2.62 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
|
9095006013
|
9095006013
90950-06013 New Genuine Part |
90950-06013 |
US $1.92 |
||
|
9095006069
|
9095006069
90950-06069 Plate, Noise Control, No.2 |
90950-06069 |
US $2.53 |
||
|
9095006108
|
9095006108
90950-06108 COVER HOLE |
90950-06108 |
from US $0.80 |
||
