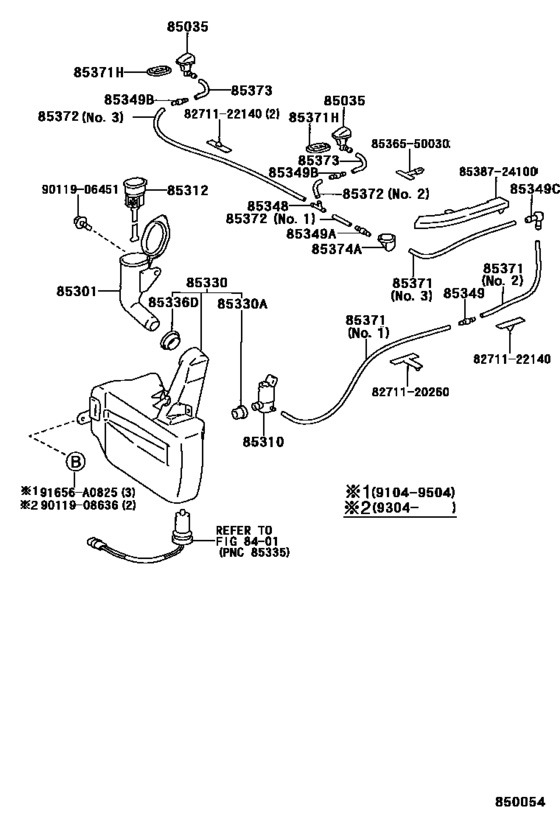

Windshield Washer ([04.1991 - ] (9104- )) Diagram Toyota LEXUS SC
- Year
- 1997 - 2000
- Sales region
- U.S.A.
- Frame
- UZZ30
- ENGINE
- 1UZFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- SC400
- From
- 09.1997
- To
- 07.2000
- Gear Shift Type
- 5FC
- Vehicle Model
- SC400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85385-22020-A2
Nozzle Sub-Assy, Washer
[01.1994 - 08.1998] JZZ31,UZZ30 SUPER WHITE PEARL M,051 |
85385-22020-A2 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-A1
Nozzle Sub-Assy, Washer
[01.1994 - 08.1998] JZZ31,UZZ30 SUPER WHITE PEARL M,051 |
85381-30060-A1 |
— | ||
|
85035
|
85035
85385-24020-A1
Nozzle Sub-Assy, Washer
[08.1998 - 07.2000] JZZ31,UZZ30 WHITE PM.,057 |
85385-24020-A1 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-24010-A1
Nozzle Sub-Assy, Washer
[08.1998 - 07.2000] JZZ31,UZZ30 WHITE PM.,057 |
85385-24010-A1 |
— | ||
|
85035
|
85035
85385-24020-B1
Nozzle Sub-Assy, Washer
[01.1994 - 08.1998] JZZ31,UZZ30 BLUISH SILVER M.,1A0 |
85385-24020-B1 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-B1
Nozzle Sub-Assy, Washer
[01.1994 - 08.1998] JZZ31,UZZ30 BLUISH SILVER M.,1A0 |
85381-30060-B1 |
— | ||
|
85035
|
85035
85385-24020-B2
Nozzle Sub-Assy, Washer
[08.1998 - 07.2000] JZZ31,UZZ30 SILVER ME.,1C0 |
85385-24020-B2 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-B0
Nozzle Sub-Assy, Washer
[08.1998 - 07.2000] JZZ31,UZZ30 SILVER ME.,1C0 |
85381-30060-B0 |
— | ||
|
85035
|
85035
85385-24020-C0
Nozzle Sub-Assy, Washer
[08.1996 - 07.2000] JZZ31,UZZ30 BLACK.,202 |
85385-24020-C0 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-32030
Nozzle Sub-Assy, Washer
[08.1996 - 07.2000] JZZ31,UZZ30 BLACK.,202 |
85385-32030 |
— | ||
|
85035
|
85035
85385-24020-D1
Nozzle Sub-Assy, Washer
[01.1994 - 07.2000] JZZ31,UZZ30 SUPER RED 4,3L2 |
85385-24020-D1 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-D0
Nozzle Sub-Assy, Washer
[01.1994 - 07.2000] JZZ31,UZZ30 SUPER RED 4,3L2 |
85381-30060-D0 |
— | ||
|
85035
|
85035
85385-24020-D3
Nozzle Sub-Assy, Washer
[08.1996 - 08.1998] JZZ31,UZZ30 LT. GRAISH ROSE OP,3K7 |
85385-24020-D3 |
— | ||
|
85035
|
85035
85385-24020-D4
Nozzle Sub-Assy, Washer
[09.1997 - 08.1999] JZZ31,UZZ30 ROSE RED MC.,3M9 |
85385-24020-D4 |
— | ||
|
85035
|
85035
85385-24020-D5
Nozzle Sub-Assy, Washer
[08.1999 - 07.2000] JZZ31,UZZ30 RED MC.,3N1 |
85385-24020-D5 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-D0
Nozzle Sub-Assy, Washer
[08.1999 - 07.2000] JZZ31,UZZ30 RED MC.,3N1 |
85381-30060-D0 |
— | ||
|
85035
|
85035
85385-24020-E1
Nozzle Sub-Assy, Washer
[08.1999 - 07.2000] JZZ31,UZZ30 GRAYISH BROWN ME.,4P9 |
85385-24020-E1 |
— | ||
|
85035
|
85035
85385-24020-G4
Nozzle Sub-Assy, Washer
[09.1997 - 07.2000] JZZ31,UZZ30 DK. GREEN MC.,6Q7 |
85385-24020-G4 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-30060-G0
Nozzle Sub-Assy, Washer
[09.1997 - 07.2000] JZZ31,UZZ30 DK. GREEN MC.,6Q7 |
85381-30060-G0 |
— | ||
|
85035
|
85035
85385-24020-J1
Nozzle Sub-Assy, Washer
[08.1996 - 08.1998] JZZ31,UZZ30 BLUE M.M,8L5 |
85385-24020-J1 |
— | ||
| replacement | |||||
|
85035
|
85035
85385-24010-J1
Nozzle Sub-Assy, Washer
[08.1996 - 08.1998] JZZ31,UZZ30 BLUE M.M,8L5 |
85385-24010-J1 |
— | ||
|
85301
|
85301
85301-24010
Inlet Sub-Assy, Washer
[04.1991 -] JZZ31,UZZ30 |
85301-24010 |
— | ||
|
85310
|
85310
85310-20190
Motor And Pump Assy, Windshield Washer
[04.1991 -] JZZ31,UZZ30 |
85310-20190 |
— | ||
|
85312
|
85312
85312-24010
Packing, Windshield Washer Tank
[04.1991 -] JZZ31,UZZ30 |
85312-24010 |
— | ||
|
85330
|
85330
85315-24080
Jar Assy, Windshield Washer
[09.1992 -] JZZ31,UZZ30 |
85315-24080 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[04.1991 -] JZZ31,UZZ30 |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[04.1991 -] JZZ31,UZZ30 |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[04.1991 -] JZZ31,UZZ30 |
90068-32002 |
US $7.46 |
||
|
85336D
|
85336D
85336-14120
Packing, Windshield Washer Jar
[07.1994 -] JZZ31,UZZ30 |
85336-14120 |
— | ||
|
85348
|
85348
85348-12250 Joint, Windshield Washer Hose, No.1[04.1991 -] JZZ31,UZZ30 |
85348-12250 |
from US $0.55 |
||
|
85349
|
85349
85334-22480 Joint, Windshield Washer Hose, No.1[04.1991 -] JZZ31,UZZ30 |
85334-22480 |
from US $1.40 |
||
|
85349A
|
85349A
85334-22470 Joint, Windshield Washer Hose, No.1[04.1991 -] JZZ31,UZZ30 |
85334-22470 |
US $0.84 |
||
|
85349B
|
85349B
85349-89122 Valve Sub-Assy, Washer[04.1991 - 08.1998] JZZ31,UZZ30 |
85349-89122 |
from US $1.25 |
||
|
85349B
|
85349B
85375-10260 Joint, Windshield Washer Hose, No.1[08.1998 -] JZZ31,UZZ30 |
85375-10260 |
from US $1.62 |
||
|
85349C
|
85349C
85375-24100
Joint, Windshield Washer Hose, No.1
[04.1991 -] JZZ31,UZZ30 |
85375-24100 |
— | ||
|
85371
|
85371
90099-33075 Hose, Windshield Washer (From Motor To Joint)[04.1991 -] JZZ31,UZZ30 *H,L=550,NO.3; JZZ31,UZZ30..4FC,5F L=300,NO.1 |
90099-33075 |
from US $6.57 |
||
|
85371
|
85371
90099-33712
Hose, Windshield Washer (From Motor To Joint)
[04.1991 -] JZZ31,UZZ30 L=1300,NO.2 |
90099-33712 |
— | ||
|
85371H
|
85371H
85371-50010 Cover, Washer Nozzle Service Hole[04.1991 -] JZZ31,UZZ30 |
85371-50010 |
US $1.46 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[09.1997 -] UZZ30 *H,L=100 |
90099-33080 |
from US $6.16 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[01.1994 -] JZZ31,UZZ30 *H,L=200 |
90099-33080 |
from US $6.16 |
||
|
85374A
|
85374A
85374-50010 Protector, Washer Hose[04.1991 -] JZZ31,UZZ30 |
85374-50010 |
US $2.33 |
||
|
91656A0825
|
91656A0825
91656-A0825 Bolt, Radiator Side Support Plate |
91656-A0825 |
US $2.18 |
||
| replacement | |||||
|
91656A0825
|
91656A0825
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
|
8271120260
|
8271120260
82711-20260 Wire, Fuse To Fuse(for Combustion Heater) |
82711-20260 |
US $2.33 |
||
|
8271122140
|
8271122140
82711-22140 Wire, Fuse To Fuse(for Combustion Heater) |
82711-22140 |
US $3.84 |
||
|
8536550030
|
8536550030
85365-50030
Insulator, Windshield Washer Jar
|
85365-50030 |
— | ||
|
8538724100
|
8538724100
85387-24100
Clamp No.1 (for Windseield Washer)
|
85387-24100 |
— | ||
|
9011906451
|
9011906451
90119-06451 BOLT WWASHER |
90119-06451 |
US $1.12 |
||
|
9011908636
|
9011908636
90119-08636 BOLT |
90119-08636 |
US $1.44 |
||
