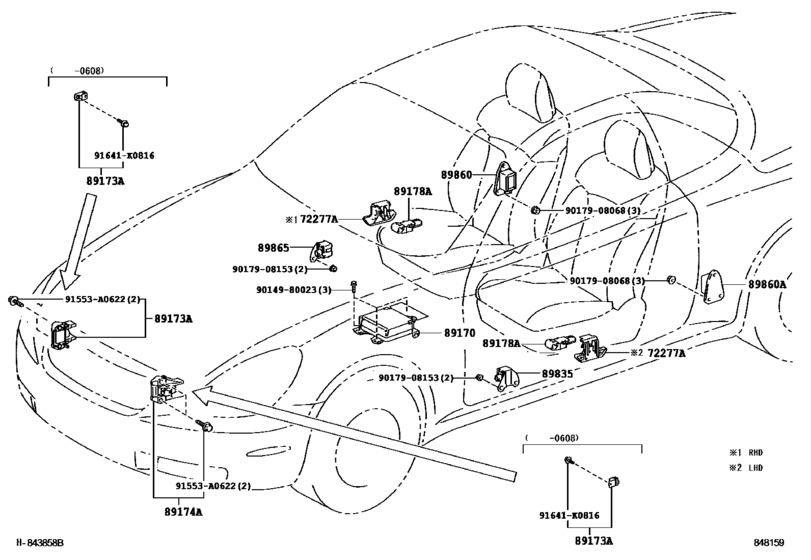

Air Bag ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89170
|
89170
89170-24060
Sensor Assy, Air Bag
[05.2001 - 08.2005] UZZ40..LHD |
89170-24060 |
— | ||
|
89173A
|
89173A
89173-29205 Sensor, Air Bag, Front Rh[05.2001 - 08.2005] UZZ40 |
89173-29205 |
US $179.09 |
||
|
89174A
|
89174A
89173-29205 Sensor, Air Bag, Front Rh[05.2001 - 08.2005] UZZ40 |
89173-29205 |
US $179.09 |
||
|
89835
|
89835
89835-24010 Sensor, Door Side Air Bag, Lh[05.2001 - 08.2005] UZZ40 |
89835-24010 |
US $135.41 |
||
|
89860
|
89860
89860-24020 Sensor Assy, Side Air Bag, Rh[05.2001 - 08.2005] UZZ40 |
89860-24020 |
US $334.88 |
||
|
89860A
|
89860A
89860-24020 Sensor Assy, Side Air Bag, Rh[05.2001 - 08.2005] UZZ40 |
89860-24020 |
US $334.88 |
||
|
89865
|
89865
89865-24010 Sensor, Door Side Air Bag, RhDOOR SIDE AIR BAG, RH [05.2001 - 08.2005] UZZ40 |
89865-24010 |
US $135.41 |
||
|
91553A0622
|
91553A0622
91553-A0622 New Genuine Part |
91553-A0622 |
US $0.96 |
||
|
91641K0816
|
91641K0816
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.08 |
||
|
9014980023
|
9014980023
90149-80023 New Genuine Part |
90149-80023 |
US $1.60 |
||
|
9017908068
|
9017908068
90179-08068 NUT |
90179-08068 |
US $1.60 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
