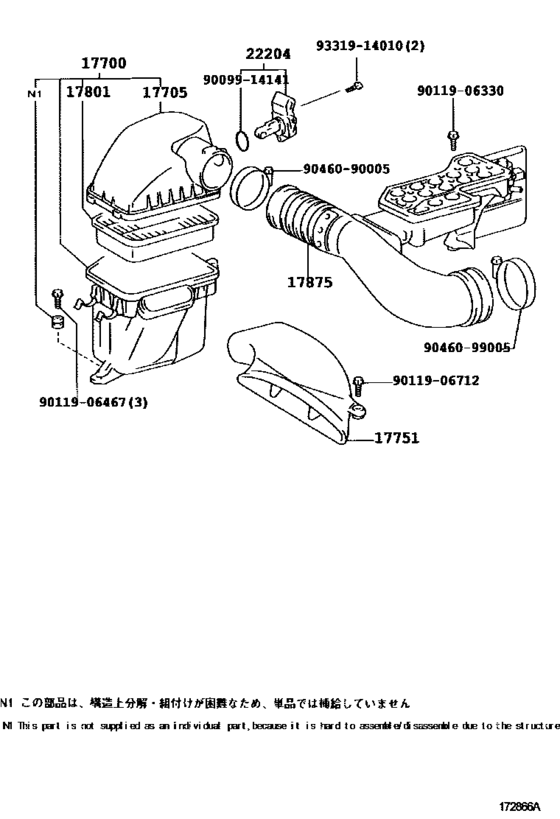

Air Cleaner ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-50240 Cleaner Assy, Air[05.2001 - 05.2002] 3UZFE..UZZ40 |
17700-50240 |
US $336.34 |
||
| replacement | |||||
|
17700
|
17700
17700-50241 Cleaner Assy, Air[05.2001 - 05.2002] 3UZFE..UZZ40 |
17700-50241 |
US $279.55 |
||
|
17700
|
17700
17700-50241 Cleaner Assy, Air[05.2002 - 08.2005] 3UZFE..UZZ40 |
17700-50241 |
US $279.55 |
||
|
17705
|
17705
17705-50150
Cap Sub-Assy, Air Cleaner
[05.2001 - 05.2002] 3UZFE..UZZ40 |
17705-50150 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-50151
Cap Sub-Assy, Air Cleaner
[05.2001 - 05.2002] 3UZFE..UZZ40 |
17705-50151 |
— | ||
|
17705
|
17705
17705-50151
Cap Sub-Assy, Air Cleaner
[05.2002 - 08.2005] 3UZFE..UZZ40 |
17705-50151 |
— | ||
|
17751
|
17751
17751-50090 Inlet, Air Cleaner, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 |
17751-50090 |
US $146.94 |
||
|
17801
|
17801
17801-50060 Element Sub-Assy, Air Cleaner Filter[05.2001 - 08.2005] 3UZFE..UZZ40 |
17801-50060 |
from US $47.12 |
||
|
17875
|
17875
17875-50260 Pipe, Intake Air Connector[05.2001 - 08.2005] 3UZFE..UZZ40 |
17875-50260 |
US $311.58 |
||
|
22204
|
22204
22204-15010 Meter Sub-Assy, Intake Air Flow[05.2001 - 08.2005] 3UZFE..UZZ40 |
22204-15010 |
US $285.12 |
||
|
9009914141
|
9009914141
90099-14141 Ring, O(For Intake Air Flow Meter) |
90099-14141 |
from US $1.21 |
||
|
9011906330
|
9011906330
90119-06330 Bolt |
90119-06330 |
US $1.28 |
||
|
9011906467
|
9011906467
90119-06467 BOLT WWASHER |
90119-06467 |
US $2.56 |
||
|
9011906712
|
9011906712
90119-06712 New Genuine Part |
90119-06712 |
US $2.08 |
||
|
9046090005
|
9046090005
90460-90005 Clamp(For Intake Air Connector) |
90460-90005 |
from US $5.76 |
||
|
9046099005
|
9046099005
90460-99005 Clamp(For Intake Air Connector) |
90460-99005 |
US $5.76 |
||
|
9331914010
|
9331914010
93319-14010 SCREW |
93319-14010 |
from US $0.90 |
||
