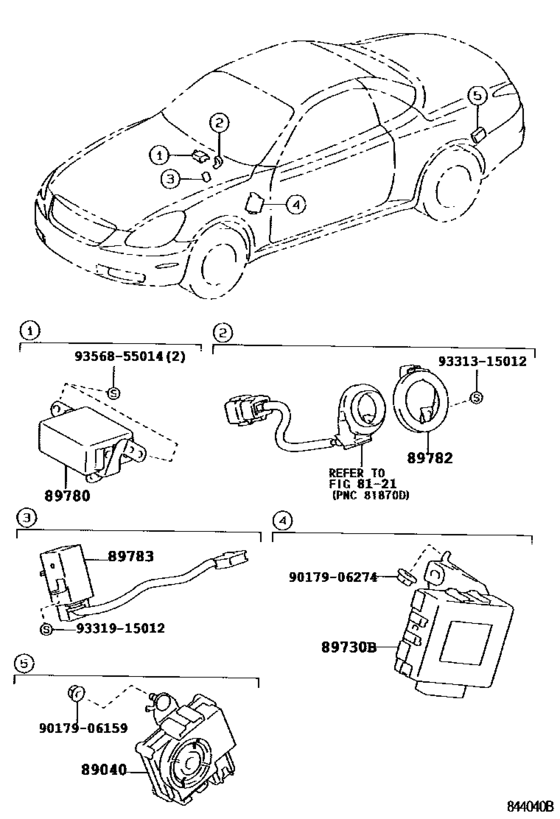

Anti-Theft Device ([05.2001 - ] (0105- )LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89040
|
89040
89040-24010
Siren Assy, Theft Warning
[05.2001 - 08.2005] UZZ40..EUR |
89040-24010 |
— | ||
|
89730B
|
89730B
89730-24050
Computer Assy, Theft Warning
[05.2001 - 03.2002] UZZ40..EUR |
89730-24050 |
— | ||
|
89730B
|
89730B
89730-24060 Computer Assy, Theft Warning[03.2002 - 08.2005] UZZ40 |
89730-24060 |
US $615.89 |
||
|
89780
|
89780
89780-24020 Computer Assy, Transponder KeyTRANSPONDER KEY [05.2001 - 08.2005] UZZ40..LHD |
89780-24020 |
US $231.50 |
||
|
89782
|
89782
89782-30010 Coil, Transponder Key[05.2001 - 08.2005] UZZ40 |
89782-30010 |
US $17.33 |
||
|
89783
|
89783
89783-24030 Amplifier, Transponder Key[05.2001 - 08.2002] UZZ40..5FC |
89783-24030 |
US $123.76 |
||
| replacement | |||||
|
89783
|
89783
89783-24035 Amplifier, Transponder Key[05.2001 - 08.2002] UZZ40..5FC |
89783-24035 |
US $101.92 |
||
|
89783
|
89783
89783-24031 Amplifier, Transponder Key[08.2002 - 08.2005] UZZ40 |
89783-24031 |
US $122.30 |
||
| replacement | |||||
|
89783
|
89783
89783-24035 Amplifier, Transponder Key[08.2002 - 08.2005] UZZ40 |
89783-24035 |
US $101.92 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9331315012
|
9331315012
93313-15012 New Genuine Part |
93313-15012 |
US $1.05 |
||
|
9331915012
|
9331915012
93319-15012 Screw |
93319-15012 |
US $1.12 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
