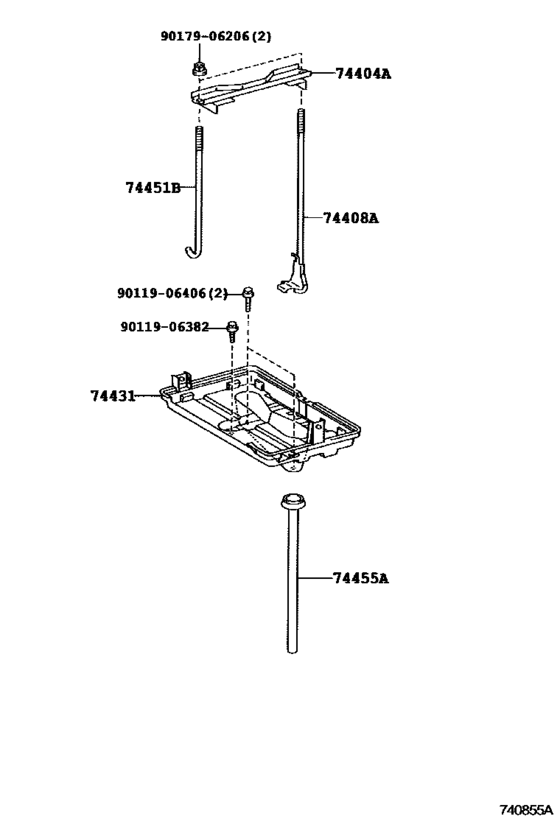

Battery Carrier ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
74404A
|
74404A
74404-24040 Clamp Sub-Assy, Battery[05.2001 - 08.2005] UZZ40 |
74404-24040 |
US $30.75 |
||
|
74408A
|
74408A
74408-24010 Bolt Sub-Assy, Battery Clamp, No.2[05.2001 - 08.2005] UZZ40 |
74408-24010 |
US $8.56 |
||
|
74431
|
74431
74431-24030 Tray, BatteryBATTERY [05.2001 - 08.2005] UZZ40..LHD |
74431-24030 |
US $77.17 |
||
|
74451B
|
74451B
74451-24030 Bolt, Battery Clamp[05.2001 - 08.2005] UZZ40 |
74451-24030 |
US $2.45 |
||
|
74455A
|
74455A
74455-30020
Hose, Battery Drain
[05.2001 - 08.2005] UZZ40 |
74455-30020 |
— | ||
|
9011906382
|
9011906382
90119-06382 Bolt |
90119-06382 |
from US $1.12 |
||
|
9011906406
|
9011906406
90119-06406 BOLT W-WASHER |
90119-06406 |
from US $1.28 |
||
|
9017906206
|
9017906206
90179-06206 Nut |
90179-06206 |
from US $0.78 |
