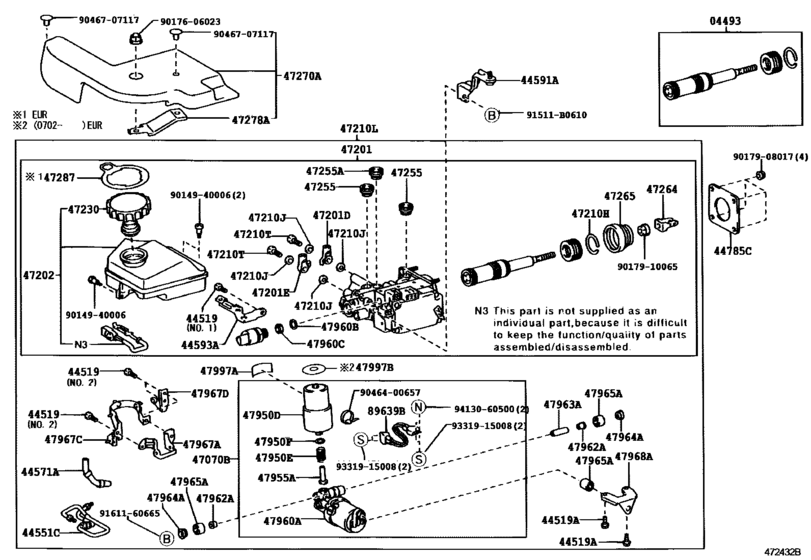

Brake Master Cylinder ([05.2001 - ] (0105- )LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04493
|
04493
04493-30330 Cylinder Kit, Brake Master[05.2001 - 08.2005] UZZ40 |
04493-30330 |
US $72.68 |
||
|
44519
|
44519
44519-24020 Bolt, Brake Actuator[05.2001 - 08.2005] UZZ40 NO.1 |
44519-24020 |
US $0.83 |
||
|
44519
|
44519
44519-30010 Bolt, Brake Actuator[05.2001 - 08.2005] UZZ40 NO.2 |
44519-30010 |
US $5.82 |
||
|
44519A
|
44519A
44519-24020 Bolt, Brake Actuator[05.2001 - 08.2005] UZZ40 |
44519-24020 |
US $0.83 |
||
|
44551C
|
44551C
44551-30160 Tube, Brake Actuator, No.1[05.2001 - 08.2005] UZZ40 |
44551-30160 |
US $11.36 |
||
|
44571A
|
44571A
44571-30080 Hose, Brake Actuator, No.1[05.2001 - 08.2005] UZZ40 |
44571-30080 |
US $7.57 |
||
|
44591A
|
44591A
44591-24090 Bracket, Brake Actuator, No.1BRAKE ACTUATOR, NO.1 [05.2001 - 08.2005] UZZ40..LHD |
44591-24090 |
US $5.68 |
||
|
44593A
|
44593A
44593-24030 Bracket, Brake Actuator, No.3[05.2001 - 08.2005] UZZ40..LHD..EUR |
44593-24030 |
US $3.49 |
||
|
44785C
|
44785C
44785-30040 Gasket, Brake Booster[05.2001 - 08.2005] UZZ40 |
44785-30040 |
from US $5.12 |
||
|
47070B
|
47070B
47070-30060 Pump Assy, Brake Booster W/accumulator[05.2001 - 08.2005] UZZ40 |
47070-30060 |
from US $1,427.46 |
||
|
47201
|
47201
47025-24080 Cylinder Sub-Assy, Brake MasterBRAKE MASTER [05.2001 - 08.2005] UZZ40..LHD..EUR |
47025-24080 |
US $1,616.16 |
||
|
47201D
|
47201D
90405-10046 Union, Brake Master Cylinder, No.1BRAKE MASTER CYLINDER, NO.1 [05.2001 - 08.2005] UZZ40..LHD |
90405-10046 |
US $5.53 |
||
|
47201E
|
47201E
90405-10047 Union, Brake Master Cylinder, No.2BRAKE MASTER CYLINDER, NO.2 [05.2001 - 08.2005] UZZ40..LHD |
90405-10047 |
US $5.53 |
||
|
47202
|
47202
47220-30130 Reservoir Sub-Assy, Brake Master Cylinder[05.2001 - 08.2005] UZZ40 |
47220-30130 |
US $138.03 |
||
|
47210H
|
47210H
90520-32012 Ring, Snap(For Brake Master Cylinder)[05.2001 - 08.2005] UZZ40 |
90520-32012 |
US $0.79 |
||
|
47210J
|
47210J
90029-43002 Gasket(For Clutch Release)[05.2001 - 08.2005] UZZ40..LHD |
90029-43002 |
US $1.02 |
||
|
47210L
|
47210L
47050-24080 Brake Booster Assy, W/master CylinderW/MASTER CYLINDER [05.2001 - 08.2005] UZZ40..LHD..EUR |
47050-24080 |
US $2,387.84 |
||
|
47210T
|
47210T
90029-40010 Bolt(For Brake Master Cylinder)[05.2001 - 08.2005] UZZ40..LHD |
90029-40010 |
US $5.68 |
||
|
47230
|
47230
47230-30130 Cap Assy, Brake Master Cylinder Reservoir Filler[05.2001 - 08.2005] UZZ40 |
47230-30130 |
from US $8.50 |
||
|
47255
|
47255
47255-16010 Grommet, Master Cylinder Reservoir[05.2001 - 08.2005] UZZ40 |
47255-16010 |
from US $5.76 |
||
|
47255A
|
47255A
31417-35010 Grommet[05.2001 - 08.2005] UZZ40 |
31417-35010 |
from US $2.08 |
||
|
47264
|
47264
47264-22050
Clevis, Master Cylinder Push Rod
[05.2001 - 08.2005] UZZ40 |
47264-22050 |
— | ||
|
47265
|
47265
90029-70001 Boot, Master Cylinder[05.2001 - 08.2005] UZZ40 |
90029-70001 |
from US $6.64 |
||
|
47270A
|
47270A
47270-24010 Cover Assy, Brake Master CylinderBRAKE MASTER CYLINDER [05.2001 - 08.2005] UZZ40..LHD |
47270-24010 |
US $16.89 |
||
|
47278A
|
47278A
47278-24010 Cover, Brake Master CylinderBRAKE MASTER CYLINDER [05.2001 - 08.2005] UZZ40..LHD |
47278-24010 |
US $12.23 |
||
| replacement | |||||
|
47278A
|
47278A
47270-24010 Cover Assy, Brake Master CylinderBRAKE MASTER CYLINDER [05.2001 - 08.2005] UZZ40..LHD |
47270-24010 |
US $16.89 |
||
|
47287
|
47287
47287-20020 Label, Brake Fluid Information[05.2001 - 08.2005] UZZ40..ARL,EUR |
47287-20020 |
US $3.32 |
||
|
47950D
|
47950D
47950-30010 Accumulator Assy, Brake Booster[05.2001 - 08.2005] UZZ40 |
47950-30010 |
US $348.60 |
||
|
47950E
|
47950E
90501-16160 Spring, Compression(For Brake Booster Accumulator)[05.2001 - 08.2005] UZZ40 |
90501-16160 |
US $1.14 |
||
|
47950F
|
47950F
90301-13014 Ring, O(For Brake Booster Accumulator)[05.2001 - 08.2005] UZZ40 |
90301-13014 |
US $2.56 |
||
|
47955A
|
47955A
47955-30010 Pipe, Brake Booster Accumulator[05.2001 - 08.2005] UZZ40 |
47955-30010 |
US $1.92 |
||
|
47960A
|
47960A
47960-30030 Pump Assy, Brake Booster[05.2001 - 08.2005] UZZ40 |
47960-30030 |
US $1,245.75 |
||
|
47960B
|
47960B
90301-15014 Ring, O(For Drain Plug)[05.2001 - 08.2005] UZZ40 |
90301-15014 |
US $1.31 |
||
|
47960C
|
47960C
90561-16009 Spacer(For Brake Booster Pump Oil Pressure Sensor)[05.2001 - 08.2005] UZZ40 |
90561-16009 |
US $0.61 |
||
|
47962A
|
47962A
47962-60010 Collar, Brake Booster Pump[05.2001 - 08.2005] UZZ40 |
47962-60010 |
from US $1.88 |
||
|
47963A
|
47963A
47963-24010 Shaft, Brake Booster Pump[05.2001 - 08.2005] UZZ40 |
47963-24010 |
US $3.35 |
||
|
47964A
|
47964A
47964-24010 Washer, Brake Booster Pump[05.2001 - 08.2005] UZZ40 |
47964-24010 |
from US $1.38 |
||
|
47965A
|
47965A
47965-24010 Bush, Brake Booster Pump[05.2001 - 08.2005] UZZ40 |
47965-24010 |
US $3.36 |
||
|
47967A
|
47967A
47967-30020 Bracket, Brake Booster Pump, No.1[05.2001 - 08.2005] UZZ40 |
47967-30020 |
US $6.70 |
||
|
47967C
|
47967C
47967-30030 Bracket, Brake Booster Pump, No.2[05.2001 - 08.2005] UZZ40..LHD |
47967-30030 |
US $12.08 |
||
|
47967D
|
47967D
47967-30040 Bracket, Brake Booster Pump, No.3[05.2001 - 08.2005] UZZ40 |
47967-30040 |
US $5.10 |
||
|
47968A
|
47968A
47968-30020 Bracket, Brake Booster Pump, No.2[05.2001 - 08.2005] UZZ40 |
47968-30020 |
US $7.72 |
||
|
47997A
|
47997A
47997-30020 Label, Accumulator Caution, No.1[05.2001 - 08.2005] UZZ40..LHD |
47997-30020 |
US $2.91 |
||
|
89639B
|
89639B
89639-30100 Wire, Brake Control[05.2001 - 08.2005] UZZ40 |
89639-30100 |
US $22.54 |
||
|
91511B0610
|
91511B0610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9014940006
|
9014940006
90149-40006 Bolt |
90149-40006 |
from US $1.44 |
||
|
9017606023
|
9017606023
90176-06023 NUT CAP |
90176-06023 |
from US $0.84 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9017910065
|
9017910065
90179-10065 Nut, Master Cylinder Push Rod Clevis Lock |
90179-10065 |
from US $1.44 |
||
|
9046400657
|
9046400657
90464-00657 CLAMP |
90464-00657 |
US $0.96 |
||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.92 |
||
|
9161160665
|
9161160665
91611-60665 New Genuine Part |
91611-60665 |
US $1.31 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
||
|
9413060500
|
9413060500
94130-60500 NUT |
94130-60500 |
from US $1.89 |
||
