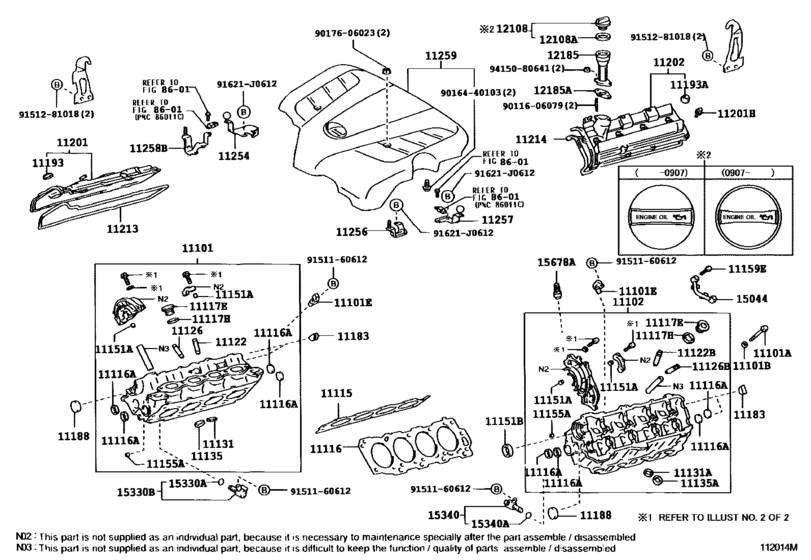

Cylinder Head ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-59158 Head Sub-Assy, Cylinder[05.2001 - 06.2004] 3UZFE..UZZ40 |
11101-59158 |
US $2,256.80 |
||
| replacements | |||||
|
11101
|
11101
11101-59225 Head Sub-Assy, Cylinder[05.2001 - 06.2004] 3UZFE..UZZ40 |
11101-59225 |
from US $1,557.92 |
||
|
11101
|
11101
13715-50070 Valve, Exhaust[05.2001 - 06.2004] 3UZFE..UZZ40 |
13715-50070 |
from US $21.14 |
||
|
11101
|
11101
11101-59215 Head Sub-Assy, Cylinder[06.2004 - 09.2004] 3UZFE..UZZ40 |
11101-59215 |
US $2,256.80 |
||
| replacements | |||||
|
11101
|
11101
11101-59225 Head Sub-Assy, Cylinder[06.2004 - 09.2004] 3UZFE..UZZ40 |
11101-59225 |
from US $1,557.92 |
||
|
11101
|
11101
13715-50070 Valve, Exhaust[06.2004 - 09.2004] 3UZFE..UZZ40 |
13715-50070 |
from US $21.14 |
||
|
11101
|
11101
11101-59225 Head Sub-Assy, Cylinder[09.2004 - 08.2005] 3UZFE..UZZ40 |
11101-59225 |
from US $1,557.92 |
||
|
11101A
|
11101A
90910-02144
Bolt(For Cylinder Head Set)
[05.2001 - 08.2005] 3UZFE..UZZ40 |
90910-02144 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02180 Bolt(For Cylinder Head Set)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90910-02180 |
from US $4.49 |
||
|
11101B
|
11101B
90201-10133 Washer, Plate(For Cylinder Head Set)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90201-10133 |
from US $1.42 |
||
|
11101E
|
11101E
90919-05036 Sensor, Cam Position[05.2001 - 08.2005] 3UZFE..UZZ40 |
90919-05036 |
from US $58.82 |
||
|
11102
|
11102
11102-59018 Head, Cylinder, Lh[05.2001 - 05.2004] 3UZFE..UZZ40 |
11102-59018 |
US $2,256.80 |
||
| replacements | |||||
|
11102
|
11102
11102-59085 Head, Cylinder, Lh[05.2001 - 05.2004] 3UZFE..UZZ40 |
11102-59085 |
US $1,557.92 |
||
|
11102
|
11102
11452-50092 Guide, Oil Level Gage[05.2001 - 05.2004] 3UZFE..UZZ40 |
11452-50092 |
US $40.19 |
||
|
11102
|
11102
11452-50101 Guide, Oil Level Gage[05.2001 - 05.2004] 3UZFE..UZZ40 |
11452-50101 |
US $32.76 |
||
|
11102
|
11102
11452-50111 Guide, Oil Level Gage[05.2001 - 05.2004] 3UZFE..UZZ40 |
11452-50111 |
US $41.79 |
||
|
11102
|
11102
11452-50210 Guide, Oil Level Gage[05.2001 - 05.2004] 3UZFE..UZZ40 |
11452-50210 |
US $44.70 |
||
|
11102
|
11102
13715-50070 Valve, Exhaust[05.2001 - 05.2004] 3UZFE..UZZ40 |
13715-50070 |
from US $21.14 |
||
|
11102
|
11102
11102-59065 Head, Cylinder, Lh[05.2004 - 06.2004] 3UZFE..UZZ40 |
11102-59065 |
US $2,256.80 |
||
| replacements | |||||
|
11102
|
11102
11102-59085 Head, Cylinder, Lh[05.2004 - 06.2004] 3UZFE..UZZ40 |
11102-59085 |
US $1,557.92 |
||
|
11102
|
11102
13715-50070 Valve, Exhaust[05.2004 - 06.2004] 3UZFE..UZZ40 |
13715-50070 |
from US $21.14 |
||
|
11102
|
11102
11102-59066 Head, Cylinder, Lh[06.2004 - 09.2004] 3UZFE..UZZ40 |
11102-59066 |
US $2,256.80 |
||
| replacements | |||||
|
11102
|
11102
11102-59085 Head, Cylinder, Lh[06.2004 - 09.2004] 3UZFE..UZZ40 |
11102-59085 |
US $1,557.92 |
||
|
11102
|
11102
13715-50070 Valve, Exhaust[06.2004 - 09.2004] 3UZFE..UZZ40 |
13715-50070 |
from US $21.14 |
||
|
11102
|
11102
11102-59085 Head, Cylinder, Lh[09.2004 - 08.2005] 3UZFE..UZZ40 |
11102-59085 |
US $1,557.92 |
||
|
11115
|
11115
11115-50070 Gasket, Cylinder Head[05.2001 - 08.2005] 3UZFE..UZZ40 |
11115-50070 |
from US $69.89 |
||
|
11116
|
11116
11116-50060 Gasket, Cylinder Head, No.2[05.2001 - 08.2005] 3UZFE..UZZ40 |
11116-50060 |
from US $41.03 |
||
|
11116A
|
11116A
96411-63000 Plug, Tight[05.2001 - 08.2005] 3UZFE..UZZ40 |
96411-63000 |
from US $3.36 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 |
90341-27006 |
from US $5.12 |
||
|
11117H
|
11117H
90430-27005 Gasket(For Cylinder Head Screw Plug)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90430-27005 |
from US $1.12 |
||
|
11122
|
11122
11122-20020
Bush, Intake Valve Guide
[05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11122-22040 |
from US $8.46 |
||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[05.2001 - 08.2005] 3UZFE..UZZ40 O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11122B
|
11122B
11122-20020
Bush, Intake Valve Guide
[05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122B
|
11122B
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11122-22040 |
from US $8.46 |
||
|
11122B
|
11122B
11123-20020 Bush, Intake Valve Guide[05.2001 - 08.2005] 3UZFE..UZZ40 O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11126-20020 |
from US $6.81 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[05.2001 - 08.2005] 3UZFE..UZZ40 O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11126B
|
11126B
11126-20020 Bush, Exhaust Valve Guide[05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11126-20020 |
from US $6.81 |
||
|
11126B
|
11126B
11127-20020 Bush, Exhaust Valve Guide[05.2001 - 08.2005] 3UZFE..UZZ40 O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11131
|
11131
11131-50040 Seat, Intake Valve[05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11131-50040 |
US $14.77 |
||
|
11131
|
11131
11132-50040 Seat, Intake Valve[05.2001 - 08.2005] 3UZFE..UZZ40 O/S 0.03 |
11132-50040 |
US $11.50 |
||
|
11131A
|
11131A
11131-50040 Seat, Intake Valve[05.2001 - 08.2005] 3UZFE..UZZ40 STD |
11131-50040 |
US $14.77 |
||
|
11131A
|
11131A
11132-50040 Seat, Intake Valve[05.2001 - 08.2005] 3UZFE..UZZ40 O/S 0.03 |
11132-50040 |
US $11.50 |
||
|
11135
|
11135
11135-50040 Seat, Exhaust Valve[05.2001 - 09.2004] 3UZFE..UZZ40 STD |
11135-50040 |
US $10.34 |
||
|
11135
|
11135
11135-50050 Seat, Exhaust Valve[09.2004 - 08.2005] 3UZFE..UZZ40 STD |
11135-50050 |
US $18.85 |
||
|
11135
|
11135
11136-50040 Seat, Exhaust Valve[05.2001 - 07.2004] 3UZFE..UZZ40 O/S 0.03 |
11136-50040 |
US $16.60 |
||
|
11135
|
11135
11136-50050 Seat, Exhaust Valve[07.2004 - 08.2005] 3UZFE..UZZ40 O/S 0.03 |
11136-50050 |
US $14.77 |
||
|
11135A
|
11135A
11135-50040 Seat, Exhaust Valve[05.2001 - 09.2004] 3UZFE..UZZ40 STD |
11135-50040 |
US $10.34 |
||
|
11135A
|
11135A
11135-50050 Seat, Exhaust Valve[09.2004 - 08.2005] 3UZFE..UZZ40 STD |
11135-50050 |
US $18.85 |
||
|
11135A
|
11135A
11136-50040 Seat, Exhaust Valve[05.2001 - 07.2004] 3UZFE..UZZ40 O/S 0.03 |
11136-50040 |
US $16.60 |
||
|
11135A
|
11135A
11136-50050 Seat, Exhaust Valve[07.2004 - 08.2005] 3UZFE..UZZ40 O/S 0.03 |
11136-50050 |
US $14.77 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[05.2001 - 08.2005] 3UZFE..UZZ40 L=7,OD=10 |
90253-10006 |
US $0.79 |
||
|
11151B
|
11151B
90311-71001
Seal, Oil(For Camshaft Setting)
[05.2001 - 04.2004] 3UZFE..UZZ40..5FC |
90311-71001 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-71002 Seal, Oil(For Camshaft Setting)[05.2001 - 04.2004] 3UZFE..UZZ40..5FC |
90311-71002 |
from US $15.36 |
||
|
11151B
|
11151B
90311-71002 Seal, Oil(For Camshaft Setting)[04.2004 - 08.2005] 3UZFE..UZZ40 |
90311-71002 |
from US $15.36 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[05.2001 - 08.2005] 3UZFE..UZZ40 |
90253-09001 |
US $2.40 |
||
|
11159E
|
11159E
90119-07012 Bolt(For Camshaft Oil Feed Pipe)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90119-07012 |
from US $1.03 |
||
|
11183
|
11183
11183-50020 Plug, Semicircular[05.2001 - 08.2005] 3UZFE..UZZ40 |
11183-50020 |
US $9.44 |
||
|
11188
|
11188
11188-50010 Plug, Camshaft Housing[05.2001 - 08.2005] 3UZFE..UZZ40 |
11188-50010 |
US $17.48 |
||
|
11193
|
11193
11193-16010
Gasket(For Spark Plug Tube)
[05.2001 - 08.2002] 3UZFE..UZZ40 |
11193-16010 |
— | ||
| replacement | |||||
|
11193
|
11193
11193-70010 Gasket(For Spark Plug Tube)[05.2001 - 08.2002] 3UZFE..UZZ40 |
11193-70010 |
from US $2.32 |
||
|
11193
|
11193
11193-50010 Gasket, Spark Plug Tube[08.2002 - 08.2005] 3UZFE..UZZ40 |
11193-50010 |
from US $2.55 |
||
|
11193A
|
11193A
11193-16010
Gasket(For Spark Plug Tube)
[05.2001 - 08.2002] 3UZFE..UZZ40 |
11193-16010 |
— | ||
| replacement | |||||
|
11193A
|
11193A
11193-70010 Gasket(For Spark Plug Tube)[05.2001 - 08.2002] 3UZFE..UZZ40 |
11193-70010 |
from US $2.32 |
||
|
11193A
|
11193A
11193-50010 Gasket, Spark Plug Tube[08.2002 - 08.2005] 3UZFE..UZZ40 |
11193-50010 |
from US $2.55 |
||
|
11201
|
11201
11201-50031 Cover Sub-Assy, Cylinder Head[05.2001 - 08.2005] 3UZFE..UZZ40 |
11201-50031 |
US $347.98 |
||
| replacement | |||||
|
11201
|
11201
11201-50041 Cover Sub-Assy, Cylinder Head[05.2001 - 08.2005] 3UZFE..UZZ40 |
11201-50041 |
US $359.80 |
||
|
11201H
|
11201H
90109-06163 Bolt(For Cylinder Head Cover)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90109-06163 |
from US $1.33 |
||
|
11202
|
11202
11202-50060 Cover Sub-Assy, Cylinder Head, Lh[05.2001 - 07.2003] 3UZFE..UZZ40..5FC |
11202-50060 |
US $347.98 |
||
| replacements | |||||
|
11202
|
11202
11202-50070 Cover Sub-Assy, Cylinder Head, Lh[05.2001 - 07.2003] 3UZFE..UZZ40..5FC |
11202-50070 |
US $288.29 |
||
|
11202
|
11202
12204-50030 Valve Sub-Assy, Ventilation[05.2001 - 07.2003] 3UZFE..UZZ40..5FC |
12204-50030 |
from US $23.81 |
||
|
11202
|
11202
11202-50070 Cover Sub-Assy, Cylinder Head, Lh[07.2003 - 08.2005] 3UZFE..UZZ40 |
11202-50070 |
US $288.29 |
||
|
11213
|
11213
11213-50030
Gasket, Cylinder Head Cover
[05.2001 - 08.2004] 3UZFE..UZZ40..5FC |
11213-50030 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-50031 Gasket, Cylinder Head Cover[05.2001 - 08.2004] 3UZFE..UZZ40..5FC |
11213-50031 |
from US $17.65 |
||
|
11213
|
11213
11213-50031 Gasket, Cylinder Head Cover[08.2004 - 08.2005] 3UZFE..UZZ40 |
11213-50031 |
from US $17.65 |
||
|
11214
|
11214
11214-50010
Gasket, Cylinder Head Cover, No.2
[05.2001 - 08.2004] 3UZFE..UZZ40..5FC |
11214-50010 |
— | ||
| replacement | |||||
|
11214
|
11214
11214-50011 Gasket, Cylinder Head Cover, No.2[05.2001 - 08.2004] 3UZFE..UZZ40..5FC |
11214-50011 |
from US $15.25 |
||
|
11214
|
11214
11214-50011 Gasket, Cylinder Head Cover, No.2[08.2004 - 08.2005] 3UZFE..UZZ40 |
11214-50011 |
from US $15.25 |
||
|
11254
|
11254
11254-50050 Bracket, V-Bank Cover, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 |
11254-50050 |
US $7.72 |
||
|
11256
|
11256
11256-50030 Bracket, V-Bank Cover, No.2[05.2001 - 08.2005] 3UZFE..UZZ40 |
11256-50030 |
US $11.01 |
||
|
11257
|
11257
11257-50040 Bracket, V-Bank Cover, No.3[05.2001 - 08.2005] 3UZFE..UZZ40 |
11257-50040 |
US $5.82 |
||
|
11258B
|
11258B
11258-50010
Bracket, V-Bank Cover, No.4
[05.2001 - 08.2005] 3UZFE..UZZ40 |
11258-50010 |
— | ||
|
11259
|
11259
11209-50170 Cover, V-Bank[05.2001 - 08.2005] 3UZFE..UZZ40 |
11209-50170 |
US $351.19 |
||
|
12108
|
12108
12180-50040 Cap Sub-Assy, Oil Filler[05.2001 - 08.2005] 3UZFE..UZZ40 |
12180-50040 |
from US $14.98 |
||
|
12108A
|
12108A
12195-50010 Gasket(For Oil Filler Cap)[05.2001 - 08.2005] 3UZFE..UZZ40 |
12195-50010 |
from US $6.10 |
||
|
12185
|
12185
12185-50030 Housing, Oil Filler Cap[05.2001 - 08.2005] 3UZFE..UZZ40 |
12185-50030 |
US $45.43 |
||
|
12185A
|
12185A
12196-50010 Gasket, Oil Filler Cap Housing[05.2001 - 08.2005] 3UZFE..UZZ40 |
12196-50010 |
from US $5.13 |
||
|
15044
|
15044
15044-50020 Pipe Sub-Assy, Camshaft Oil Feed[05.2001 - 08.2005] 3UZFE..UZZ40 |
15044-50020 |
US $10.77 |
||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90099-14137 |
from US $2.15 |
||
|
15330B
|
15330B
15330-50010 Valve Assy, Camshaft Timing Oil Control[05.2001 - 07.2003] 3UZFE..UZZ40 |
15330-50010 |
US $199.47 |
||
| replacement | |||||
|
15330B
|
15330B
15330-50011 Valve Assy, Camshaft Timing Oil Control[05.2001 - 07.2003] 3UZFE..UZZ40 |
15330-50011 |
from US $98.92 |
||
|
15330B
|
15330B
15330-50011 Valve Assy, Camshaft Timing Oil Control[07.2003 - 08.2005] 3UZFE..UZZ40 |
15330-50011 |
from US $98.92 |
||
|
15340
|
15340
15340-50010 Valve Assy, Camshaft Timing Oil Control[05.2001 - 07.2003] 3UZFE..UZZ40 |
15340-50010 |
US $199.47 |
||
| replacement | |||||
|
15340
|
15340
15340-50011 Valve Assy, Camshaft Timing Oil Control[05.2001 - 07.2003] 3UZFE..UZZ40 |
15340-50011 |
from US $103.92 |
||
|
15340
|
15340
15340-50011 Valve Assy, Camshaft Timing Oil Control[07.2003 - 08.2005] 3UZFE..UZZ40 |
15340-50011 |
from US $103.92 |
||
|
15340A
|
15340A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90099-14137 |
from US $2.15 |
||
|
15678A
|
15678A
15678-46020 Filter, Oil Control Valve[05.2001 - 08.2005] 3UZFE..UZZ40 |
15678-46020 |
from US $3.51 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
9011606079
|
9011606079
90116-06079 BOLT STUD |
90116-06079 |
US $2.08 |
||
|
9016440103
|
9016440103
90164-40103 SCREW BINDING |
90164-40103 |
US $1.12 |
||
|
9017606023
|
9017606023
90176-06023 NUT CAP |
90176-06023 |
from US $0.84 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151281018
|
9151281018
91512-81018 New Genuine Part |
91512-81018 |
US $1.10 |
||
|
9415080641
|
9415080641
94150-80641 New Genuine Part |
94150-80641 |
US $0.87 |
||
| replacement | |||||
|
9415080641
|
9415080641
94151-80641 NUT FLANGE |
94151-80641 |
from US $0.96 |
||
