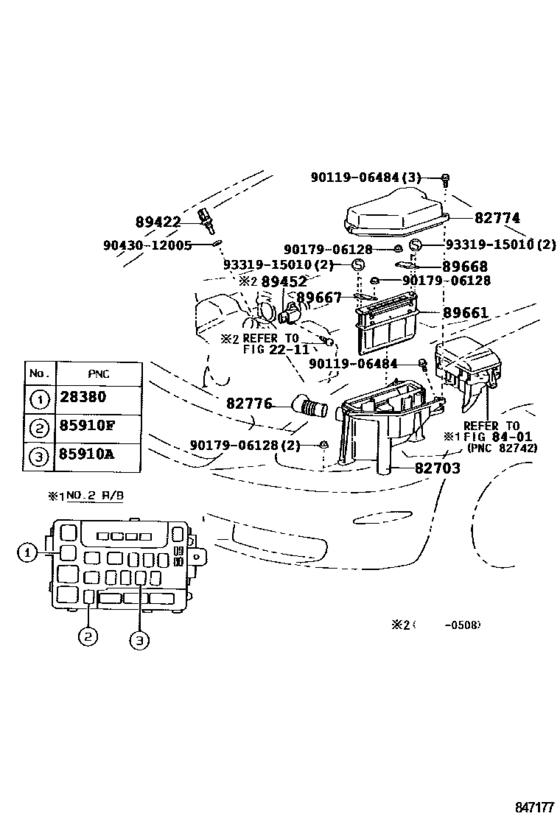

Electronic Fuel Injection System ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90987-03003 Relay Assy, Fuel Pump[05.2001 - 08.2005] 3UZFE..UZZ40 |
90987-03003 |
from US $25.97 |
||
|
82703
|
82703
82703-24020 Box Sub-Assy, Engine Room Ecu[05.2001 - 08.2005] UZZ40 |
82703-24020 |
US $151.42 |
||
|
82774
|
82774
82774-30040 Cover, Engine Room Ecu[05.2001 - 08.2005] UZZ40 |
82774-30040 |
from US $84.91 |
||
|
82776
|
82776
82776-30070 Duct, Engine Room Ecu Outlet[05.2001 - 08.2005] UZZ40 |
82776-30070 |
US $17.30 |
||
|
85910A
|
85910A
90987-02012 Relay, Ignition, No.1[05.2001 - 08.2005] UZZ40 |
90987-02012 |
from US $26.99 |
||
|
85910F
|
85910F
90987-02012 Relay, Ignition, No.1[05.2001 - 08.2005] UZZ40 |
90987-02012 |
from US $26.99 |
||
|
89422
|
89422
89422-30030 Sensor, Water Temperature (For E.f.i.)[05.2001 - 08.2005] UZZ40 |
89422-30030 |
from US $47.92 |
||
|
89452
|
89452
89452-30150 Sensor, Throttle Position (For E.f.i.)[05.2001 - 08.2005] UZZ40 |
89452-30150 |
from US $158.89 |
||
|
89661
|
89661
89661-24630
Computer, Engine Control
[05.2001 - 08.2005] UZZ40..EUR |
89661-24630 |
— | ||
|
89661
|
89661
89661-24690
Computer, Engine Control
[08.2002 - 08.2005] UZZ40..ARL,GCC; UZZ40..LHD..EUR KOREA SPEC |
89661-24690 |
— | ||
|
89667
|
89667
89667-30280 Bracket, Engine Control Computer[05.2001 - 08.2005] UZZ40 |
89667-30280 |
US $6.99 |
||
|
89668
|
89668
89668-30230 Bracket, Engine Control Computer, No.2[05.2001 - 08.2005] UZZ40 |
89668-30230 |
US $8.15 |
||
|
9011906484
|
9011906484
90119-06484
New Genuine Part
|
90119-06484 |
— | ||
| replacement | |||||
|
9011906484
|
9011906484
90119-06278 BOLT |
90119-06278 |
US $1.28 |
||
|
9017906128
|
9017906128
90179-06128 NUT |
90179-06128 |
US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
