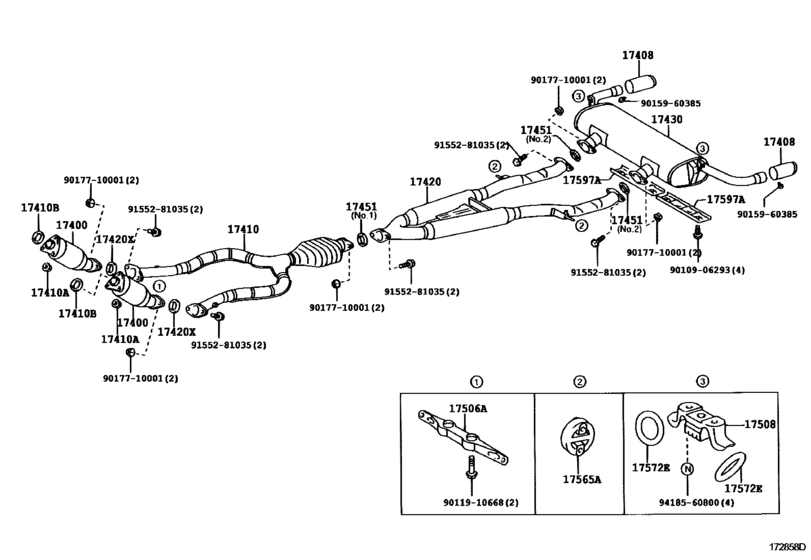

Exhaust Pipe ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
18450-50350 Converter Assy, W/catalyst[05.2001 - 08.2005] 3UZFE..UZZ40 |
18450-50350 |
US $1,166.26 |
||
|
17408
|
17408
17408-50030 Baffle Sub Assy, Exhaust Tail Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 RH |
17408-50030 |
US $121.36 |
||
|
17408
|
17408
17408-50040 Baffle Sub Assy, Exhaust Tail Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 LH |
17408-50040 |
US $121.36 |
||
|
17410
|
17410
17410-50340 Pipe Assy, Exhaust, Front[05.2001 - 08.2005] 3UZFE..UZZ40 *115=TOYOTA/01-/Y |
17410-50340 |
US $1,336.61 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[05.2001 - 08.2005] 3UZFE..UZZ40 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[05.2001 - 08.2005] 3UZFE..UZZ40 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06059 Gasket, Exhaust Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 |
90917-06059 |
from US $4.95 |
||
|
17420
|
17420
17420-50210
Pipe Assy, Exhaust, Center
[05.2001 - 08.2005] 3UZFE..UZZ40..EUR,GCC |
17420-50210 |
— | ||
| replacement | |||||
|
17420
|
17420
17420-50290
Pipe Assy, Exhaust, Center
[05.2001 - 08.2005] 3UZFE..UZZ40..EUR,GCC |
17420-50290 |
— | ||
|
17420X
|
17420X
90917-06078 Gasket, Exhaust Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 |
90917-06078 |
from US $5.44 |
||
| replacement | |||||
|
17420X
|
17420X
90917-A6003 Gasket, Exhaust Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 |
90917-A6003 |
US $19.80 |
||
|
17430
|
17430
17430-50210
Pipe Assy, Exhaust, Tail
[05.2001 - 08.2001] 3UZFE..UZZ40..EUR |
17430-50210 |
— | ||
| replacement | |||||
|
17430
|
17430
17430-50300
Pipe Assy, Exhaust, Tail
[05.2001 - 08.2001] 3UZFE..UZZ40..EUR |
17430-50300 |
— | ||
|
17451
|
17451
90917-06076 Gasket, Exhaust Pipe, Center[05.2001 - 08.2005] 3UZFE..UZZ40 NO.1 |
90917-06076 |
from US $5.60 |
||
|
17451
|
17451
90917-06078 Gasket, Exhaust Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 NO.2 |
90917-06078 |
from US $5.44 |
||
| replacement | |||||
|
17451
|
17451
90917-A6003 Gasket, Exhaust Pipe[05.2001 - 08.2005] 3UZFE..UZZ40 NO.2 |
90917-A6003 |
US $19.80 |
||
|
17506A
|
17506A
17506-50100
Bracket Sub-Assy, Exhaust Pipe No.1 Support
[05.2001 - 08.2005] 3UZFE..UZZ40 |
17506-50100 |
— | ||
|
17508
|
17508
17508-50050 Support Sub-Assy, Exhaust Pipe, No.3[05.2001 - 08.2005] 3UZFE..UZZ40 |
17508-50050 |
US $28.12 |
||
|
17565A
|
17565A
17565-46040 Support, Exhaust Pipe, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 |
17565-46040 |
from US $13.38 |
||
|
17572E
|
17572E
90301-33005 Bolt Or Ring, Exhaust Pipe Front (For Rear)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90301-33005 |
US $12.32 |
||
|
17597A
|
17597A
17597-50070 Protector, Exhaust Pipe, Lower No.5EXHAUST PIPE, LOWER NO.5 [05.2001 - 08.2001] 3UZFE..UZZ40..EUR |
17597-50070 |
US $41.35 |
||
|
9010906293
|
9010906293
90109-06293 BOLTFOLDING SEAT |
90109-06293 |
from US $0.72 |
||
|
9011910668
|
9011910668
90119-10668 BOLT WWASHER |
90119-10668 |
US $2.08 |
||
|
9015960385
|
9015960385
90159-60385 SCREW |
90159-60385 |
US $1.51 |
||
|
9017710001
|
9017710001
90177-10001 NUT LOCK |
90177-10001 |
from US $1.35 |
||
|
9155281035
|
9155281035
91552-81035 BOLT |
91552-81035 |
from US $1.21 |
||
|
9418560800
|
9418560800
94185-60800 NUT |
94185-60800 |
from US $1.01 |
||
