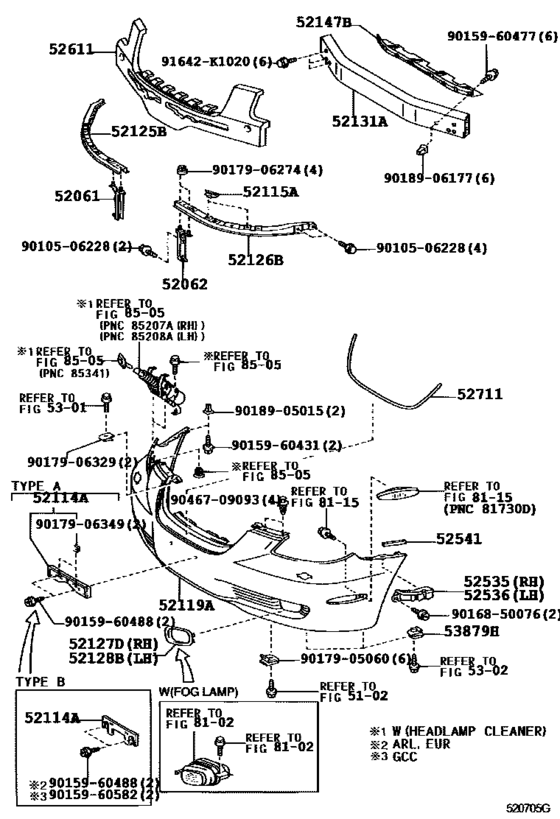

Front Bumper & Bumper Stay ([05.2001 - 08.2005] (0105-0508)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52061
|
52061
52081-24010 Support Sub-Assy, Front Bumper Side, Rh[05.2001 - 08.2005] UZZ40 |
52081-24010 |
US $20.60 |
||
|
52062
|
52062
52081-24010 Support Sub-Assy, Front Bumper Side, Rh[05.2001 - 08.2005] UZZ40 |
52081-24010 |
US $20.60 |
||
|
52114A
|
52114A
52114-20120 Bracket, Front Bumper Extention Mounting[08.2002 - 08.2005] UZZ40..LHD..EUR TYPE B:REFER TO ILLUSTRATION |
52114-20120 |
US $25.51 |
||
|
52114A
|
52114A
52114-24050 Bracket, Front Bumper Extention MountingFRONT BUMPER EXTENTION MOUNTING [05.2001 - 08.2005] UZZ40..EUR TYPE A:REFER TO ILLUSTRATION |
52114-24050 |
US $47.03 |
||
|
52115A
|
52115A
52115-14130 Support, Front Bumper Side, Rh[05.2001 - 08.2005] UZZ40 |
52115-14130 |
US $7.20 |
||
|
52119A
|
52119A
52119-24922
Cover, Front Bumper
[05.2001 - 08.2005] UZZ40..EUR |
52119-24922 |
— | ||
|
52119A
|
52119A
52119-24923 Cover, Front BumperFRONT BUMPER [08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
52119-24923 |
US $985.71 |
||
|
52125B
|
52125B
52125-24030 Extension, Front Bumper Reinforcement, Rh[05.2001 - 08.2005] UZZ40 |
52125-24030 |
US $23.07 |
||
|
52126B
|
52126B
52126-24020 Extension, Front Bumper Reinforcement, Lh[05.2001 - 08.2005] UZZ40 |
52126-24020 |
US $23.07 |
||
|
52127D
|
52127D
52127-24040 Cover, Front Bumper Hole, Rh[05.2001 - 08.2005] UZZ40 |
52127-24040 |
US $5.78 |
||
|
52128B
|
52128B
52128-24040 Cover, Front Bumper Hole, Lh[05.2001 - 08.2005] UZZ40 |
52128-24040 |
US $5.78 |
||
|
52131A
|
52131A
52131-24060 Reinforcement, Front Bumper[05.2001 - 08.2005] UZZ40 |
52131-24060 |
US $515.42 |
||
|
52147B
|
52147B
52147-24030 Bracket, Front Bumper Mounting[05.2001 - 08.2005] UZZ40 |
52147-24030 |
US $44.55 |
||
|
52535
|
52535
52535-24030
Retainer, Front Bumper Side, Rh
[05.2001 - 08.2005] UZZ40 |
52535-24030 |
— | ||
| replacements | |||||
|
52535
|
52535
52535-24031 Retainer, Front Bumper Side, Rh[05.2001 - 08.2005] UZZ40 |
52535-24031 |
US $21.28 |
||
|
52535
|
52535
90168-50076 Screw[05.2001 - 08.2005] UZZ40 |
90168-50076 |
US $1.76 |
||
|
52536
|
52536
52536-24030
Retainer, Front Bumper Side, Lh
[05.2001 - 08.2005] UZZ40 |
52536-24030 |
— | ||
| replacements | |||||
|
52536
|
52536
52536-24031 Retainer, Front Bumper Side, Lh[05.2001 - 08.2005] UZZ40 |
52536-24031 |
US $21.28 |
||
|
52536
|
52536
90168-50076 Screw[05.2001 - 08.2005] UZZ40 |
90168-50076 |
US $1.76 |
||
|
52541
|
52541
52541-24010 Protector, Front Bumper[05.2001 - 08.2005] UZZ40 |
52541-24010 |
US $2.72 |
||
|
52611
|
52611
52611-24050 Absorber, Front Bumper Energy[05.2001 - 08.2005] UZZ40..ARL,EUR |
52611-24050 |
US $144.14 |
||
|
52711
|
52711
52711-24040 Moulding, Front Bumper[05.2001 - 08.2005] UZZ40 |
52711-24040 |
US $57.46 |
||
|
53879H
|
53879H
53879-17020 Retainer, Front Fender Liner[05.2001 - 08.2005] UZZ40 |
53879-17020 |
from US $2.09 |
||
|
91642K1020
|
91642K1020
91642-K1020 BOLT WWASHER |
91642-K1020 |
US $2.72 |
||
|
9010506228
|
9010506228
90105-06228 BOLT WASHER BASED |
90105-06228 |
US $1.92 |
||
|
9015960431
|
9015960431
90159-60431 SCREW |
90159-60431 |
from US $0.78 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.92 |
||
|
9015960488
|
9015960488
90159-60488 SCREW WWASHER |
90159-60488 |
from US $0.90 |
||
|
9015960582
|
9015960582
90159-60582 SCREW WWASHER |
90159-60582 |
from US $0.86 |
||
|
9016850076
|
9016850076
90168-50076 Screw |
90168-50076 |
US $1.76 |
||
|
9017905060
|
9017905060
90179-05060 LEXNUT |
90179-05060 |
from US $0.78 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9017906329
|
9017906329
90179-06329 NUT |
90179-06329 |
US $1.28 |
||
|
9017906349
|
9017906349
90179-06349 NUT |
90179-06349 |
from US $1.38 |
||
|
9018905015
|
9018905015
90189-05015 Nut, Headlamp Self Locking |
90189-05015 |
US $2.56 |
||
|
9018906177
|
9018906177
90189-06177 GROMMET SCREW |
90189-06177 |
from US $0.80 |
||
|
9046709093
|
9046709093
90467-09093 Piece, Rear Bumper |
90467-09093 |
from US $3.68 |
||
