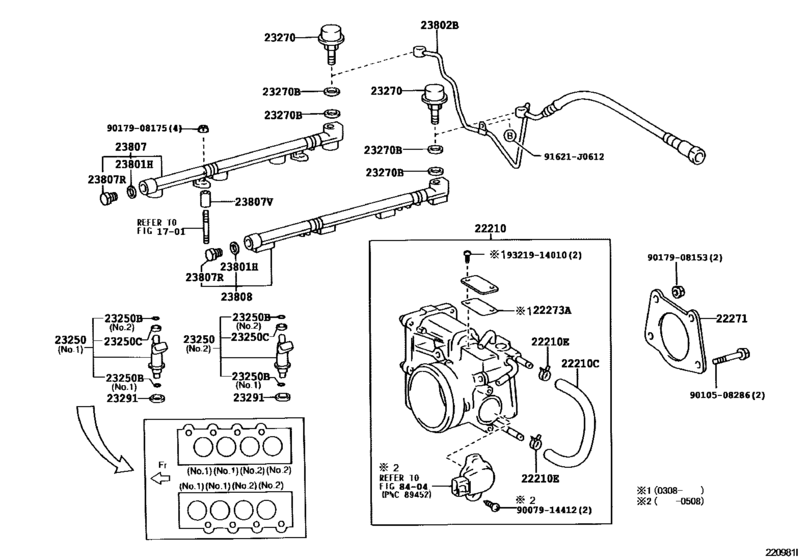

Fuel Injection System ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-50160 Body Assy, Throttle[05.2001 - 08.2005] 3UZFE..UZZ40 |
22030-50160 |
from US $1,136.96 |
||
|
22210C
|
22210C
99556-10300 Hose, Turbo Water, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 *H,L=210 |
99556-10300 |
US $6.08 |
||
|
22210E
|
22210E
96135-51300 Clamp, Hose[05.2001 - 08.2005] 3UZFE..UZZ40 |
96135-51300 |
from US $1.92 |
||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[05.2001 - 08.2005] 3UZFE..UZZ40 |
22271-50042 |
US $34.81 |
||
|
22273A
|
22273A
22273-50020
Gasket, Throttle Body, No.2
[08.2003 - 08.2005] 3UZFE..UZZ40 |
22273-50020 |
— | ||
|
23250
|
23250
23209-50030 Injector Assy, Fuel[05.2001 - 08.2005] 3UZFE..UZZ40..ARL,EUR NO.1 |
23209-50030 |
from US $208.63 |
||
|
23250
|
23250
23209-50050 Injector Assy, Fuel[05.2001 - 08.2005] 3UZFE..UZZ40..ARL,EUR NO.2 |
23209-50050 |
from US $172.59 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[02.2005 - 08.2005] 3UZFE..UZZ40..ARL,EUR NO.1 |
90301-07024 |
from US $2.65 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[02.2005 - 08.2005] 3UZFE..UZZ40..ARL,EUR NO.2 |
90301-07037 |
from US $2.24 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90480-13005 |
from US $2.46 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[05.2001 - 08.2005] 3UZFE..UZZ40 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[05.2001 - 08.2005] 3UZFE..UZZ40 |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[05.2001 - 08.2005] 3UZFE..UZZ40 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12026 Gasket[05.2001 - 08.2005] 3UZFE..UZZ40 DELIVERY PIPE SIDE |
90430-12026 |
from US $0.88 |
||
|
23291
|
23291
23291-20010 Insulator, Injector Vibration[05.2001 - 08.2005] 3UZFE..UZZ40 |
23291-20010 |
from US $2.62 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90430-14008 |
from US $0.94 |
||
|
23802B
|
23802B
23802-50040 Pipe Sub-Assy, Fuel, No.2[05.2001 - 08.2005] 3UZFE..UZZ40 |
23802-50040 |
US $120.56 |
||
|
23807
|
23807
23807-50030 Pipe Sub-Assy, Fuel Delivery[05.2001 - 06.2003] 3UZFE..UZZ40..5FC |
23807-50030 |
US $168.90 |
||
| replacement | |||||
|
23807
|
23807
23807-50031 Pipe Sub-Assy, Fuel Delivery[05.2001 - 06.2003] 3UZFE..UZZ40..5FC |
23807-50031 |
US $116.48 |
||
|
23807
|
23807
23807-50031 Pipe Sub-Assy, Fuel Delivery[06.2003 - 08.2005] 3UZFE..UZZ40 |
23807-50031 |
US $116.48 |
||
|
23807R
|
23807R
90341-14032 Plug, W/head Taper Screw, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 |
90341-14032 |
US $2.53 |
||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[05.2001 - 08.2005] 3UZFE..UZZ40 |
90561-08029 |
from US $1.60 |
||
|
23808
|
23808
23808-50020 Pipe Sub-Assy, Fuel Delivery, No.2[05.2001 - 06.2003] 3UZFE..UZZ40..5FC |
23808-50020 |
US $163.07 |
||
| replacement | |||||
|
23808
|
23808
23808-50021 Pipe Sub-Assy, Fuel Delivery, No.2[05.2001 - 06.2003] 3UZFE..UZZ40..5FC |
23808-50021 |
US $112.11 |
||
|
23808
|
23808
23808-50021 Pipe Sub-Assy, Fuel Delivery, No.2[06.2003 - 08.2005] 3UZFE..UZZ40 |
23808-50021 |
US $112.11 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
|
9007914412
|
9007914412
90079-14412 New Genuine Part |
90079-14412 |
US $1.46 |
||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.16 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9321914010
|
9321914010
93219-14010 Screw |
93219-14010 |
US $1.12 |
||
