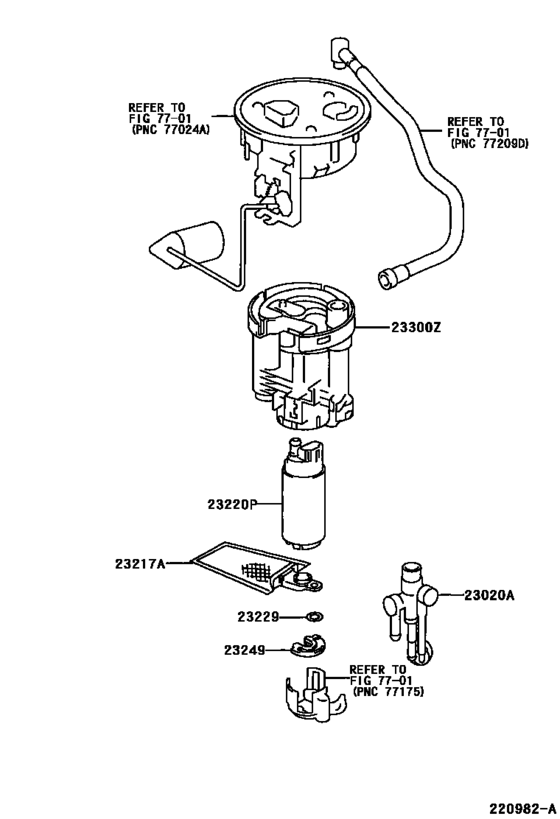

Fuel Injection System ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23020A
|
23020A
23020-46030 Regulator Assy, Fuel Pressure W/jet Pump[05.2001 - 08.2005] 3UZFE..UZZ40 |
23020-46030 |
from US $83.42 |
||
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[05.2001 - 08.2005] 3UZFE..UZZ40 |
23217-46090 |
from US $7.49 |
||
|
23220P
|
23220P
23221-50090 Pump Assy, Fuel[05.2001 - 08.2005] 3UZFE..UZZ40 |
23221-50090 |
US $416.42 |
||
| replacement | |||||
|
23220P
|
23220P
23221-50200 Pump Assy, FuelFUEL [05.2001 - 08.2005] 3UZFE..UZZ40 |
23221-50200 |
from US $520.80 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[05.2001 - 08.2005] 3UZFE..UZZ40 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[05.2001 - 08.2005] 3UZFE..UZZ40 |
23219-03010 |
US $2.55 |
||
|
23249
|
23249
23249-46180 Rubber, Cushion(For Fuel Pump)[05.2001 - 08.2005] 3UZFE..UZZ40 |
23249-46180 |
from US $9.56 |
||
|
23300Z
|
23300Z
23300-21010 Filter Assy, Fuel[05.2001 - 08.2005] 3UZFE..UZZ40 |
23300-21010 |
from US $63.43 |
||
