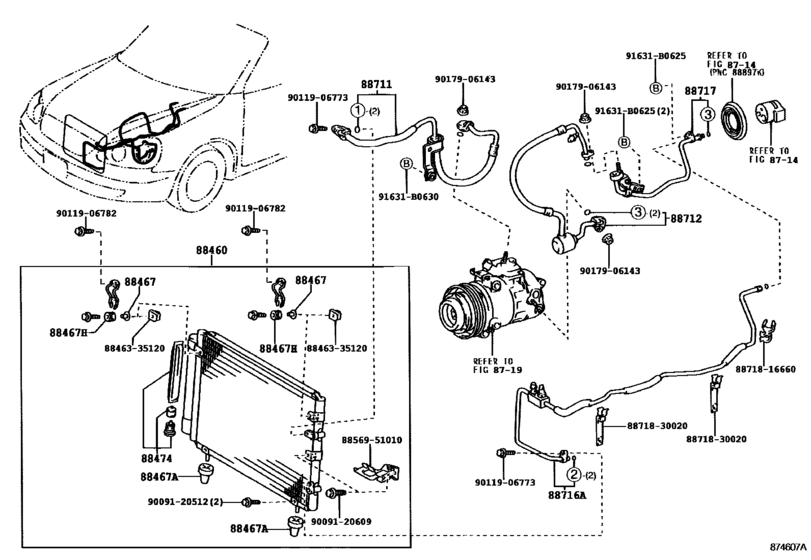

Heating & Air Conditioning - Cooler Piping ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88460
|
88460
88460-24091 Condenser Assy, Cooler[05.2001 - 08.2005] UZZ40 |
88460-24091 |
US $748.38 |
||
|
88467
|
88467
88467-14050
Cushion, Cooler Condenser, No.1
[05.2001 - 08.2005] UZZ40 |
88467-14050 |
— | ||
|
88467A
|
88467A
88467-20190 Cushion, Cooler Condenser, No.1[05.2001 - 08.2005] UZZ40 |
88467-20190 |
US $4.23 |
||
|
88467H
|
88467H
88467-24060
Insulator, Cooler Condenser Mounting
[05.2001 - 08.2005] UZZ40 |
88467-24060 |
— | ||
|
88474
|
88474
88474-47010 Dryer, Cooler[05.2001 - 08.2005] UZZ40 |
88474-47010 |
from US $34.85 |
||
|
88711
|
88711
88703-24030 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [05.2001 - 08.2005] UZZ40..LHD |
88703-24030 |
US $165.98 |
||
|
88712
|
88712
88712-24210 Hose, Cooler Refrigerant Suction, No.1[05.2001 - 08.2005] UZZ40 |
88712-24210 |
US $218.40 |
||
| replacement | |||||
|
88712
|
88712
88712-24211 Hose, Cooler Refrigerant Suction, No.1[05.2001 - 08.2005] UZZ40 |
88712-24211 |
US $182 |
||
|
88716A
|
88716A
88706-24130 Pipe, Cooler Refrigerant Liquid, A[05.2001 - 08.2005] UZZ40 |
88706-24130 |
US $262.08 |
||
|
88717
|
88717
88707-24020 Pipe, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [05.2001 - 08.2005] UZZ40..LHD |
88707-24020 |
US $147.06 |
||
|
91631B0625
|
91631B0625
91631-B0625 BOLT W-WASHER |
91631-B0625 |
from US $0.72 |
||
|
91631B0630
|
91631B0630
91631-B0630 BOLT WWASHER |
91631-B0630 |
US $2.40 |
||
|
8846335120
|
8846335120
88463-35120
Bracket, Cooler Condenser, No.1
|
88463-35120 |
— | ||
|
8856951010
|
8856951010
88569-51010
Clamp (for Cooler Relay)
|
88569-51010 |
— | ||
|
8871816660
|
8871816660
88718-16660
Pipe, Cooler Refrigerant Suction, No.2
|
88718-16660 |
— | ||
|
8871830020
|
8871830020
88718-30020
Pipe, Cooler Refrigerant Suction, No.2
|
88718-30020 |
— | ||
|
9009120512
|
9009120512
90091-20512 BOLT WWASHER |
90091-20512 |
US $0.28 |
||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.44 |
||
|
9011906773
|
9011906773
90119-06773 Bolt |
90119-06773 |
US $0.96 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.72 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.90 |
||
