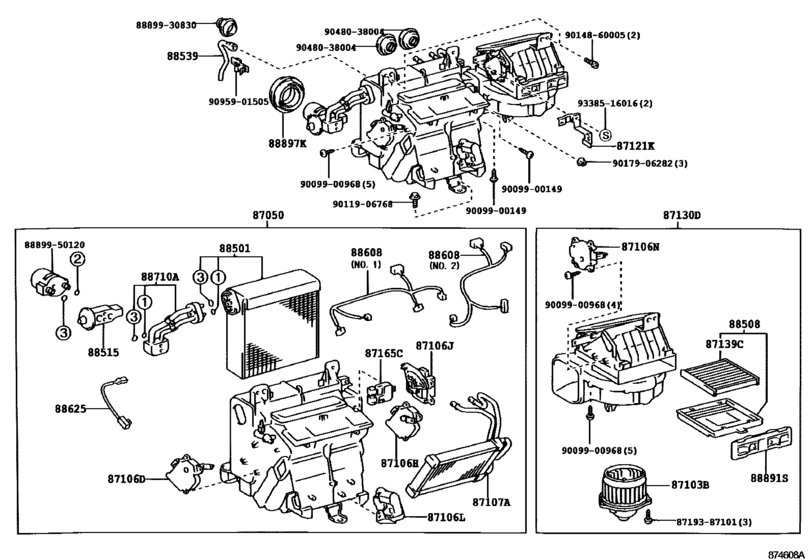

Heating & Air Conditioning - Cooler Unit ([05.2001 - ] (0105- )LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-24010 Radiator Assy, Air ConditionerAIR CONDITIONER [05.2001 - 08.2005] UZZ40..LHD |
87050-24010 |
US $1,630.72 |
||
| replacement | |||||
|
87050
|
87050
87050-24040
Radiator Assy, Air Conditioner
[05.2001 - 08.2005] UZZ40..LHD |
87050-24040 |
— | ||
|
87103B
|
87103B
87103-30390
Motor Sub-Assy, Heater Blower, W/fan
[05.2001 - 08.2005] UZZ40..LHD |
87103-30390 |
— | ||
|
87106D
|
87106D
87106-30350
Servo Sub-Assy, Damper, No.1
[05.2001 - 07.2003] UZZ40..5FC |
87106-30350 |
— | ||
| replacement | |||||
|
87106D
|
87106D
87106-30351 Servo Sub-Assy, Damper, No.1[05.2001 - 07.2003] UZZ40..5FC |
87106-30351 |
from US $129.29 |
||
|
87106D
|
87106D
87106-30351 Servo Sub-Assy, Damper, No.1[07.2003 - 08.2005] UZZ40 |
87106-30351 |
from US $129.29 |
||
|
87106H
|
87106H
87106-30340
Servo Sub-Assy, Damper(For Cooling Unit)
[05.2001 - 07.2003] UZZ40..5FC |
87106-30340 |
— | ||
| replacement | |||||
|
87106H
|
87106H
87106-30341 Servo Sub-Assy, Damper(For Cooling Unit)[05.2001 - 07.2003] UZZ40..5FC |
87106-30341 |
from US $137.09 |
||
|
87106H
|
87106H
87106-30341 Servo Sub-Assy, Damper(For Cooling Unit)[07.2003 - 08.2005] UZZ40 |
87106-30341 |
from US $137.09 |
||
|
87106J
|
87106J
87106-30371 Servo Sub-Assy, Damper(For Mode)DAMPER(FOR MODE) [05.2001 - 08.2005] UZZ40..LHD |
87106-30371 |
US $148.51 |
||
|
87106L
|
87106L
87106-24130
Servo Sub-Assy, Damper
[05.2001 - 08.2005] UZZ40 |
87106-24130 |
— | ||
|
87106N
|
87106N
87106-30390
Servo Sub-Assy, Damper
[05.2001 - 08.2005] UZZ40..LHD |
87106-30390 |
— | ||
|
87107A
|
87107A
87107-30530
Unit Sub-Assy, Heater Radiator
[05.2001 - 08.2005] UZZ40..LHD |
87107-30530 |
— | ||
|
87121K
|
87121K
87121-53010
Bracket, Heater
[05.2001 - 08.2005] UZZ40..LHD |
87121-53010 |
— | ||
|
87130D
|
87130D
87130-24050
Blower Assy
[05.2001 - 08.2005] UZZ40..LHD |
87130-24050 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-24051
Blower Assy
[05.2001 - 08.2005] UZZ40..LHD |
87130-24051 |
— | ||
|
87139C
|
87139C
87139-50030 Filter, Clean Air[05.2001 - 08.2005] UZZ40 |
87139-50030 |
from US $85.84 |
||
|
87165C
|
87165C
87165-22050 Control, Blower Motor[05.2001 - 08.2005] UZZ40..LHD |
87165-22050 |
from US $136.28 |
||
|
88501
|
88501
88501-3A050
Evaporator Sub-Assy, Cooler, No.1
[05.2001 - 08.2005] UZZ40..LHD |
88501-3A050 |
— | ||
|
88508
|
88508
88508-22050 Filter Sub-Assy, Clean Air[05.2001 - 08.2005] UZZ40 |
88508-22050 |
US $88.82 |
||
|
88515
|
88515
88515-22260 Valve, Cooler Expansion[04.2004 - 08.2005] UZZ40 |
88515-22260 |
from US $146.88 |
||
|
88515
|
88515
88515-30690 Valve, Cooler Expansion[05.2001 - 04.2004] UZZ40..5FC |
88515-30690 |
US $139.78 |
||
| replacement | |||||
|
88515
|
88515
88515-22260 Valve, Cooler Expansion[05.2001 - 04.2004] UZZ40..5FC |
88515-22260 |
from US $146.88 |
||
|
88539
|
88539
88539-30820
Hose, Cooler Unit Drain, No.1
[05.2001 - 08.2005] UZZ40..LHD |
88539-30820 |
— | ||
|
88608
|
88608
88608-3A021
Harness Sub-Assy, Wiring Air Conditioner
[05.2001 - 08.2005] UZZ40..LHD NO.1 |
88608-3A021 |
— | ||
|
88608
|
88608
88608-51020
Harness Sub-Assy, Wiring Air Indicator, No.2
[05.2001 - 08.2005] UZZ40..LHD NO.2 |
88608-51020 |
— | ||
|
88710A
|
88710A
88710-3A150
Tube Assy, Air Conditioner
[05.2001 - 08.2005] UZZ40..LHD |
88710-3A150 |
— | ||
|
88891S
|
88891S
88891-30680 Cover, Cooler, No.1[05.2001 - 08.2005] UZZ40 |
88891-30680 |
from US $6.64 |
||
|
88897K
|
88897K
88897-22110
Grommet, (For Cooler Pipe)
[05.2001 - 08.2005] UZZ40 |
88897-22110 |
— | ||
|
8719387101
|
8719387101
87193-87101
SCREW TAPPING
|
87193-87101 |
— | ||
|
8889930830
|
8889930830
88899-30830
Cover, Evaporator
|
88899-30830 |
— | ||
|
8889950120
|
8889950120
88899-50120
Cover, Evaporator
|
88899-50120 |
— | ||
|
9009900149
|
9009900149
90099-00149
New Genuine Part
|
90099-00149 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.84 |
||
|
9011906768
|
9011906768
90119-06768 BOLT WWASHER |
90119-06768 |
from US $1.76 |
||
|
9014860005
|
9014860005
90148-60005 New Genuine Part |
90148-60005 |
US $1.46 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
|
9048038004
|
9048038004
90480-38004
New Genuine Part
|
90480-38004 |
— | ||
|
9095901505
|
9095901505
90959-01505 New Genuine Part |
90959-01505 |
US $5.53 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.28 |
||
