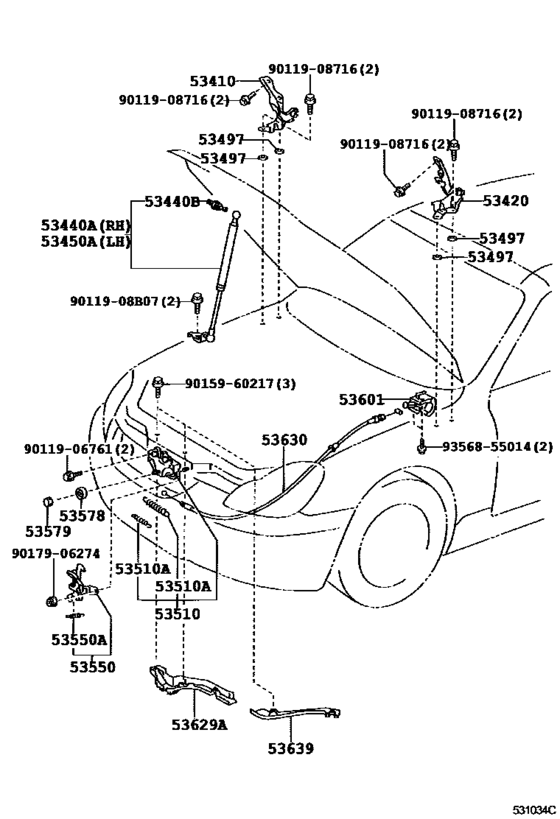

Hood Lock & Hinge ([05.2001 - ] (0105- )LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-24050 Hinge Assy, Hood, Rh[05.2001 - 08.2005] UZZ40 |
53410-24050 |
US $28.83 |
||
|
53420
|
53420
53420-24050 Hinge Assy, Hood, Lh[05.2001 - 08.2005] UZZ40 |
53420-24050 |
US $28.83 |
||
|
53440A
|
53440A
53440-29125 Support Assy, Hood, Rh[05.2001 - 08.2005] UZZ40 |
53440-29125 |
US $134.58 |
||
|
53440B
|
53440B
68961-12050 Bolt, Hood Support, No.1[05.2001 - 08.2005] UZZ40 |
68961-12050 |
from US $4.06 |
||
|
53450A
|
53450A
53450-29095 Support Assy, Hood, Lh[05.2001 - 08.2005] UZZ40 |
53450-29095 |
US $134.58 |
||
|
53497
|
53497
53497-50020 Pad, Hood Hinge, No.1[05.2001 - 08.2005] UZZ40 T=1.0 |
53497-50020 |
US $2.24 |
||
|
53510
|
53510
53510-24060 Lock Assy, HoodHOOD [05.2001 - 08.2005] UZZ40..LHD |
53510-24060 |
US $193.59 |
||
|
53510A
|
53510A
90506-09050 Spring, Tension(For Hood Lock)[05.2001 - 08.2005] UZZ40 WD=0.9,CW=20.5 |
90506-09050 |
from US $0.87 |
||
|
53510A
|
53510A
90506-14061 Spring, Tension(For Hood Lock)[05.2001 - 08.2005] UZZ40 WD=1.4,CW=15 |
90506-14061 |
US $2.48 |
||
|
53550
|
53550
53550-24020 Hook Assy, Hood Auxiliary Catch[05.2001 - 08.2005] UZZ40 |
53550-24020 |
US $35.29 |
||
|
53550A
|
53550A
90506-12063 Spring, Tension(For Hood Lock)[05.2001 - 08.2005] UZZ40 |
90506-12063 |
from US $1.44 |
||
|
53578
|
53578
53578-50010 Nut, Hood Lock[05.2001 - 08.2005] UZZ40 |
53578-50010 |
from US $1.15 |
||
|
53579
|
53579
53579-50010 Cap, Hood Lock Nut[05.2001 - 08.2005] UZZ40 |
53579-50010 |
from US $1.21 |
||
|
53601
|
53601
53601-24030-A0 Lever Sub-Assy, Hood Lock Control[05.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
53601-24030-A0 |
US $25.04 |
||
| replacement | |||||
|
53601
|
53601
53601-24030-C0 Lever Sub-Assy, Hood Lock Control[05.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
53601-24030-C0 |
from US $31.62 |
||
|
53601
|
53601
53601-24030-C0 Lever Sub-Assy, Hood Lock Control[05.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
53601-24030-C0 |
from US $31.62 |
||
|
53629A
|
53629A
53629-24020 Cover, Hood Lock Control CableHOOD LOCK CONTROL CABLE [05.2001 - 08.2005] UZZ40..LHD |
53629-24020 |
US $32.61 |
||
|
53630
|
53630
53630-24080 Cable Assy, Hood Lock ControlHOOD LOCK CONTROL [05.2001 - 08.2005] UZZ40..LHD |
53630-24080 |
US $18.05 |
||
|
53639
|
53639
53639-24020 Cover, Hood Lock Control Cable, No.2HOOD LOCK CONTROL CABLE, NO.2 [05.2001 - 08.2005] UZZ40..LHD |
53639-24020 |
US $19.80 |
||
|
9011908B07
|
9011908B07
90119-08B07 New Genuine Part |
90119-08B07 |
US $1.28 |
||
|
9011906761
|
9011906761
90119-06761
New Genuine Part
|
90119-06761 |
— | ||
| replacement | |||||
|
9011906761
|
9011906761
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.82 |
||
|
9015960217
|
9015960217
90159-60217 SCREW |
90159-60217 |
from US $1.19 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
