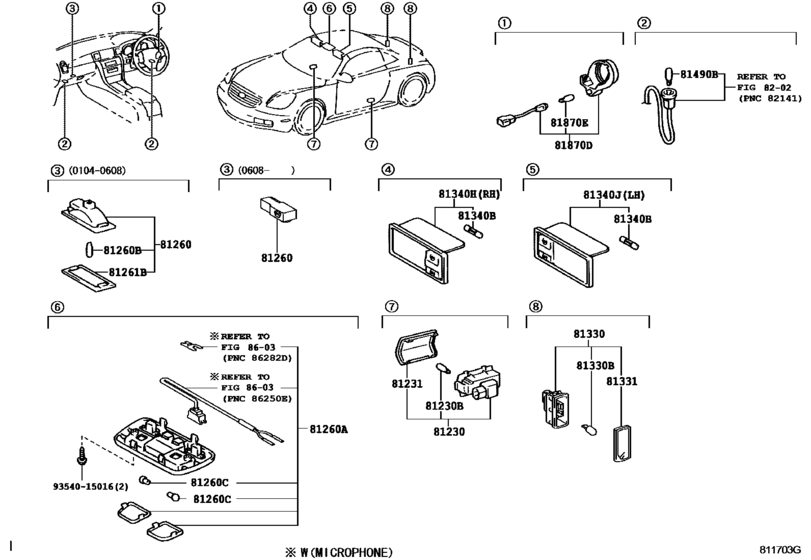

Interior Lamp ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-30170 Lamp Assy, CourtesyCOURTESY [05.2001 - 08.2005] UZZ40..EUR,GCC |
81230-30170 |
US $17.76 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[05.2001 - 08.2005] UZZ40 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50060 Lens, Courtesy LampCOURTESY LAMP [05.2001 - 08.2005] UZZ40..EUR,GCC |
81231-50060 |
US $10.24 |
||
|
81260
|
81260
81260-50010 Lamp Assy, Glove Box[05.2001 - 08.2005] UZZ40 |
81260-50010 |
from US $8.21 |
||
|
81260A
|
81260A
81260-24070-A0 Lamp Assy, Map[05.2001 - 08.2002] UZZ40 ECRU,TRIM0#,20,21 |
81260-24070-A0 |
US $123.76 |
||
| replacement | |||||
|
81260A
|
81260A
81260-24071-A0 Lamp Assy, Map[05.2001 - 08.2002] UZZ40 ECRU,TRIM0#,20,21 |
81260-24071-A0 |
US $129.29 |
||
|
81260A
|
81260A
81260-24071-A0 Lamp Assy, Map[08.2002 - 08.2005] UZZ40..ARL,EUR ECRU,TRIM0#,20,21 |
81260-24071-A0 |
US $129.29 |
||
|
81260A
|
81260A
81260-24120-A0
Lamp Assy, Map
[08.2004 - 08.2005] UZZ40..LHD W(MICROPHONE),ECRU,TRIM0#,20,21 |
81260-24120-A0 |
— | ||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[05.2001 - 08.2005] UZZ40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.07 |
||
|
81260C
|
81260C
90981-12005 Bulb, Room Lamp, No.1[05.2001 - 08.2005] UZZ40 12V 8W |
90981-12005 |
from US $2.24 |
||
|
81261B
|
81261B
81261-50010 Lens,glove Box Lamp[05.2001 - 08.2005] UZZ40 |
81261-50010 |
US $5.11 |
||
|
81330
|
81330
81230-30140 Lamp Assy, Courtesy[05.2001 - 08.2005] UZZ40 |
81230-30140 |
from US $14.96 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[05.2001 - 08.2005] UZZ40 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81331
|
81331
81231-50010 Lens, Courtesy Lamp[05.2001 - 08.2005] UZZ40 |
81231-50010 |
from US $6.18 |
||
|
81340B
|
81340B
90981-14003 Bulb (For Vanity Lamp)[05.2001 - 08.2005] UZZ40 12V 1.5W |
90981-14003 |
from US $0.96 |
||
|
81340H
|
81340H
81340-33090-A2 Lamp Assy, Vanity, Rh[05.2001 - 08.2005] UZZ40 ECRU,TRIM0#,20,21 |
81340-33090-A2 |
US $93.18 |
||
|
81340J
|
81340J
81350-33040-A2 Lamp Assy, Vanity, Lh[05.2001 - 08.2005] UZZ40 ECRU,TRIM0#,20,21 |
81350-33040-A2 |
US $93.18 |
||
|
81490B
|
81490B
90981-11041 Bulb, Ash Receptacle Lamp[05.2001 - 08.2005] UZZ40 14V 1.4W |
90981-11041 |
US $2.24 |
||
|
81870D
|
81870D
81870-30060 Lamp Assy, Key Cylinder[05.2001 - 08.2005] UZZ40 |
81870-30060 |
US $50.38 |
||
|
81870E
|
81870E
90981-11014 Bulb, Position Indicator Lamp[05.2001 - 08.2005] UZZ40 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
