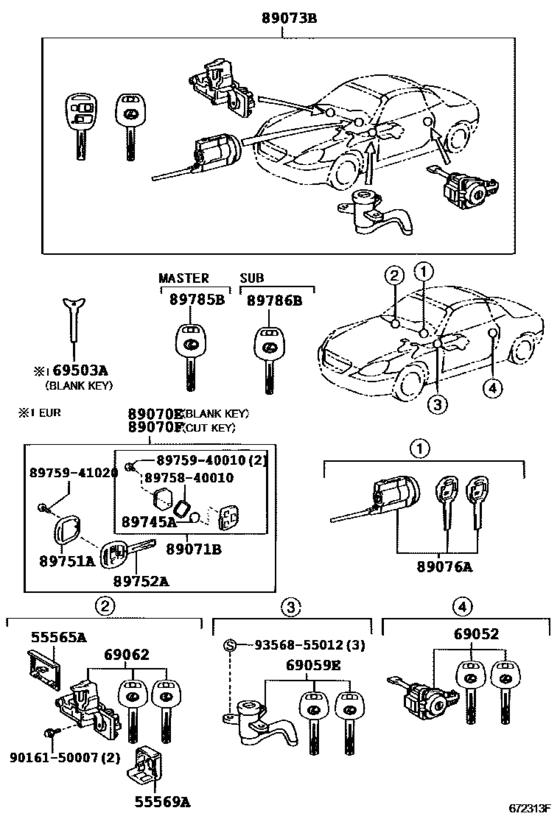

Lock Cylinder Set ([05.2001 - 08.2005] (0105-0508)LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55565A
|
55565A
55565-22020-A2 Handle, Glove Compartment Door Lock[05.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55565-22020-A2 |
US $3.35 |
||
| replacement | |||||
|
55565A
|
55565A
55565-22020-C0
Handle, Glove Compartment Door Lock
[05.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55565-22020-C0 |
— | ||
|
55565A
|
55565A
55565-22020-C0
Handle, Glove Compartment Door Lock
[05.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55565-22020-C0 |
— | ||
|
55569A
|
55569A
55569-22030-A2 Cover, Glove Compartment Door Lock[05.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55569-22030-A2 |
US $4.22 |
||
| replacement | |||||
|
55569A
|
55569A
55569-22030-C0
Cover, Glove Compartment Door Lock
[05.2001 - 08.2005] UZZ40 ECRU,TRIM0# |
55569-22030-C0 |
— | ||
|
55569A
|
55569A
55569-22030-C0
Cover, Glove Compartment Door Lock
[05.2001 - 08.2005] UZZ40 BLACK,TRIM20,21 |
55569-22030-C0 |
— | ||
|
69052
|
69052
69052-24070 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [05.2001 - 08.2005] UZZ40..LHD |
69052-24070 |
US $131.04 |
||
|
69059E
|
69059E
69059-24010 Cylinder & Key Set, Console Compartment LockCONSOLE COMPARTMENT LOCK [05.2001 - 08.2005] UZZ40 |
69059-24010 |
US $119.39 |
||
|
69062
|
69062
69056-24070 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [05.2001 - 08.2005] UZZ40 |
69056-24070 |
US $147.06 |
||
|
69503A
|
69503A
90999-00233
Key, Blank
[05.2001 - 05.2004] UZZ40 MASTER KEY,CARD TYPE |
90999-00233 |
— | ||
|
89070E
|
89070E
89070-24190
Transmitter Assy, Door Control
[05.2001 - 08.2005] UZZ40..EUR MASTER KEY |
89070-24190 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24191
Transmitter Assy, Door Control
[05.2001 - 08.2005] UZZ40..EUR MASTER KEY |
89070-24191 |
— | ||
|
89070E
|
89070E
89070-24200
Transmitter Assy, Door Control (Sub Key)
[05.2001 - 08.2005] UZZ40..EUR SUB KEY |
89070-24200 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24201
Transmitter Assy, Door Control (Sub Key)
[05.2001 - 08.2005] UZZ40..EUR SUB KEY |
89070-24201 |
— | ||
|
89070E
|
89070E
89070-5A190
Transmitter Assy, Door Control
[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC,MASTER KEY |
89070-5A190 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-5A192
Transmitter Assy, Door Control
[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC,MASTER KEY |
89070-5A192 |
— | ||
|
89070E
|
89070E
89070-5A200
Transmitter Assy, Door Control (Sub Key)
[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC,SUB KEY |
89070-5A200 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-5A202
Transmitter Assy, Door Control
[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC,SUB KEY |
89070-5A202 |
— | ||
|
89070F
|
89070F
89070-24250 Transmitter, Door Control (Cut Key)DOOR CONTROL (CUT KEY) [05.2001 - 08.2005] UZZ40..EUR MASTER KEY |
89070-24250 |
US $452.82 |
||
| replacement | |||||
|
89070F
|
89070F
89070-24251
Transmitter Assy, Door Control (Cut Key)
[05.2001 - 08.2005] UZZ40..EUR MASTER KEY |
89070-24251 |
— | ||
|
89070F
|
89070F
89070-24280
Transmitter Assy, Door Control (Sub & Cut Key)
[05.2001 - 08.2005] UZZ40..EUR SUB KEY |
89070-24280 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24281
Transmitter Assy, Door Control (Sub & Cut Key)
[05.2001 - 08.2005] UZZ40..EUR SUB KEY |
89070-24281 |
— | ||
|
89070F
|
89070F
89070-5A210
Transmitter, Door Control (Cut Key)
[08.2002 - 08.2005] UZZ40..LHD..EUR MASTER KEY & KOREA SPEC |
89070-5A210 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-5A212
Transmitter Assy, Door Control
[08.2002 - 08.2005] UZZ40..LHD..EUR MASTER KEY & KOREA SPEC |
89070-5A212 |
— | ||
|
89070F
|
89070F
89070-5A220
Transmitter Assy, Door Control (Sub & Cut Key)
[08.2002 - 08.2005] UZZ40..LHD..EUR SUB KEY & KOREA SPEC |
89070-5A220 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-5A222
Transmitter Assy, Door Control
[08.2002 - 08.2005] UZZ40..LHD..EUR SUB KEY & KOREA SPEC |
89070-5A222 |
— | ||
|
89071B
|
89071B
89071-50241
Module Set, Transmitter Sub-Assy, Door Control
[05.2001 - 08.2005] UZZ40..EUR MASTER KEY |
89071-50241 |
— | ||
|
89071B
|
89071B
89071-50251
Module Set, Transmitter Sub-Assy, Door Control
[05.2001 - 08.2005] UZZ40..EUR SUB KEY |
89071-50251 |
— | ||
|
89071B
|
89071B
89071-50370 Module Set, Transmitter Sub-Assy, Door Control[08.2002 - 08.2005] UZZ40..LHD..EUR MASTER KEY & KOREA SPEC |
89071-50370 |
US $291.20 |
||
|
89071B
|
89071B
89071-50390 Module Set, Transmitter Sub-Assy, Door Control[08.2002 - 08.2005] UZZ40..LHD..EUR SUB KEY & KOREA SPEC |
89071-50390 |
US $199.47 |
||
|
89073B
|
89073B
89076-24030
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2001 - 08.2005] UZZ40..LHD..EUR |
89076-24030 |
— | ||
| replacement | |||||
|
89073B
|
89073B
89076-24031
Cylinder Set, Lock W/transmitter Housing(Less Module)
[05.2001 - 08.2005] UZZ40..LHD..EUR |
89076-24031 |
— | ||
|
89076A
|
89076A
89076-24060 Ign Cylinder Set, Lock W/transmitter HousingLOCK W/TRANSMITTER HOUSING [05.2001 - 07.2005] UZZ40..EUR |
89076-24060 |
US $468.83 |
||
| replacement | |||||
|
89076A
|
89076A
69057-24180
Ign Cylinder Set, Lock W/transmitter Housing
[05.2001 - 07.2005] UZZ40..EUR |
69057-24180 |
— | ||
|
89745A
|
89745A
89745-40010
Transmitter Battery
[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89745-40010 |
— | ||
|
89751A
|
89751A
89751-24050
Cover, Transmitter Housing
[05.2001 - 08.2005] UZZ40..EUR |
89751-24050 |
— | ||
| replacement | |||||
|
89751A
|
89751A
89751-24051
Cover, Transmitter Housing
[05.2001 - 08.2005] UZZ40..EUR |
89751-24051 |
— | ||
|
89751A
|
89751A
89751-50110 Cover, Transmitter HousingTRANSMITTER HOUSING [08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89751-50110 |
US $12.67 |
||
| replacement | |||||
|
89751A
|
89751A
89751-50112 Cover, Transmitter Housing[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89751-50112 |
US $10.48 |
||
|
89752A
|
89752A
89752-33070 Case, Transmitter HousingTRANSMITTER HOUSING [05.2001 - 08.2005] UZZ40 MASTER KEY(BLANK) |
89752-33070 |
US $16.97 |
||
|
89752A
|
89752A
89752-33080 Case, Transmitter HousingTRANSMITTER HOUSING [05.2001 - 08.2005] UZZ40 MASTER KEY(CUT) |
89752-33080 |
US $178.56 |
||
|
89752A
|
89752A
89752-50040
Case, Transmitter Housing
[05.2001 - 08.2005] UZZ40..EUR SUB KEY(CUT) |
89752-50040 |
— | ||
|
89752A
|
89752A
89752-50050
Case, Transmitter Housing
[05.2001 - 08.2005] UZZ40..EUR SUB KEY(BLANK) |
89752-50050 |
— | ||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.11 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
