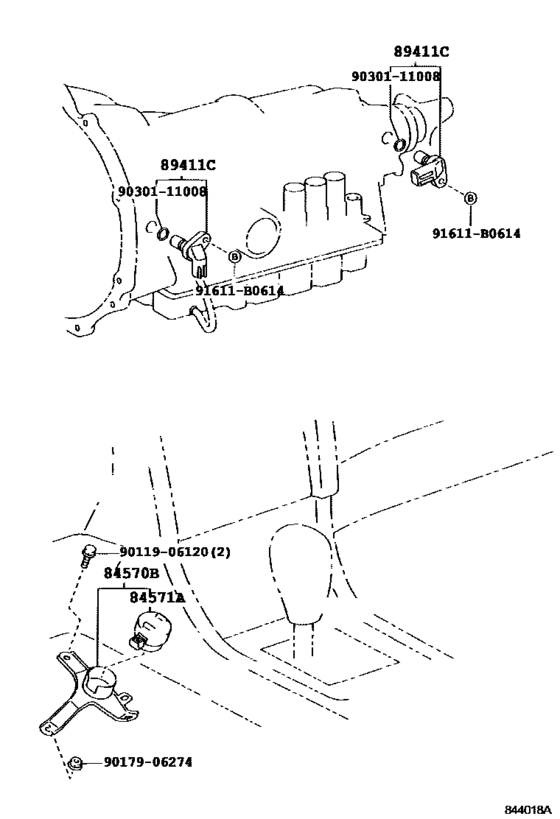

Overdrive & Electronic Controlled Transmission ([05.2001 - 08.2005] (0105-0508)LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84570B
|
84570B
84570-30080 Switch Assy, Kick DownKICK DOWN [05.2001 - 08.2005] UZZ40..LHD..EUR |
84570-30080 |
US $64.06 |
||
|
84571A
|
84571A
84571-50030 Switch, Kick Down[05.2001 - 08.2005] UZZ40..EUR |
84571-50030 |
US $45.57 |
||
|
89411C
|
89411C
89411-50010 Sensor, Speed[05.2001 - 08.2005] UZZ40 |
89411-50010 |
from US $67.18 |
||
|
91611B0614
|
91611B0614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
US $1.76 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9030111008
|
9030111008
90301-11008 Ring,o (For Speedometer Driven Hole Cover) |
90301-11008 |
from US $0.96 |
