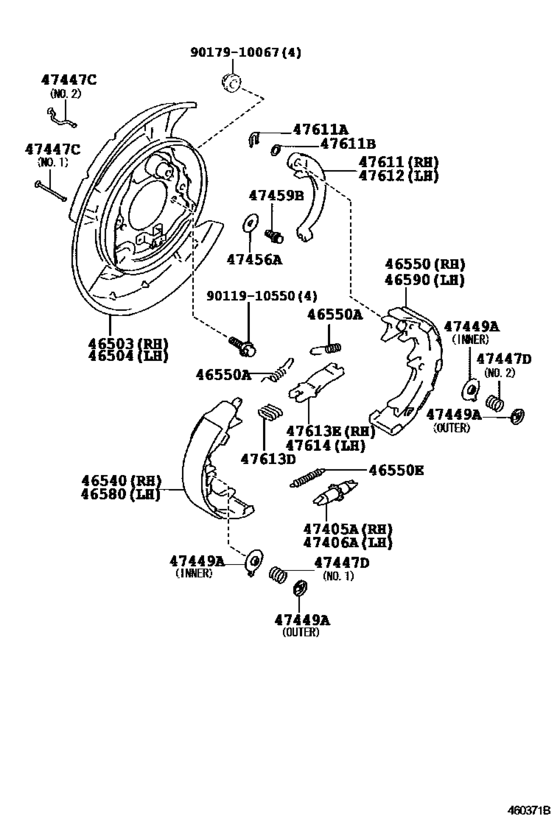

Parking Brake & Cable ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46503
|
46503
46503-30090 Plate Sub-Assy, Parking Brake, Rh[05.2001 - 08.2005] UZZ40 |
46503-30090 |
US $241.92 |
||
|
46504
|
46504
46504-30090 Plate Sub-Assy, Parking Brake, Lh[05.2001 - 08.2005] UZZ40 |
46504-30090 |
US $241.92 |
||
|
46540
|
46540
46540-44010 Shoe Assy, Parking Brake, No.1[05.2001 - 08.2005] UZZ40 |
46540-44010 |
from US $24.39 |
||
|
46550
|
46550
46550-44010 Shoe Assy, Parking Brake, Rh Or Center No.2[05.2001 - 08.2005] UZZ40 |
46550-44010 |
from US $24.69 |
||
|
46550A
|
46550A
90507-20016 Spring, Tension, No.1(For Parking Brake Shoe Return)[05.2001 - 08.2005] UZZ40 |
90507-20016 |
from US $2.08 |
||
|
46550E
|
46550E
90506-12051 Spring, Tension, No.2(For Parking Brake Shoe Return)[05.2001 - 08.2005] UZZ40 |
90506-12051 |
from US $1.92 |
||
|
46580
|
46580
46540-44010 Shoe Assy, Parking Brake, No.1[05.2001 - 08.2005] UZZ40 |
46540-44010 |
from US $24.39 |
||
|
46590
|
46590
46590-44010 Shoe Assy, Parking Brake, Lh No.2[05.2001 - 08.2005] UZZ40 |
46590-44010 |
from US $24.65 |
||
|
47405A
|
47405A
47405-30040 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center[05.2001 - 08.2005] UZZ40 |
47405-30040 |
from US $21.28 |
||
|
47406A
|
47406A
47406-30040 Adjuster Sub-Assy, Parking Brake Shoe, Lh[05.2001 - 08.2005] UZZ40 |
47406-30040 |
from US $21.28 |
||
|
47447C
|
47447C
47447-30020 Pin, Shoe Hold Down Spring(For Front Brake)[05.2001 - 08.2005] UZZ40 NO.1 |
47447-30020 |
from US $1.44 |
||
| replacement | |||||
|
47447C
|
47447C
47447300201
Pin Shoe Hold Down *
[05.2001 - 08.2005] UZZ40 NO.1 |
47447300201 |
— | ||
|
47447C
|
47447C
47447-50010 Pin, Shoe Hold Down Spring(For Parking Brake)[05.2001 - 08.2005] UZZ40 NO.2 |
47447-50010 |
from US $1.48 |
||
|
47447D
|
47447D
90501-16053 Spring, Brake Shoe Hold Down[05.2001 - 08.2005] UZZ40 NO.1 |
90501-16053 |
from US $1.48 |
||
|
47447D
|
47447D
90501-16118 Spring, Compression(For Parking Brake Shoe Hold Down)[05.2001 - 08.2005] UZZ40 NO.2 |
90501-16118 |
from US $1.05 |
||
|
47449A
|
47449A
47449-30030 Cup, Brake Shoe Hold Down[05.2001 - 08.2005] UZZ40 OUTER |
47449-30030 |
from US $1.62 |
||
|
47449A
|
47449A
47449-40010 Cup, Brake Shoe Hold Down[05.2001 - 08.2005] UZZ40 INNER |
47449-40010 |
from US $2.15 |
||
|
47456A
|
47456A
47456-33010 Plate, Shoe Guide(For Parking Brake)[05.2001 - 08.2005] UZZ40 |
47456-33010 |
US $1.92 |
||
|
47459B
|
47459B
47459-30010 Bolt, Parking Brake Shoe Guide Plate Set[05.2001 - 08.2005] UZZ40 |
47459-30010 |
from US $3.71 |
||
|
47611
|
47611
47611-50010 Lever, Parking Brake Shoe, Rh[05.2001 - 08.2005] UZZ40 |
47611-50010 |
US $24.64 |
||
|
47611A
|
47611A
90213-07018 Washer, Type C(For Parking Brake Shoe)[05.2001 - 08.2005] UZZ40 |
90213-07018 |
from US $0.96 |
||
|
47611B
|
47611B
90564-09184 Shim(For Parking Brake Shoe)[05.2001 - 08.2005] UZZ40 T=0.3 |
90564-09184 |
from US $1.44 |
||
|
47611B
|
47611B
90564-09185 Shim(For Parking Brake Shoe)[05.2001 - 08.2005] UZZ40 T=0.6 |
90564-09185 |
from US $1.44 |
||
|
47611B
|
47611B
90564-09186 Shim(For Parking Brake Shoe)[05.2001 - 08.2005] UZZ40 T=0.9 |
90564-09186 |
US $1.44 |
||
|
47612
|
47612
47612-50010 Lever, Parking Brake Shoe, Lh[05.2001 - 08.2005] UZZ40 |
47612-50010 |
US $24.64 |
||
|
47613D
|
47613D
90504-14002 Spring, Compression(For Parking Brake Shoe Strut)[05.2001 - 08.2005] UZZ40 |
90504-14002 |
from US $3.20 |
||
|
47613E
|
47613E
47613-30060 Strut, Parking Brake Shoe, Rh[05.2001 - 08.2005] UZZ40 |
47613-30060 |
US $12.93 |
||
|
47614
|
47614
47614-30060 Strut, Parking Brake Shoe, Lh[05.2001 - 08.2005] UZZ40 |
47614-30060 |
US $12.93 |
||
|
9011910550
|
9011910550
90119-10550 New Genuine Part |
90119-10550 |
US $1.60 |
||
| replacement | |||||
|
9011910550
|
9011910550
90080-11399 New Genuine Part |
90080-11399 |
US $2.73 |
||
|
9017910067
|
9017910067
90179-10067 Nut (For Rear Axle Shaft) |
90179-10067 |
US $1.44 |
||
