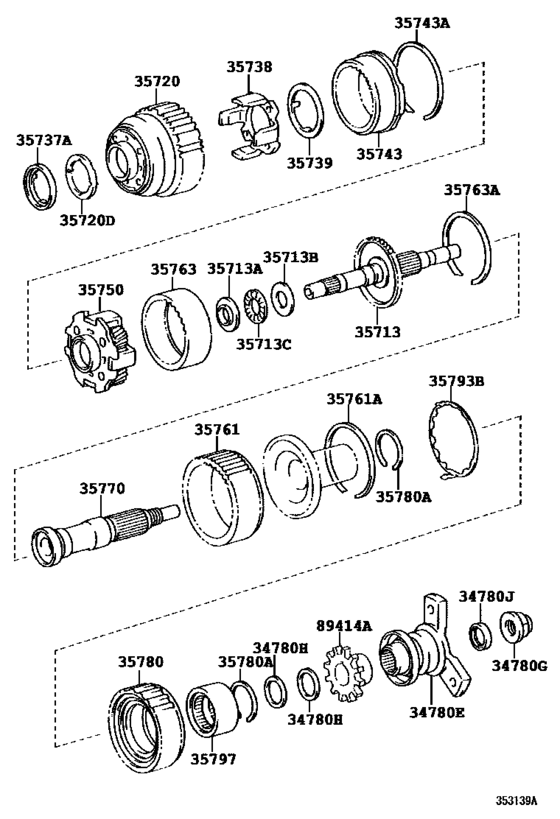

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([05.2001 - 08.2005] A650E (0105-0508)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34780E
|
34780E
34780-30060 Yoke Assy, Flange (For Automatic Transmission)[05.2001 - 08.2005] UZZ40 |
34780-30060 |
US $101.92 |
||
|
34780G
|
34780G
90179-22027 Nut (For Transfer Output Shaft Companion Flange)[05.2001 - 08.2005] UZZ40 |
90179-22027 |
US $3.52 |
||
|
34780H
|
34780H
90560-34004 Washer, Plate (For Flange Yoke)[05.2001 - 08.2005] UZZ40 |
90560-34004 |
US $0.87 |
||
|
34780J
|
34780J
90312-27001 Seal, Type V Oil (For Frange Yoke)[05.2001 - 08.2005] UZZ40 |
90312-27001 |
from US $2.24 |
||
|
35713
|
35713
35713-30060 Shaft, Intermediate[05.2001 - 08.2005] UZZ40 |
35713-30060 |
US $99.01 |
||
|
35713A
|
35713A
35789-30290 Race, Thrust Bearing, No.1 (For Intermediate Shaft)[05.2001 - 08.2005] UZZ40 |
35789-30290 |
US $24.17 |
||
|
35713B
|
35713B
35789-30300 Race, Thrust Bearing, No.2 (For Intermediate Shaft)[05.2001 - 08.2005] UZZ40 |
35789-30300 |
US $9.17 |
||
|
35713C
|
35713C
90374-25008 Bearing, Thrust Needle Roller (For Intermediate Shaft)[05.2001 - 08.2005] UZZ40 |
90374-25008 |
US $12.08 |
||
|
35720
|
35720
35720-30120
Gear Assy, Front Planetary
[05.2001 - 08.2005] UZZ40 |
35720-30120 |
— | ||
|
35720D
|
35720D
90209-57001 Washer (For Front Planetary Gear)[05.2001 - 08.2005] UZZ40 |
90209-57001 |
US $3.06 |
||
|
35737A
|
35737A
35737-30040 Washer, Planetary Carrier Thrust, No.1[05.2001 - 08.2005] UZZ40 |
35737-30040 |
US $44.55 |
||
|
35738
|
35738
35738-30050 Washer, Planetary Carrier Thrust, No.2[05.2001 - 08.2005] UZZ40 |
35738-30050 |
US $13.69 |
||
|
35739
|
35739
35739-30040 Washer, Planetary Carrier Thrust, No.3[05.2001 - 08.2005] UZZ40 |
35739-30040 |
US $26.79 |
||
|
35743
|
35743
35743-30040
Gear, Front Planetary Ring
[05.2001 - 08.2005] UZZ40 |
35743-30040 |
— | ||
|
35743A
|
35743A
90520-99022 Ring, Shaft Snap (For Front Planetary Ring Gear)[05.2001 - 08.2005] UZZ40 |
90520-99022 |
US $4.08 |
||
|
35750
|
35750
35750-30010 Gear Assy, Center Planetary[05.2001 - 08.2005] UZZ40 |
35750-30010 |
US $452.82 |
||
|
35761
|
35761
35761-30030 Gear, Rear Planetary Ring[05.2001 - 08.2005] UZZ40 |
35761-30030 |
US $199.47 |
||
|
35761A
|
35761A
90520-99021 Ring, Hole Snap (For Rear Planetary Ring Gear)[05.2001 - 08.2005] UZZ40 |
90520-99021 |
US $4.08 |
||
|
35763
|
35763
35763-30010 Gear, Center Planetary Ring[05.2001 - 08.2005] UZZ40 |
35763-30010 |
US $131.04 |
||
|
35763A
|
35763A
90520-96004 Ring, Snap(For Center Planetary Ring Gear)[05.2001 - 08.2005] UZZ40 |
90520-96004 |
US $4.08 |
||
|
35770
|
35770
35770-30040 Shaft Assy, Output[05.2001 - 08.2005] UZZ40 |
35770-30040 |
US $907.09 |
||
|
35780
|
35780
35780-30010 Clutch Assy, 1 Way No.2[05.2001 - 08.2005] UZZ40 |
35780-30010 |
US $388.75 |
||
|
35780A
|
35780A
90520-45011 Ring, Snap (For 1 Way Clutch)[05.2001 - 08.2005] UZZ40 |
90520-45011 |
US $3.06 |
||
|
35793B
|
35793B
35793-50030
Retainer, 1 Way Clutch
[05.2001 - 08.2005] UZZ40 |
35793-50030 |
— | ||
|
35797
|
35797
35797-30040 Race, 1 Way Clutch Inner[05.2001 - 02.2003] UZZ40..5FC |
35797-30040 |
US $147.06 |
||
|
35797
|
35797
35797-50020 Race, 1 Way Clutch Inner[02.2003 - 08.2005] UZZ40 |
35797-50020 |
US $145.60 |
||
|
89414A
|
89414A
89414-30080 Rotor, Sensor[05.2001 - 08.2005] UZZ40 |
89414-30080 |
US $20.27 |
