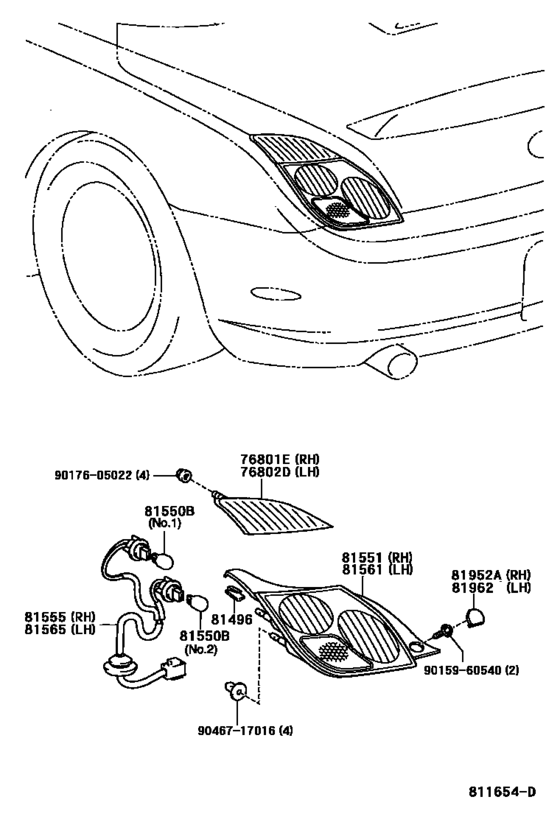

Rear Combination Lamp ([05.2001 - 08.2005] (0105-0508)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76801E
|
76801E
76801-24010 Garnish Sub-Assy, Back Door, Outside Rh[05.2001 - 08.2005] UZZ40 |
76801-24010 |
US $94.64 |
||
|
76802D
|
76802D
76802-24010 Garnish Sub-Assy, Back Door, Outside Lh[05.2001 - 08.2005] UZZ40 |
76802-24010 |
US $94.64 |
||
|
81496
|
81496
81496-24020 Guide, Rear Combination Lamp[05.2001 - 08.2005] UZZ40 |
81496-24020 |
US $3.79 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[05.2001 - 08.2005] UZZ40 12V 21W,NO.1 |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[05.2001 - 08.2005] UZZ40 12V 21/5W,NO.2 |
90981-13044 |
from US $3.65 |
||
|
81551
|
81551
81551-24080 Lens, Rear Combination Lamp, Rh[05.2001 - 08.2005] UZZ40 |
81551-24080 |
US $471.74 |
||
|
81555
|
81555
81555-24080 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2001 - 08.2005] UZZ40 |
81555-24080 |
US $27.37 |
||
|
81561
|
81561
81561-24080 Lens, Rear Combination Lamp, Lh[05.2001 - 08.2005] UZZ40 |
81561-24080 |
US $471.74 |
||
|
81565
|
81565
81555-24080 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[05.2001 - 08.2005] UZZ40 |
81555-24080 |
US $27.37 |
||
|
81952A
|
81952A
81952-22010 Cover, Rear Lamp, Rh[05.2001 - 08.2005] UZZ40 |
81952-22010 |
from US $0.86 |
||
|
81962
|
81962
81952-22010 Cover, Rear Lamp, Rh[05.2001 - 08.2005] UZZ40 |
81952-22010 |
from US $0.86 |
||
|
9015960540
|
9015960540
90159-60540 SCREW W/WASHER |
90159-60540 |
US $1.12 |
||
|
9017605022
|
9017605022
90176-05022 New Genuine Part |
90176-05022 |
US $1.76 |
||
|
9046717016
|
9046717016
90467-17016 CLIP |
90467-17016 |
US $3.04 |
