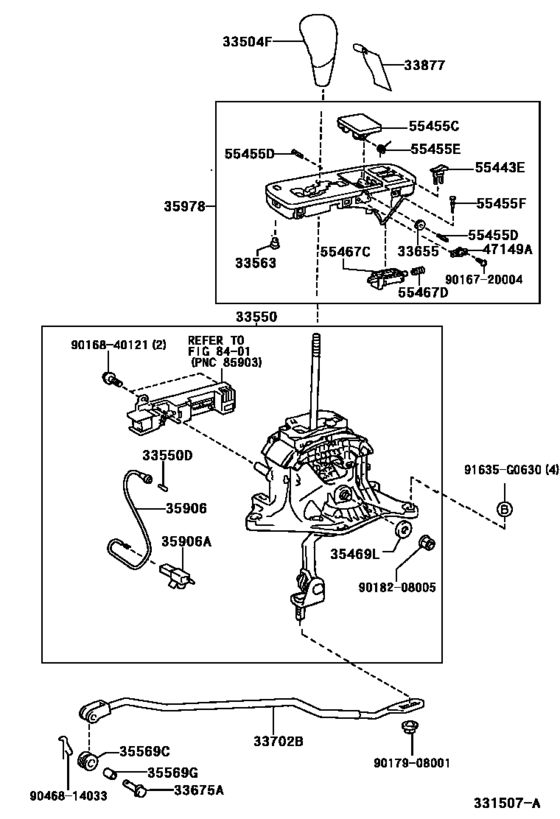

Shift Lever & Retainer ([04.2001 - 08.2005] (0104-0508)) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33504F
|
33504F
33504-24110-B0 Knob Sub-Assy, Shift Lever[05.2001 - 08.2005] UZZ40 ECRU BROWN,TRIM0# |
33504-24110-B0 |
US $302.85 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24130-B0 Knob Sub-Assy, Shift Lever[05.2001 - 08.2005] UZZ40 ECRU BROWN,TRIM0# |
33504-24130-B0 |
US $253.34 |
||
|
33504F
|
33504F
33504-24120-E0 Knob Sub-Assy, Shift Lever[05.2001 - 08.2005] UZZ40 MD.BROWN,TRIM20,21 |
33504-24120-E0 |
US $250.43 |
||
|
33550
|
33550
33550-24201 Floor Shift Assy, TransmissionTRANSMISSION [05.2001 - 08.2005] UZZ40..LHD |
33550-24201 |
US $605.70 |
||
|
33550D
|
33550D
90981-11014 Bulb, Position Indicator Lamp[05.2001 - 08.2005] UZZ40 14V 1.4W |
90981-11014 |
from US $1.92 |
||
|
33563
|
33563
33563-24040 Button, Shift Lock Release[05.2001 - 08.2005] UZZ40 |
33563-24040 |
US $1.16 |
||
|
33655
|
33655
33655-24010 Gear, Shift Lever, No.1[05.2001 - 08.2005] UZZ40 |
33655-24010 |
US $2.48 |
||
|
33675A
|
33675A
33726-35010 Pin, W/hole (For Transmission Control Rod)[05.2001 - 08.2005] UZZ40 |
33726-35010 |
US $3.04 |
||
|
33702B
|
33702B
33702-50060 Rod Sub-Assy, Gear Shifting, No.1 (For Floor Shift)[05.2001 - 08.2005] UZZ40 |
33702-50060 |
US $17.76 |
||
|
33877
|
33877
33877-50030 Label, Shift Lock Information, No.1SHIFT LOCK INFORMATION, NO.1 [05.2001 - 08.2005] UZZ40 |
33877-50030 |
from US $4.95 |
||
|
35469L
|
35469L
94623-10800 Spacer, Shift Lever[05.2001 - 08.2005] UZZ40 |
94623-10800 |
US $1.44 |
||
|
35569C
|
35569C
90480-17013 Grommet[05.2001 - 08.2005] UZZ40 |
90480-17013 |
from US $3.57 |
||
|
35569G
|
35569G
90560-08091 Bush (For Floor Shift Control Shaft)[05.2001 - 08.2005] UZZ40 |
90560-08091 |
US $1.12 |
||
|
35906
|
35906
35906-24020
Wire Sub-Assy, Indicator Lamp
[05.2001 - 08.2005] UZZ40..LHD |
35906-24020 |
— | ||
|
35906A
|
35906A
90980-11967 Housing, Connector Male (For Indicator Lamp Wire)[05.2001 - 08.2005] UZZ40 |
90980-11967 |
US $3.52 |
||
|
35978
|
35978
35978-24030 Indicator, Shift PositionSHIFT POSITION [05.2001 - 08.2005] UZZ40..LHD |
35978-24030 |
US $142.69 |
||
|
47149A
|
47149A
47149-24020 Damper, Return Spring[05.2001 - 08.2005] UZZ40 |
47149-24020 |
US $7.57 |
||
|
55443E
|
55443E
55443-24010 Knob, Shift Position Indicator[05.2001 - 08.2005] UZZ40 |
55443-24010 |
US $9.26 |
||
|
55455C
|
55455C
55455-24040 Panel, Coin Box, No.1[05.2001 - 08.2005] UZZ40 |
55455-24040 |
US $15.43 |
||
|
55455D
|
55455D
90250-03106 Pin, Straight[05.2001 - 08.2005] UZZ40 |
90250-03106 |
US $1.31 |
||
|
55455E
|
55455E
90508-04009 Spring, Torsion(For Coin Box Panel)TORSION(FOR COIN BOX PANEL) [05.2001 - 08.2005] UZZ40..LHD |
90508-04009 |
US $1.46 |
||
|
55455F
|
55455F
90541-02001 Pin, Straght(For Coin Box Panel)[05.2001 - 08.2005] UZZ40 |
90541-02001 |
US $0.96 |
||
|
55467C
|
55467C
55467-24040 Lock, Coin Box[05.2001 - 08.2005] UZZ40 |
55467-24040 |
US $5.24 |
||
|
55467D
|
55467D
90501-05060 Spring, Compression(For Coin Box Lock)[05.2001 - 08.2005] UZZ40 |
90501-05060 |
US $1.05 |
||
|
91635G0630
|
91635G0630
91635-G0630 New Genuine Part |
91635-G0630 |
US $1.46 |
||
| replacement | |||||
|
91635G0630
|
91635G0630
90119-06775 BOLT WWASHER |
90119-06775 |
from US $1.07 |
||
|
9016720004
|
9016720004
90167-20004 New Genuine Part |
90167-20004 |
US $0.61 |
||
|
9016840121
|
9016840121
90168-40121 New Genuine Part |
90168-40121 |
US $1.24 |
||
|
9017908001
|
9017908001
90179-08001
New Genuine Part
|
90179-08001 |
— | ||
| replacement | |||||
|
9017908001
|
9017908001
90179-08233 NUT |
90179-08233 |
from US $1.33 |
||
|
9018208005
|
9018208005
90182-08005 New Genuine Part |
90182-08005 |
US $2.18 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $1.05 |
||
