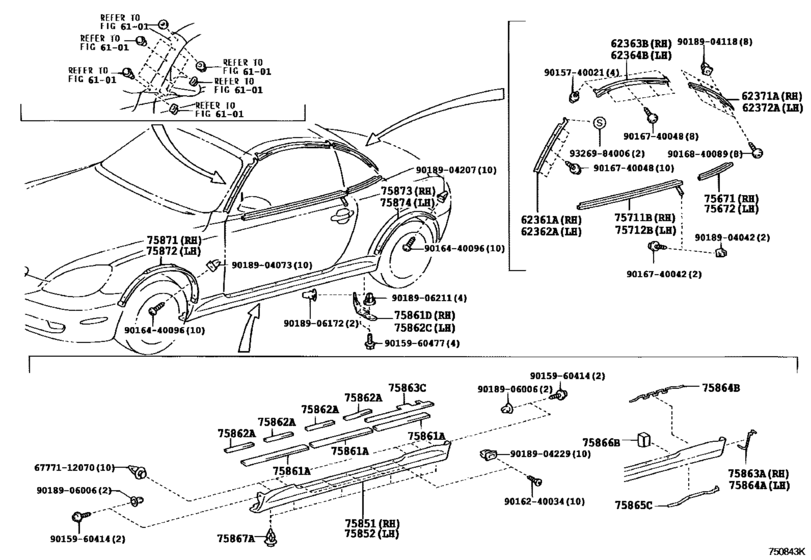

Side Moulding ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62361A
|
62361A
62361-24010 Retainer, Roof Side Rail Weatherstrip, Front Rh[05.2001 - 08.2005] UZZ40 |
62361-24010 |
US $44.55 |
||
|
62362A
|
62362A
62362-24010 Retainer, Roof Side Rail Weatherstrip, Front Lh[05.2001 - 08.2005] UZZ40 |
62362-24010 |
US $44.55 |
||
|
62363B
|
62363B
62363-24010 Retainer, Roof Side Rail Weatherstrip, Center Rh[05.2001 - 08.2005] UZZ40 |
62363-24010 |
US $50.14 |
||
|
62364B
|
62364B
62364-24010 Retainer, Roof Side Rail Weatherstrip, Center Lh[05.2001 - 08.2005] UZZ40 |
62364-24010 |
US $50.14 |
||
|
62371A
|
62371A
62371-24010 Retainer, Roof Side Rail Weather Strip, Rear Rh[05.2001 - 08.2005] UZZ40 |
62371-24010 |
US $52.59 |
||
|
62372A
|
62372A
62372-24010 Retainer, Roof Side Rail Weather Strip, Rear Lh[05.2001 - 08.2005] UZZ40 |
62372-24010 |
US $52.59 |
||
|
75671
|
75671
75671-24010 Moulding, Quarter Belt, Rh[05.2001 - 08.2005] UZZ40 |
75671-24010 |
US $57.91 |
||
|
75672
|
75672
75672-24010 Moulding, Quarter Belt, Lh[05.2001 - 08.2005] UZZ40 |
75672-24010 |
US $57.91 |
||
|
75711B
|
75711B
75711-24070
Moulding, Front Door Belt, Rh
[05.2001 - 09.2003] UZZ40..5FC |
75711-24070 |
— | ||
| replacement | |||||
|
75711B
|
75711B
75711-24071 Moulding, Front Door Belt, Rh[05.2001 - 09.2003] UZZ40..5FC |
75711-24071 |
US $102.12 |
||
|
75711B
|
75711B
75711-24071 Moulding, Front Door Belt, Rh[09.2003 - 08.2005] UZZ40 |
75711-24071 |
US $102.12 |
||
|
75712B
|
75712B
75712-24070
Moulding, Front Door Belt, Lh
[05.2001 - 09.2003] UZZ40..5FC |
75712-24070 |
— | ||
| replacement | |||||
|
75712B
|
75712B
75712-24071 Moulding, Front Door Belt, Lh[05.2001 - 09.2003] UZZ40..5FC |
75712-24071 |
US $102.12 |
||
|
75712B
|
75712B
75712-24071 Moulding, Front Door Belt, Lh[09.2003 - 08.2005] UZZ40 |
75712-24071 |
US $102.12 |
||
|
75851
|
75851
75851-24071-A0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 WHITE PEARL CS.,065 |
75851-24071-A0 |
US $409.14 |
||
|
75851
|
75851
75851-24071-B0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 SILVER ME.,1C0 |
75851-24071-B0 |
US $409.14 |
||
|
75851
|
75851
75851-24071-C0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 *104,BLACK,202 ,3P0 |
75851-24071-C0 |
US $409.14 |
||
|
75851
|
75851
75851-24071-D0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 *104,SUPER RED 5,3P0 |
75851-24071-D0 |
US $409.14 |
||
|
75851
|
75851
75851-24071-D1 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 BLACKISH RED MC.,3P6 |
75851-24071-D1 |
US $407.68 |
||
|
75851
|
75851
75851-24071-E0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 BEIGE M.M.,4Q8 |
75851-24071-E0 |
US $409.14 |
||
|
75851
|
75851
75851-24071-G0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 DARK GREEN MC.,6S6 |
75851-24071-G0 |
US $409.14 |
||
|
75851
|
75851
75851-24071-J0 Moulding, Rocker Panel, Rh[05.2001 - 08.2005] UZZ40 DK.BLUE M.M.,8P4 |
75851-24071-J0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-A0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 WHITE PEARL CS.,065 |
75852-24031-A0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-B0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 SILVER ME.,1C0 |
75852-24031-B0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-C0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 *104,BLACK,202 ,3P0 |
75852-24031-C0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-D0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 *104,SUPER RED 5,3P0 |
75852-24031-D0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-D1 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 BLACKISH RED MC.,3P6 |
75852-24031-D1 |
US $407.68 |
||
|
75852
|
75852
75852-24031-E0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 BEIGE M.M.,4Q8 |
75852-24031-E0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-G0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 DARK GREEN MC.,6S6 |
75852-24031-G0 |
US $409.14 |
||
|
75852
|
75852
75852-24031-J0 Moulding, Rocker Panel, Lh[05.2001 - 08.2005] UZZ40 DK.BLUE M.M.,8P4 |
75852-24031-J0 |
US $409.14 |
||
|
75861A
|
75861A
75861-30120 Protector, Rocker Panel Moulding, No.1[05.2001 - 08.2005] UZZ40 |
75861-30120 |
US $50.77 |
||
|
75861D
|
75861D
75861-30080 Protector, Rocker Panel Moulding, No.1[05.2001 - 08.2005] UZZ40 |
75861-30080 |
US $13.98 |
||
|
75862A
|
75862A
75863-24010 Protector, Rocker Panel Moulding, No.2[05.2001 - 08.2005] UZZ40 |
75863-24010 |
US $3.84 |
||
|
75862C
|
75862C
75862-30070 Protector, Rocker Panel Moulding, No.2[05.2001 - 08.2005] UZZ40 |
75862-30070 |
US $13.98 |
||
|
75863A
|
75863A
61817-24010 Cover, Rocker Panel Moulding End, Rear Rh[05.2001 - 08.2005] UZZ40 |
61817-24010 |
US $2.89 |
||
|
75863C
|
75863C
75864-24010 Protector, Rocker Panel Moulding, No.3[05.2001 - 08.2005] UZZ40 RH |
75864-24010 |
US $4.95 |
||
|
75863C
|
75863C
75865-24010 Protector, Rocker Panel Moulding, No.3[05.2001 - 08.2005] UZZ40 LH |
75865-24010 |
US $5.64 |
||
|
75864A
|
75864A
61817-24010 Cover, Rocker Panel Moulding End, Rear Rh[05.2001 - 08.2005] UZZ40 |
61817-24010 |
US $2.89 |
||
|
75864B
|
75864B
61813-24010 Protector, Rocker Panel Moulding, No.4[05.2001 - 08.2005] UZZ40 |
61813-24010 |
US $4.95 |
||
|
75865C
|
75865C
61814-24010 Protector, Rocker Panel Moulding, No.5[05.2001 - 08.2005] UZZ40 |
61814-24010 |
US $3.99 |
||
|
75866B
|
75866B
75866-24010 Protector, Rocker Panel Moulding, No.6[05.2001 - 08.2005] UZZ40 |
75866-24010 |
US $9.63 |
||
|
75867A
|
75867A
75867-30110 Clip, Rocker Panel Moulding[05.2001 - 08.2005] UZZ40 |
75867-30110 |
US $5.60 |
||
|
75871
|
75871
75871-24060 Moulding, Front Fender Wheel Opening, Rh[05.2001 - 08.2005] UZZ40 |
75871-24060 |
US $53.83 |
||
|
75872
|
75872
75872-24060 Moulding, Front Fender Wheel Opening, Lh[05.2001 - 08.2005] UZZ40 |
75872-24060 |
US $59.28 |
||
|
75873
|
75873
75873-24060 Moulding, Quarter Panel Wheel Opening, Rh[05.2001 - 08.2005] UZZ40 |
75873-24060 |
US $34.36 |
||
|
75874
|
75874
75874-24060 Moulding, Quarter Panel Wheel Opening, Lh[05.2001 - 08.2005] UZZ40 |
75874-24060 |
US $36.81 |
||
|
6777112070
|
6777112070
67771-12070 Retainer, Front Bumper Guard Cover |
67771-12070 |
US $2.72 |
||
|
9015740021
|
9015740021
90157-40021 New Genuine Part |
90157-40021 |
US $1.16 |
||
|
9015960414
|
9015960414
90159-60414 SCREW WWASHER |
90159-60414 |
from US $1.07 |
||
|
9015960477
|
9015960477
90159-60477 SCREW, WWASHER |
90159-60477 |
from US $0.92 |
||
|
9016240034
|
9016240034
90162-40034 SCREW OVAL |
90162-40034 |
from US $0.84 |
||
|
9016440096
|
9016440096
90164-40096 SCREW BINDING |
90164-40096 |
from US $0.38 |
||
|
9016740042
|
9016740042
90167-40042 SCREW PAN TAPPING |
90167-40042 |
US $2.33 |
||
|
9016740048
|
9016740048
90167-40048 SCREW PAN TAPPING |
90167-40048 |
US $0.69 |
||
|
9016840089
|
9016840089
90168-40089 New Genuine Part |
90168-40089 |
US $1.31 |
||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.76 |
||
|
9018904073
|
9018904073
90189-04073 New Genuine Part |
90189-04073 |
US $1.28 |
||
|
9018904118
|
9018904118
90189-04118 GROMMET SCREW |
90189-04118 |
US $2.08 |
||
|
9018904207
|
9018904207
90189-04207 GROMMET, SCREW |
90189-04207 |
from US $0.80 |
||
|
9018904229
|
9018904229
90189-04229 GROMMET SCREW |
90189-04229 |
US $1.92 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.99 |
||
|
9018906172
|
9018906172
90189-06172 GROMMET |
90189-06172 |
from US $0.80 |
||
|
9018906211
|
9018906211
90189-06211 GROMMET SCREW |
90189-06211 |
from US $0.74 |
||
|
9326984006
|
9326984006
93269-84006 New Genuine Part |
93269-84006 |
US $1.16 |
||
