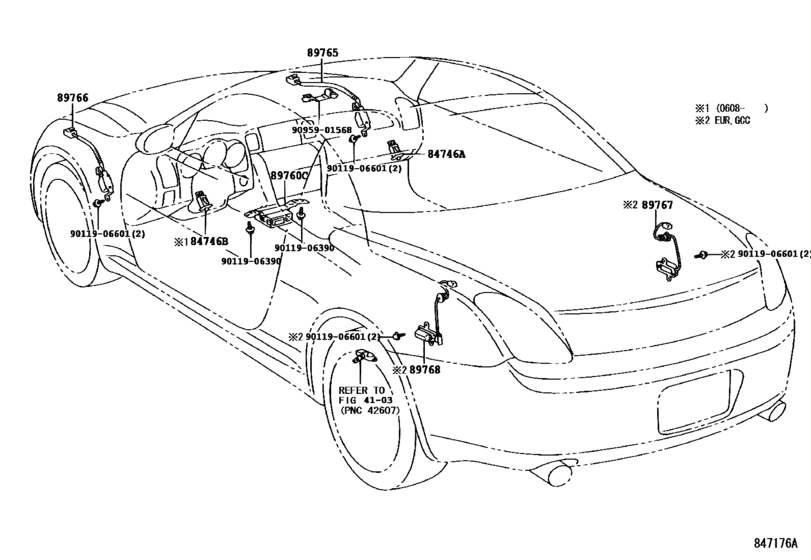

Tire Pressure Warning System ([05.2001 - ] (0105- )LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84746A
|
84746A
84746-24010 Switch, Tire Pressure Warning, No.1[05.2001 - 08.2005] UZZ40 |
84746-24010 |
US $41.35 |
||
| replacement | |||||
|
84746A
|
84746A
84746-60020 Switch, Tire Pressure Warning, No.1TIRE PRESSURE WARNING, NO.1 [05.2001 - 08.2005] UZZ40 |
84746-60020 |
US $41.35 |
||
|
89760C
|
89760C
89760-24020
Receiver Assy, Tire Pressure Monitor
[05.2001 - 08.2005] UZZ40 |
89760-24020 |
— | ||
|
89760C
|
89760C
89760-24030
Receiver Assy, Tire Pressure Monitor
[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89760-24030 |
— | ||
|
89765
|
89765
89765-24010 Antenna, Tire Pressure, Front Rh[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89765-24010 |
US $116.48 |
||
| replacement | |||||
|
89765
|
89765
89765-24011 Antenna, Tire Pressure, Front Rh[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89765-24011 |
US $94.64 |
||
|
89765
|
89765
89765-24020
Antenna, Tire Pressure, Front Rh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89765-24020 |
— | ||
| replacement | |||||
|
89765
|
89765
89765-24021
Antenna, Tire Pressure, Front Rh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89765-24021 |
— | ||
|
89766
|
89766
89766-24010 Antenna, Tire Pressure, Front Lh[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89766-24010 |
US $116.48 |
||
| replacement | |||||
|
89766
|
89766
89766-24011 Antenna, Tire Pressure, Front Lh[08.2002 - 08.2005] UZZ40..LHD..EUR KOREA SPEC |
89766-24011 |
US $94.64 |
||
|
89766
|
89766
89766-24020
Antenna, Tire Pressure, Front Lh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89766-24020 |
— | ||
| replacement | |||||
|
89766
|
89766
89766-24021
Antenna, Tire Pressure, Front Lh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89766-24021 |
— | ||
|
89767
|
89767
89767-24020
Antenna, Tire Pressure, Rear Rh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89767-24020 |
— | ||
| replacement | |||||
|
89767
|
89767
89767-24021
Antenna, Tire Pressure, Rear Rh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89767-24021 |
— | ||
|
89768
|
89768
89768-24020
Antenna, Tire Pressure, Rear Lh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89768-24020 |
— | ||
| replacement | |||||
|
89768
|
89768
89768-24021
Antenna, Tire Pressure, Rear Lh
[05.2001 - 08.2005] UZZ40..EUR,GCC |
89768-24021 |
— | ||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9011906601
|
9011906601
90119-06601
New Genuine Part
|
90119-06601 |
— | ||
|
9095901568
|
9095901568
90959-01568 Clamp |
90959-01568 |
US $1.76 |
||
