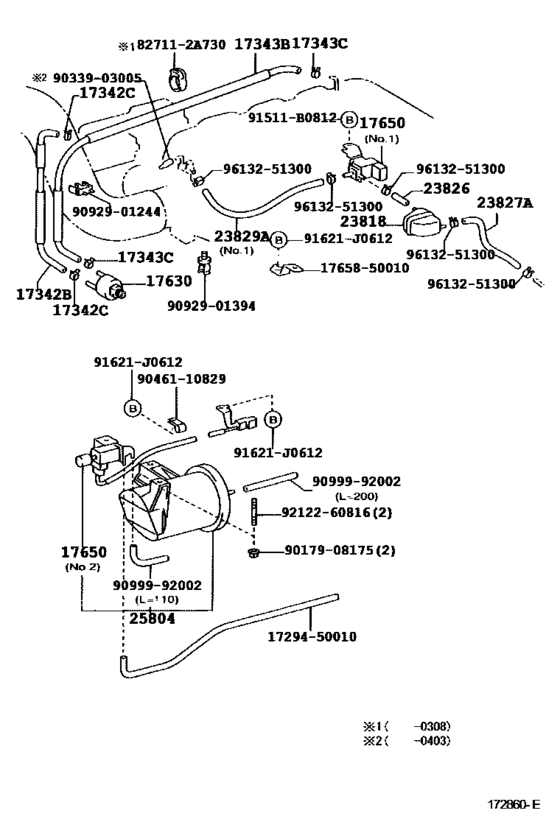

Vacuum Piping ([05.2001 - 08.2005] (0105-0508) ; (0508- )3UZFE..RHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17342B
|
17342B
17342-50090 Hose, No.2(For Idle-Up)[05.2001 - 08.2005] 3UZFE..UZZ40 |
17342-50090 |
from US $23.56 |
||
|
17342C
|
17342C
90467-10099
Clip Or Clamp(For Ventilation Hose)
[05.2001 - 04.2002] 3UZFE..UZZ40 |
90467-10099 |
— | ||
| replacement | |||||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.2001 - 04.2002] 3UZFE..UZZ40 |
96132-51000 |
from US $1.62 |
||
|
17342C
|
17342C
96132-51000 Clip Or Clamp(For Ventilation Hose)[04.2002 - 08.2005] 3UZFE..UZZ40 |
96132-51000 |
from US $1.62 |
||
|
17343B
|
17343B
17343-50070 Hose, No.3(For Idle-Up)[05.2001 - 08.2003] 3UZFE..UZZ40..5FC |
17343-50070 |
US $46.82 |
||
|
17343B
|
17343B
17343-50071 Hose, No.3(For Idle-Up)[08.2003 - 08.2005] 3UZFE..UZZ40 |
17343-50071 |
US $34.81 |
||
|
17343C
|
17343C
90467-10099
Clip Or Clamp(For Ventilation Hose)
[05.2001 - 04.2002] 3UZFE..UZZ40 |
90467-10099 |
— | ||
| replacement | |||||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[05.2001 - 04.2002] 3UZFE..UZZ40 |
96132-51000 |
from US $1.62 |
||
|
17343C
|
17343C
96132-51000 Clip Or Clamp(For Ventilation Hose)[04.2002 - 08.2005] 3UZFE..UZZ40 |
96132-51000 |
from US $1.62 |
||
|
17630
|
17630
17630-16040 Valve Assy, Air Control[05.2001 - 08.2005] 3UZFE..UZZ40 |
17630-16040 |
from US $85.45 |
||
|
17650
|
17650
25860-50100 Valve Assy, Vacuum Switching[05.2001 - 08.2005] 3UZFE..UZZ40 NO.1 |
25860-50100 |
from US $74.28 |
||
|
17650
|
17650
25860-50121 Valve Assy, Vacuum Switching[05.2001 - 08.2005] 3UZFE..UZZ40 NO.2 |
25860-50121 |
from US $74.96 |
||
|
23818
|
23818
23818-46110 Pipe, Fuel Vapor Feed[05.2001 - 08.2005] 3UZFE..UZZ40 |
23818-46110 |
from US $10.18 |
||
|
23826
|
23826
23826-50030 Hose, Fuel Vapor Feed, No.1[05.2001 - 08.2005] 3UZFE..UZZ40 |
23826-50030 |
from US $2.96 |
||
|
23827A
|
23827A
23827-50050 Hose, Fuel Vapor Feed, No.2FUEL VAPOR FEED, NO.2 [05.2001 - 08.2005] 3UZFE..UZZ40..LHD |
23827-50050 |
US $25.04 |
||
|
23829A
|
23829A
23829-50070 Hose, Fuel Vapor Feed[05.2001 - 08.2005] 3UZFE..UZZ40 |
23829-50070 |
from US $27.30 |
||
|
25804
|
25804
25804-50011 Valve Set, Vacuum Control[05.2001 - 08.2005] 3UZFE..UZZ40 |
25804-50011 |
from US $205.71 |
||
|
91511B0812
|
91511B0812
91511-B0812 BOLT FLANGE |
91511-B0812 |
US $1.44 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
827112A730
|
827112A730
82711-2A730 Clamp, Throttle Cable, No.1 |
82711-2A730 |
US $5.28 |
||
|
1729450010
|
1729450010
17294-50010 Hose, Actuator |
17294-50010 |
US $24.11 |
||
|
1765850010
|
1765850010
17658-50010 Bracket, Vacuum Hose Clamp |
17658-50010 |
US $5.24 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.76 |
||
|
9046110829
|
9046110829
90461-10829
New Genuine Part
|
90461-10829 |
— | ||
|
9092901244
|
9092901244
90929-01244 New Genuine Part |
90929-01244 |
US $6.81 |
||
|
9092901394
|
9092901394
90929-01394 New Genuine Part |
90929-01394 |
US $1.76 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9212260816
|
9212260816
92122-60816 Bolt, Stud(For Water Pump Set) |
92122-60816 |
US $1.31 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.92 |
||
