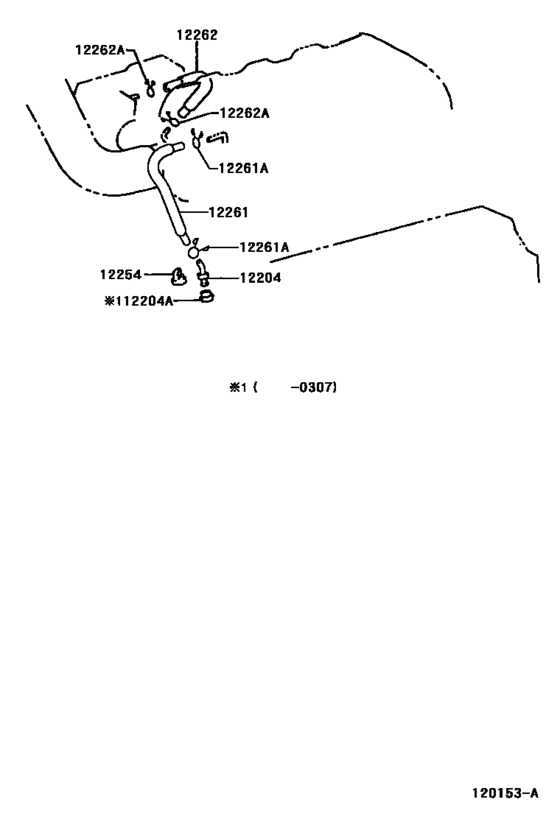

Ventilation Hose ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC

Year
2001 - 2005
Sales region
Europe
Frame
UZZ40
ENGINE
3UZFE
DESTINATION
EUR
Model
SC430
From
05.2001
To
08.2005
Gear Shift Type
5FC
Vehicle Model
SC430
Driver's Position
LHD

Difficulties in parts search?

Parts list
Ventilation Hose

Difficulties in parts search?

Ventilation Hose
Description OEM Part # Price
12204
12204

12204-50020

Valve Sub-Assy, Ventilation

[05.2001 - 07.2003] 3UZFE..UZZ40..5FC

12204-50020

from US $14.80

12204
12204

12204-50030

Valve Sub-Assy, Ventilation

[07.2003 - 08.2005] 3UZFE..UZZ40

12204-50030

from US $23.81

12204A
12204A

90480-18001

Grommet(For Ventilation System)

[05.2001 - 07.2003] 3UZFE..UZZ40..5FC

90480-18001

from US $3.84

12254
12254

12236-50010

Cover, Ventilation Valve

[05.2001 - 08.2005] 3UZFE..UZZ40

12236-50010

from US $3.76

12261
12261

12261-50050

Hose, Ventilation

[05.2001 - 08.2005] 3UZFE..UZZ40

12261-50050

from US $18.72

12261A
12261A

90467-15021

Clip Or Clamp(For Ventilation Hose)

[05.2001 - 08.2005] 3UZFE..UZZ40

90467-15021

from US $0.76

12262
12262

12262-50090

Hose, Ventilation, No.2

[05.2001 - 08.2003] 3UZFE..UZZ40..5FC..(EUR,GCC); 3UZFE..UZZ40..5FC..ARL SINGAPORE SPEC

12262-50090

from US $16.87

12262A
12262A

90467-20010

Clip Or Clamp(For Ventilation Hose)

[05.2001 - 08.2005] 3UZFE..UZZ40

90467-20010

from US $1.48

Ventilation Hose ([05.2001 - ] (0105- )) Diagram Toyota LEXUS SC Europe 17925424-926310
