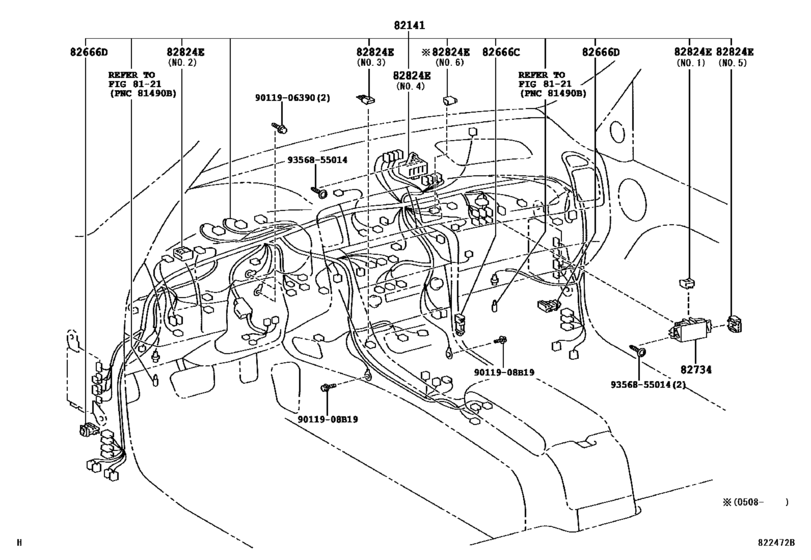

Wiring & Clamp ([05.2001 - ] INSTRUMENT PANEL (0105- )LHD) Diagram Toyota LEXUS SC
- Year
- 2001 - 2005
- Sales region
- Europe
- Frame
- UZZ40
- ENGINE
- 3UZFE
- DESTINATION
- EUR
- Model
- SC430
- From
- 05.2001
- To
- 08.2005
- Gear Shift Type
- 5FC
- Vehicle Model
- SC430
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82141
|
82141
82141-24610 Wire, Instrument PanelINSTRUMENT PANEL [05.2001 - 08.2004] UZZ40..LHD..5FC |
82141-24610 |
US $1,528.80 |
||
|
82141
|
82141
82141-24620 Wire, Instrument PanelINSTRUMENT PANEL [05.2001 - 08.2004] UZZ40..LHD..5FC..EUR W(EMV & NAVIGATION SYSTEM) |
82141-24620 |
US $1,528.80 |
||
|
82141
|
82141
82141-24690 Wire, Instrument PanelINSTRUMENT PANEL [08.2004 - 08.2005] UZZ40..LHD..EUR |
82141-24690 |
US $1,688.96 |
||
|
82666C
|
82666C
82666-20270 Holder, Connector No.2[05.2001 - 08.2005] UZZ40 |
82666-20270 |
US $2.91 |
||
|
82666D
|
82666D
82666-42020 Holder, Connector No.5[05.2001 - 08.2005] UZZ40 |
82666-42020 |
US $2.04 |
||
|
82734
|
82734
82734-24010 Block, Center Junction[05.2001 - 08.2005] UZZ40 |
82734-24010 |
US $38.15 |
||
|
82824E
|
82824E
82824-20110 Connector, Wiring Harness[05.2001 - 08.2005] UZZ40 NO.1 |
82824-20110 |
US $19.42 |
||
|
82824E
|
82824E
82824-28180 Connector, Wiring Harness[05.2001 - 08.2005] UZZ40 NO.2 |
82824-28180 |
US $6.41 |
||
|
82824E
|
82824E
82824-30130 Connector, Wiring Harness[05.2001 - 08.2005] UZZ40 NO.3 |
82824-30130 |
US $3.52 |
||
|
82824E
|
82824E
82824-30210 Connector, Wiring Harness[05.2001 - 08.2005] UZZ40 NO.4 |
82824-30210 |
US $19.66 |
||
|
82824E
|
82824E
82824-30220 Connector, Wiring Harness[05.2001 - 08.2005] UZZ40 NO.5 |
82824-30220 |
US $20.24 |
||
|
9011908B19
|
9011908B19
90119-08B19 New Genuine Part |
90119-08B19 |
US $1.02 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
