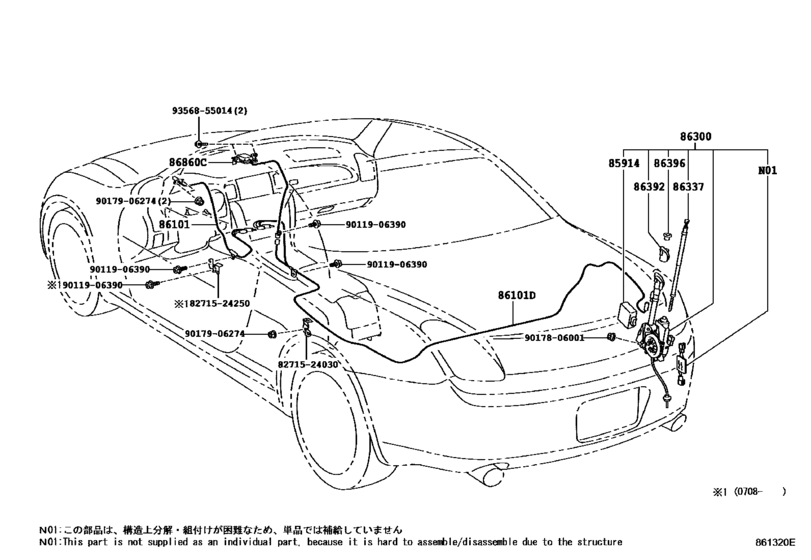

Antenna ([01.2001 - ] (0101- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85914
|
85914
85914-24040 Relay, Motor Antenna Control[08.2005 -] UZZ40 |
85914-24040 |
US $190.74 |
||
|
86101
|
86101
86101-24210 Cord Sub-Assy, AntennaANTENNA [08.2005 - 08.2007] UZZ40 |
86101-24210 |
US $77.17 |
||
|
86101
|
86101
86101-24280
Cord Sub-Assy, Antenna
[08.2007 -] UZZ40 |
86101-24280 |
— | ||
|
86101D
|
86101D
86101-24190 Cord Sub-Assy, Antenna, No.3ANTENNA, NO.3 [08.2005 -] UZZ40 |
86101-24190 |
US $100.46 |
||
|
86101D
|
86101D
86101-24221
Cord Sub-Assy, Antenna, No.3
[08.2005 - 08.2007] UZZ40 W(EMV & NAVIGATION SYSTEM) |
86101-24221 |
— | ||
|
86101D
|
86101D
86101-24270
Cord Sub-Assy, Antenna, No.3
[08.2007 - 08.2009] UZZ40 W(EMV & NAVIGATION SYSTEM) |
86101-24270 |
— | ||
|
86300
|
86300
86300-24341-A0 Antenna Assy, W/holder[08.2005 - 08.2006] UZZ40 WHITE PEARL CS.,065 |
86300-24341-A0 |
US $432.60 |
||
|
86300
|
86300
86300-24341-A1 Antenna Assy, W/holder[08.2006 -] UZZ40 WHITE PEARL CS.,077 |
86300-24341-A1 |
US $432.60 |
||
|
86300
|
86300
86300-24341-B3 Antenna Assy, W/holder[08.2005 -] UZZ40 PREMIUM SILVER,1F2 |
86300-24341-B3 |
US $432.60 |
||
|
86300
|
86300
86300-24341-B4 Antenna Assy, W/holder[08.2005 -] UZZ40 DK.GRAY MC.,1G0 |
86300-24341-B4 |
US $432.60 |
||
|
86300
|
86300
86300-24341-C0 Antenna Assy, W/holder[08.2005 - 08.2006] UZZ40 BLACK,202 |
86300-24341-C0 |
US $432.60 |
||
|
86300
|
86300
86300-24341-C2 Antenna Assy, W/holder[08.2006 -] UZZ40 BLACK,212 |
86300-24341-C2 |
US $432.60 |
||
|
86300
|
86300
86300-24341-D1 Antenna Assy, W/holder[08.2005 - 08.2008] UZZ40 BLACKISH RED MC.,3P6 |
86300-24341-D1 |
US $432.60 |
||
|
86300
|
86300
86300-24341-D2 Antenna Assy, W/holder[08.2005 -] UZZ40 RED MC.CS.,3R1 |
86300-24341-D2 |
US $432.60 |
||
|
86300
|
86300
86300-24341-D3 Antenna Assy, W/holder[08.2008 -] UZZ40 SHELL M.M.,3R4 |
86300-24341-D3 |
US $432.60 |
||
|
86300
|
86300
86300-24341-E1 Antenna Assy, W/holder[08.2005 - 08.2007] UZZ40 PREMIUM BEIGE,4S7 |
86300-24341-E1 |
US $432.60 |
||
|
86300
|
86300
86300-24341-E2 Antenna Assy, W/holder[08.2005 - 08.2009] UZZ40 PREMIUM BROWN,4T2 |
86300-24341-E2 |
US $432.60 |
||
|
86300
|
86300
86300-24341-E3 Antenna Assy, W/holder[08.2007 -] UZZ40 BEIGE ME.,4T1 |
86300-24341-E3 |
US $432.60 |
||
|
86300
|
86300
86300-24341-J1 Antenna Assy, W/holder[08.2005 - 08.2006] UZZ40 DK.BLUE M.M.,8P4 |
86300-24341-J1 |
US $432.60 |
||
|
86300
|
86300
86300-24341-J4 Antenna Assy, W/holder[08.2006 -] UZZ40 DK.BLUE MC. CC.,8U0 |
86300-24341-J4 |
US $432.60 |
||
|
86300
|
86300
86300-24341-J5 Antenna Assy, W/holderW/HOLDER [08.2009 -] UZZ40 BLUE M.M.,8U4 |
86300-24341-J5 |
US $432.60 |
||
|
86337
|
86337
86337-24340 Rod & Pipe, Sealed W/cable[08.2005 -] UZZ40 |
86337-24340 |
from US $51.89 |
||
|
86392
|
86392
86392-24030-A0
Ornament, Antenna
[08.2005 - 08.2006] UZZ40 WHITE PEARL CS.,065 |
86392-24030-A0 |
— | ||
|
86392
|
86392
86392-24030-A1
Ornament, Antenna
[08.2006 -] UZZ40 WHITE PEARL CS.,077 |
86392-24030-A1 |
— | ||
|
86392
|
86392
86392-24030-B3
Ornament, Antenna
[08.2005 -] UZZ40 PREMIUM SILVER,1F2 |
86392-24030-B3 |
— | ||
|
86392
|
86392
86392-24030-B4
Ornament, Antenna
[08.2005 -] UZZ40 DK.GRAY MC.,1G0 |
86392-24030-B4 |
— | ||
|
86392
|
86392
86392-24030-C0
Ornament, Antenna
[08.2005 - 08.2006] UZZ40 BLACK,202 |
86392-24030-C0 |
— | ||
|
86392
|
86392
86392-24030-C2
Ornament, Antenna
[08.2006 -] UZZ40 BLACK,212 |
86392-24030-C2 |
— | ||
|
86392
|
86392
86392-24030-D1
Ornament, Antenna
[08.2005 - 08.2008] UZZ40 BLACKISH RED MC.,3P6 |
86392-24030-D1 |
— | ||
|
86392
|
86392
86392-24030-D2
Ornament, Antenna
[08.2005 -] UZZ40 RED MC.CS.,3R1 |
86392-24030-D2 |
— | ||
|
86392
|
86392
86392-24030-D3
Ornament, Antenna
[08.2008 -] UZZ40 SHELL M.M.,3R4 |
86392-24030-D3 |
— | ||
|
86392
|
86392
86392-24030-E1
Ornament, Antenna
[08.2005 - 08.2007] UZZ40 PREMIUM BEIGE,4S7 |
86392-24030-E1 |
— | ||
|
86392
|
86392
86392-24030-E2
Ornament, Antenna
[08.2005 - 08.2009] UZZ40 PREMIUM BROWN,4T2 |
86392-24030-E2 |
— | ||
|
86392
|
86392
86392-24030-E3
Ornament, Antenna
[08.2007 -] UZZ40 BEIGE ME.,4T1 |
86392-24030-E3 |
— | ||
|
86392
|
86392
86392-24030-J1
Ornament, Antenna
[08.2005 - 08.2006] UZZ40 DK.BLUE M.M.,8P4 |
86392-24030-J1 |
— | ||
|
86392
|
86392
86392-24030-J4
Ornament, Antenna
[08.2006 -] UZZ40 DK.BLUE MC. CC.,8U0 |
86392-24030-J4 |
— | ||
|
86392
|
86392
86392-24030-J5
Ornament, Antenna
[08.2009 -] UZZ40 BLUE M.M.,8U4 |
86392-24030-J5 |
— | ||
|
86396
|
86396
86396-20030 Nut, Antenna[08.2005 -] UZZ40 |
86396-20030 |
US $5.24 |
||
|
86860C
|
86860C
86860-24060 Antenna Assy, Navigation[08.2005 - 08.2007] UZZ40 |
86860-24060 |
US $502.32 |
||
|
86860C
|
86860C
86860-24080
Antenna Assy, Navigation
[08.2007 -] UZZ40 |
86860-24080 |
— | ||
|
8271524030
|
8271524030
82715-24030 Bracket,wiring Harness Clamp |
82715-24030 |
US $5.24 |
||
|
8271524250
|
8271524250
82715-24250 Bracket,wiring Harness Clamp |
82715-24250 |
US $5.24 |
||
|
9011906390
|
9011906390
90119-06390 BOLT WWASHER |
90119-06390 |
US $1.12 |
||
|
9017806001
|
9017806001
90178-06001 New Genuine Part |
90178-06001 |
US $0.52 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
