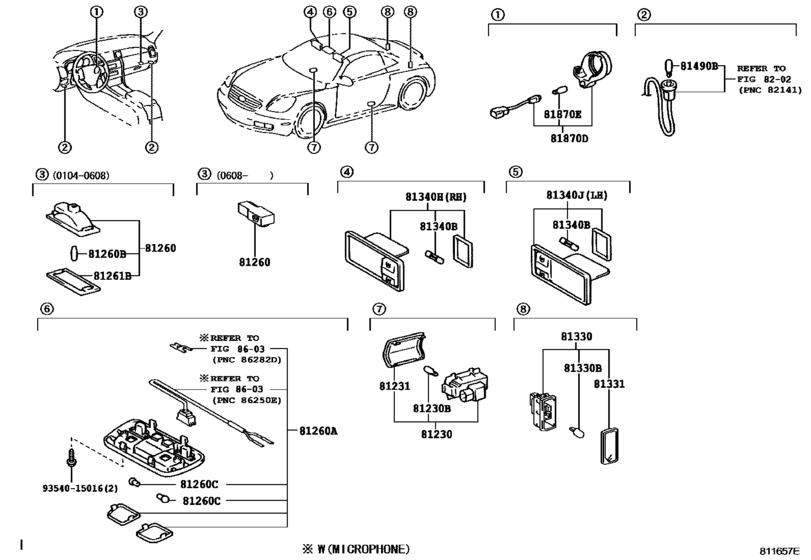

Interior Lamp ([01.2001 - ] (0101- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81230
|
81230
81230-30160 Lamp Assy, Courtesy[08.2005 -] UZZ40 |
81230-30160 |
US $22.54 |
||
|
81230
|
81230
81230-30170 Lamp Assy, CourtesyCOURTESY [08.2005 -] UZZ40 KOREA SPEC |
81230-30170 |
US $17.76 |
||
|
81230B
|
81230B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2005 -] UZZ40 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81231
|
81231
81231-50050 Lens, Courtesy Lamp[08.2005 -] UZZ40 |
81231-50050 |
from US $7.66 |
||
|
81231
|
81231
81231-50060 Lens, Courtesy LampCOURTESY LAMP [08.2005 -] UZZ40 KOREA SPEC |
81231-50060 |
US $10.24 |
||
|
81260
|
81260
81080-30010 Lamp Assy, Interior Illumination, No.1[08.2006 -] UZZ40 |
81080-30010 |
US $12.06 |
||
|
81260
|
81260
81260-50010 Lamp Assy, Glove Box[08.2005 - 08.2006] UZZ40 |
81260-50010 |
from US $8.37 |
||
|
81260A
|
81260A
81260-24061-A0 Lamp Assy, Map[08.2005 -] UZZ40 W(GARAGE DOOR OPENER),ECRU,TRIM0# |
81260-24061-A0 |
US $642.10 |
||
|
81260A
|
81260A
81260-24061-C0
Lamp Assy, Map
[08.2005 -] UZZ40 W(GARAGE DOOR OPENER),BLACK,TRIM2#,50 |
81260-24061-C0 |
— | ||
|
81260A
|
81260A
81260-24061-E0
Lamp Assy, Map
[08.2005 -] UZZ40 W(GARAGE DOOR OPENER),DK.BROWN,TRIM4# |
81260-24061-E0 |
— | ||
|
81260A
|
81260A
81260-24071-A0 Lamp Assy, Map[08.2005 -] UZZ40 ECRU,TRIM0# |
81260-24071-A0 |
US $129.29 |
||
|
81260A
|
81260A
81260-24071-C0
Lamp Assy, Map
[08.2005 -] UZZ40 BLACK,TRIM2#,50 |
81260-24071-C0 |
— | ||
|
81260A
|
81260A
81260-24071-E0
Lamp Assy, Map
[08.2005 -] UZZ40 DK.BROWN,TRIM4# |
81260-24071-E0 |
— | ||
|
81260A
|
81260A
81260-24100-A0
Lamp Assy, Map
[08.2005 - 08.2009] UZZ40 W(GARAGE DOOR OPENER & MICROPHONE),ECRU,TRIM0# |
81260-24100-A0 |
— | ||
|
81260A
|
81260A
81260-24100-C0
Lamp Assy, Map
[08.2005 - 08.2009] UZZ40 W(GARAGE DOOR OPENER & MICROPHONE),BLACK,TRIM2#,50 |
81260-24100-C0 |
— | ||
|
81260A
|
81260A
81260-24100-E0
Lamp Assy, Map
[08.2005 - 08.2009] UZZ40 W(GARAGE DOOR OPENER & MICROPHONE),DK.BROWN,TRIM4# |
81260-24100-E0 |
— | ||
|
81260A
|
81260A
81260-24120-A0
Lamp Assy, Map
[08.2005 - 08.2007] UZZ40 W(MICROPHONE),ECRU,TRIM0# |
81260-24120-A0 |
— | ||
|
81260A
|
81260A
81260-24120-C0
Lamp Assy, Map
[08.2005 - 08.2007] UZZ40 W(MICROPHONE),BLACK,TRIM2#,50 |
81260-24120-C0 |
— | ||
|
81260A
|
81260A
81260-24120-E0
Lamp Assy, Map
[08.2005 - 08.2007] UZZ40 W(MICROPHONE),DK.BROWN,TRIM4# |
81260-24120-E0 |
— | ||
|
81260A
|
81260A
81260-24140-A0
Lamp Assy, Map
[08.2009 -] UZZ40 W(GARAGE DOOR OPENER & MICROPHONE),ECRU,TRIM0# |
81260-24140-A0 |
— | ||
|
81260A
|
81260A
81260-24140-C0
Lamp Assy, Map
[08.2009 -] UZZ40 W(GARAGE DOOR OPENER & MICROPHONE),BLACK,TRIM2#,5# |
81260-24140-C0 |
— | ||
|
81260A
|
81260A
81260-24140-E0
Lamp Assy, Map
[08.2009 -] UZZ40 W(GARAGE DOOR OPENER & MICROPHONE),DK.BROWN,TRIM4# |
81260-24140-E0 |
— | ||
|
81260B
|
81260B
90981-11018 Bulb, Position Indicator Lamp[08.2005 - 08.2006] UZZ40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
81260C
|
81260C
90981-12005 Bulb, Room Lamp, No.1[08.2005 -] UZZ40 12V 8W |
90981-12005 |
from US $2.24 |
||
|
81261B
|
81261B
81261-50010 Lens,glove Box Lamp[08.2005 - 08.2006] UZZ40 |
81261-50010 |
US $5.11 |
||
|
81330
|
81330
81230-30140 Lamp Assy, Courtesy[08.2005 -] UZZ40 |
81230-30140 |
from US $15.46 |
||
|
81330B
|
81330B
90981-11020 Bulb (For Lower Back Finish Panel Emblem)[08.2005 -] UZZ40 12V 3.8W |
90981-11020 |
from US $2.72 |
||
|
81331
|
81331
81231-50010 Lens, Courtesy Lamp[08.2005 -] UZZ40 |
81231-50010 |
from US $6.40 |
||
|
81340B
|
81340B
90981-14003 Bulb (For Vanity Lamp)[08.2005 -] UZZ40 12V 1.5W |
90981-14003 |
US $0.96 |
||
|
81340H
|
81340H
81340-33130-A2 Lamp Assy, Vanity, RhVANITY, RH [08.2005 - 07.2006] UZZ40 ECRU,TRIM0#,50 |
81340-33130-A2 |
US $93.18 |
||
|
81340H
|
81340H
81340-33130-C0 Lamp Assy, Vanity, RhVANITY, RH [08.2005 - 07.2006] UZZ40 BLACK,TRIM2#,50 |
81340-33130-C0 |
US $93.18 |
||
|
81340H
|
81340H
81340-33130-E1
Lamp Assy, Vanity, Rh
[08.2005 - 07.2006] UZZ40 CAMEL/DK.BROWN,TRIM4# |
81340-33130-E1 |
— | ||
|
81340H
|
81340H
81340-60070-A1
Lamp Assy, Vanity, Rh
[08.2006 -] UZZ40 ECRU,TRIM0# |
81340-60070-A1 |
— | ||
|
81340H
|
81340H
81340-60070-C0
Lamp Assy, Vanity, Rh
[08.2006 - 11.2006] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33 |
81340-60070-C0 |
— | ||
|
81340H
|
81340H
81340-60070-E0
Lamp Assy, Vanity, Rh
[08.2006 -] UZZ40 DK.BROWN,TRIM4# |
81340-60070-E0 |
— | ||
|
81340J
|
81340J
81350-33050-A2 Lamp Assy, Vanity, LhVANITY, LH [08.2005 - 07.2006] UZZ40 ECRU,TRIM0#,50 |
81350-33050-A2 |
US $93.18 |
||
|
81340J
|
81340J
81350-33050-C0 Lamp Assy, Vanity, LhVANITY, LH [08.2005 - 07.2006] UZZ40 BLACK,TRIM2#,50 |
81350-33050-C0 |
US $113.57 |
||
| replacement | |||||
|
81340J
|
81340J
81350-60020-C0
Lamp Assy, Vanity, Lh
[08.2005 - 07.2006] UZZ40 BLACK,TRIM2#,50 |
81350-60020-C0 |
— | ||
|
81340J
|
81340J
81350-33050-E1
Lamp Assy, Vanity, Lh
[08.2005 - 07.2006] UZZ40 CAMEL/DK.BROWN,TRIM4# |
81350-33050-E1 |
— | ||
|
81340J
|
81340J
81350-60020-A1
Lamp Assy, Vanity, Lh
[08.2006 -] UZZ40 ECRU,TRIM0# |
81350-60020-A1 |
— | ||
|
81340J
|
81340J
81350-60020-C0
Lamp Assy, Vanity, Lh
[08.2006 - 11.2006] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),BLACK,TRIM33 |
81350-60020-C0 |
— | ||
|
81340J
|
81340J
81350-60020-E0
Lamp Assy, Vanity, Lh
[08.2006 -] UZZ40 DK.BROWN,TRIM4# |
81350-60020-E0 |
— | ||
|
81490B
|
81490B
90981-11041 Bulb, Ash Receptacle Lamp[08.2005 - 08.2006] UZZ40 14V 1.4W |
90981-11041 |
US $2.24 |
||
|
81870D
|
81870D
81870-30060 Lamp Assy, Key Cylinder[08.2005 -] UZZ40 |
81870-30060 |
US $50.38 |
||
|
81870E
|
81870E
90981-11018 Bulb, Position Indicator Lamp[08.2005 -] UZZ40 12V 1.2W W/O SOCKET |
90981-11018 |
from US $2.24 |
||
|
9354015016
|
9354015016
93540-15016 New Genuine Part |
93540-15016 |
US $0.87 |
||
