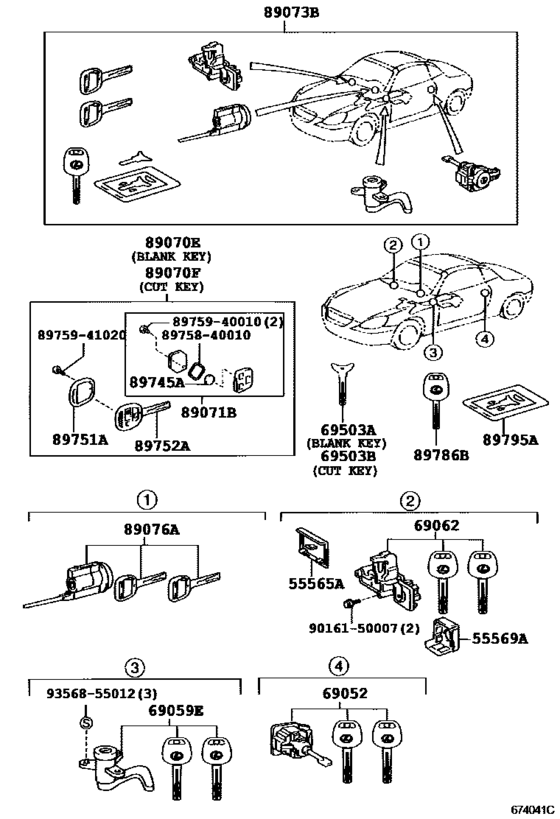

Lock Cylinder Set ([08.2005 - ] (0508- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55565A
|
55565A
55565-24010-A0 Handle, Glove Compartment Door Lock[08.2005 -] UZZ40 ECRU,TRIM0# |
55565-24010-A0 |
US $2.62 |
||
|
55565A
|
55565A
55565-24010-C0 Handle, Glove Compartment Door Lock[08.2005 -] UZZ40 BLACK,TRIM2#,5# |
55565-24010-C0 |
US $2.62 |
||
|
55565A
|
55565A
55565-24010-D0 Handle, Glove Compartment Door Lock[08.2006 - 11.2006] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33 |
55565-24010-D0 |
US $2.62 |
||
|
55565A
|
55565A
55565-24010-E0 Handle, Glove Compartment Door Lock[08.2005 -] UZZ40 CAMEL,TRIM4# |
55565-24010-E0 |
US $2.62 |
||
|
55569A
|
55569A
55569-24010-A0 Cover, Glove Compartment Door Lock[08.2005 -] UZZ40 ECRU,TRIM0# |
55569-24010-A0 |
US $3.49 |
||
|
55569A
|
55569A
55569-24010-C0 Cover, Glove Compartment Door Lock[08.2005 -] UZZ40 BLACK,TRIM2#,5# |
55569-24010-C0 |
US $3.49 |
||
|
55569A
|
55569A
55569-24010-D0 Cover, Glove Compartment Door Lock[08.2006 - 11.2006] UZZ40 PEBBLE BEACH EDITION(USA/HAWAII/CANADA/P.RICO),RED,TRIM33 |
55569-24010-D0 |
US $3.49 |
||
|
55569A
|
55569A
55569-24010-E0 Cover, Glove Compartment Door Lock[08.2005 -] UZZ40 CAMEL,TRIM4# |
55569-24010-E0 |
US $3.49 |
||
|
69052
|
69052
69052-24060 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [08.2005 -] UZZ40 |
69052-24060 |
US $131.04 |
||
|
69059E
|
69059E
69059-24010 Cylinder & Key Set, Console Compartment LockCONSOLE COMPARTMENT LOCK [08.2005 -] UZZ40 |
69059-24010 |
US $119.39 |
||
|
69062
|
69062
69056-24070 Cylinder & Key Set, Glove Compartment LockGLOVE COMPARTMENT LOCK [08.2005 -] UZZ40 |
69056-24070 |
US $147.06 |
||
|
69503A
|
69503A
90999-00233
Key, Blank
[08.2005 -] UZZ40 MASTER KEY,CARD TYPE |
90999-00233 |
— | ||
|
69503B
|
69503B
69515-50130 Key, BlankCUT [08.2005 -] UZZ40 MASTER KEY |
69515-50130 |
US $126.67 |
||
|
89070E
|
89070E
89070-24171 Transmitter Assy, Door Control[08.2005 - 08.2009] UZZ40 |
89070-24171 |
US $216.94 |
||
|
89070E
|
89070E
89070-24180
Transmitter Assy, Door Control
[08.2005 - 10.2005] UZZ40 TAIWAN SPEC |
89070-24180 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24181 Transmitter Assy, Door Control[08.2005 - 10.2005] UZZ40 TAIWAN SPEC |
89070-24181 |
US $311.58 |
||
|
89070E
|
89070E
89070-24181 Transmitter Assy, Door Control[11.2005 - 08.2007] UZZ40 TAIWAN SPEC |
89070-24181 |
US $311.58 |
||
|
89070E
|
89070E
89070-24500
Transmitter Assy, Door Control
[08.2005 - 10.2005] UZZ40 KOREA SPEC |
89070-24500 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24501 Transmitter Assy, Door Control[08.2005 - 10.2005] UZZ40 KOREA SPEC |
89070-24501 |
US $259.17 |
||
|
89070E
|
89070E
89070-24501 Transmitter Assy, Door Control[11.2005 - 08.2009] UZZ40 KOREA SPEC |
89070-24501 |
US $259.17 |
||
|
89070E
|
89070E
89070-24660
Transmitter Assy, Door Control
[08.2009 -] UZZ40 |
89070-24660 |
— | ||
|
89070E
|
89070E
89070-24710
Transmitter Assy, Door Control
[08.2009 -] UZZ40 KOREA SPEC |
89070-24710 |
— | ||
| replacement | |||||
|
89070E
|
89070E
89070-24711
Transmitter Assy, Door Control
[08.2009 -] UZZ40 KOREA SPEC |
89070-24711 |
— | ||
|
89070F
|
89070F
89070-24231 Transmitter Assy, Door Control (Cut Key)[08.2005 - 08.2009] UZZ40 |
89070-24231 |
US $374.19 |
||
|
89070F
|
89070F
89070-24240
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40 TAIWAN SPEC |
89070-24240 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24241
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40 TAIWAN SPEC |
89070-24241 |
— | ||
|
89070F
|
89070F
89070-24241
Transmitter Assy, Door Control (Cut Key)
[11.2005 - 08.2007] UZZ40 TAIWAN SPEC |
89070-24241 |
— | ||
|
89070F
|
89070F
89070-24510
Transmitter Assy, Door Control (Cut Key)
[08.2005 - 10.2005] UZZ40 KOREA SPEC |
89070-24510 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24511 Transmitter Assy, Door Control (Cut Key)[08.2005 - 10.2005] UZZ40 KOREA SPEC |
89070-24511 |
US $417.87 |
||
|
89070F
|
89070F
89070-24511 Transmitter Assy, Door Control (Cut Key)[11.2005 - 08.2009] UZZ40 KOREA SPEC |
89070-24511 |
US $417.87 |
||
|
89070F
|
89070F
89070-24790
Transmitter Assy, Door Control (Cut Key)
[08.2009 -] UZZ40 |
89070-24790 |
— | ||
|
89070F
|
89070F
89070-24870
Transmitter Assy, Door Control (Cut Key)
[08.2009 -] UZZ40 KOREA SPEC |
89070-24870 |
— | ||
| replacement | |||||
|
89070F
|
89070F
89070-24871
Transmitter Assy, Door Control (Cut Key)
[08.2009 -] UZZ40 KOREA SPEC |
89070-24871 |
— | ||
|
89071B
|
89071B
89071-24080 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [08.2005 - 08.2009] UZZ40 KOREA SPEC |
89071-24080 |
US $199.47 |
||
|
89071B
|
89071B
89071-24240
Module Set, Transmitter Sub-Assy, Door Control
[08.2009 - 07.2010] UZZ40 |
89071-24240 |
— | ||
|
89071B
|
89071B
89071-24290
Module Set, Transmitter Sub-Assy, Door Control
[08.2009 - 07.2010] UZZ40 KOREA SPEC |
89071-24290 |
— | ||
|
89071B
|
89071B
89071-50230 Module Set, Transmitter Sub-Assy, Door ControlTRANSMITTER SUB-ASSY, DOOR CONTROL [08.2005 - 08.2009] UZZ40 |
89071-50230 |
from US $199.47 |
||
|
89073B
|
89073B
69005-24310
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2005 - 08.2009] UZZ40 |
69005-24310 |
— | ||
|
89073B
|
89073B
69005-24320
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2009 -] UZZ40 |
69005-24320 |
— | ||
|
89073B
|
89073B
69005-24350
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2009 -] UZZ40 KOREA SPEC |
69005-24350 |
— | ||
|
89073B
|
89073B
69005-24410
Cylinder Set, Lock W/transmitter Housing(Less Module)
[08.2005 - 08.2009] UZZ40 KOREA OR TAIWAN SPEC |
69005-24410 |
— | ||
|
89076A
|
89076A
69057-24160 Ign Cylinder Set, Lock W/transmitter HousingLOCK W/TRANSMITTER HOUSING [08.2005 -] UZZ40 |
69057-24160 |
US $177.63 |
||
| replacement | |||||
|
89076A
|
89076A
69057-24180
Ign Cylinder Set, Lock W/transmitter Housing
[08.2005 -] UZZ40 |
69057-24180 |
— | ||
|
89745A
|
89745A
89745-40010
Transmitter Battery
[08.2005 -] UZZ40 |
89745-40010 |
— | ||
|
89751A
|
89751A
89751-24031 Cover, Transmitter Housing[08.2005 -] UZZ40 |
89751-24031 |
US $10.48 |
||
|
89751A
|
89751A
89751-24041 Cover, Transmitter HousingTRANSMITTER HOUSING [08.2005 - 08.2007] UZZ40 TAIWAN SPEC |
89751-24041 |
US $10.48 |
||
|
89751A
|
89751A
89751-50111 Cover, Transmitter Housing[08.2005 -] UZZ40 KOREA SPEC |
89751-50111 |
US $10.48 |
||
| replacement | |||||
|
89751A
|
89751A
89751-50112 Cover, Transmitter Housing[08.2005 -] UZZ40 KOREA SPEC |
89751-50112 |
US $10.48 |
||
|
89752A
|
89752A
89752-33070 Case, Transmitter HousingTRANSMITTER HOUSING [08.2005 - 08.2009] UZZ40 BLANK KEY |
89752-33070 |
US $16.97 |
||
|
89752A
|
89752A
89752-33080 Case, Transmitter HousingTRANSMITTER HOUSING [08.2005 -] UZZ40 MASTER KEY(CUT) |
89752-33080 |
US $178.56 |
||
|
89786B
|
89786B
89786-24020
Transmitter, Transponder Key Sub
[08.2009 -] UZZ40 BLANK KEY |
89786-24020 |
— | ||
|
89786B
|
89786B
89786-24030
Transmitter, Transponder Key Sub
[08.2009 -] UZZ40 CUT KEY |
89786-24030 |
— | ||
|
89786B
|
89786B
89786-50110
Transmitter, Transponder Key Sub
[08.2005 - 08.2009] UZZ40 BLANK KEY |
89786-50110 |
— | ||
| replacement | |||||
|
89786B
|
89786B
89786-60150 Transmitter, Transponder Key SubTRANSPONDER KEY SUB [08.2005 - 08.2009] UZZ40 BLANK KEY |
89786-60150 |
US $139.78 |
||
|
89786B
|
89786B
89786-50130 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [08.2005 - 08.2009] UZZ40 CUT KEY |
89786-50130 |
US $139.78 |
||
| replacement | |||||
|
89786B
|
89786B
89786-60200 Transmitter, Transponder Cut Key SubTRANSPONDER CUT KEY SUB [08.2005 - 08.2009] UZZ40 CUT KEY |
89786-60200 |
US $139.78 |
||
|
89795A
|
89795A
89795-24010
Card, Transponder Key
[08.2009 -] UZZ40 |
89795-24010 |
— | ||
|
89795A
|
89795A
89795-24020
Card, Transponder Key
[08.2009 -] UZZ40 KOREA SPEC |
89795-24020 |
— | ||
|
89795A
|
89795A
89795-50010
Card, Spare Key
[08.2005 - 08.2009] UZZ40 |
89795-50010 |
— | ||
|
89795A
|
89795A
89795-50020
Card, Transponder Key
[08.2005 - 08.2009] UZZ40 KOREA OR TAIWAN SPEC |
89795-50020 |
— | ||
|
8975840010
|
8975840010
89758-40010 Packing, Door Control Transmitter |
89758-40010 |
US $3.20 |
||
|
8975940010
|
8975940010
89759-40010 Screw, Door Control Transmitter |
89759-40010 |
US $1.92 |
||
|
8975941020
|
8975941020
89759-41020 Screw, Door Control Transmitter |
89759-41020 |
from US $1.19 |
||
|
9016150007
|
9016150007
90161-50007 New Genuine Part |
90161-50007 |
US $0.52 |
||
|
9356855012
|
9356855012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
