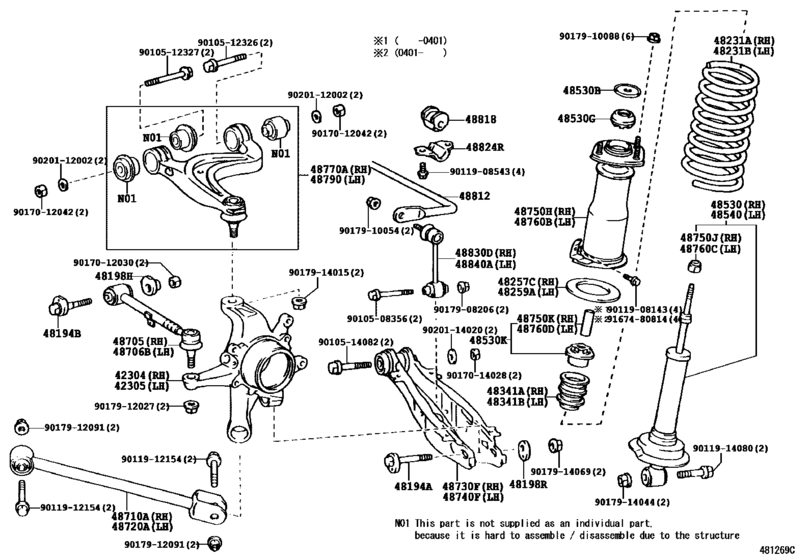

Rear Spring & Shock Absorber ([01.2001 - ] (0101- )) Diagram Toyota LEXUS SC
- Year
- 2005 - 2010
- Sales region
- U.S.A.
- Frame
- UZZ40
- ENGINE
- 3UZFE
- TRANSMISSION
- ATM
- Model
- SC430
- From
- 08.2005
- To
- 07.2010
- Gear Shift Type
- 6FC
- Vehicle Model
- SC430
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-24030 Carrier Sub-Assy, Rear Axle, Rh[08.2005 -] UZZ40 |
42304-24030 |
US $272.56 |
||
|
42305
|
42305
42305-24030 Carrier Sub-Assy, Rear Axle, Lh[08.2005 -] UZZ40 |
42305-24030 |
US $272.56 |
||
|
48194A
|
48194A
48190-30040 Cam, Suspension Camber Adjust, No.1[08.2005 -] UZZ40 |
48190-30040 |
from US $11.72 |
||
|
48194B
|
48194B
48190-30060 Cam, Rear Suspension Camber Adjust, No.1[08.2005 -] UZZ40 |
48190-30060 |
US $11.20 |
||
|
48198H
|
48198H
48198-30080 Cam, Camber Adjust, No.2[08.2005 -] UZZ40 |
48198-30080 |
from US $10.34 |
||
|
48198R
|
48198R
48198-30060 Cam, Front Suspension Camber Adjust, No.2[08.2005 -] UZZ40 |
48198-30060 |
from US $10.72 |
||
|
48231A
|
48231A
48231-24290
Spring, Coil, Rear Rh
[08.2005 - 04.2007] UZZ40 |
48231-24290 |
— | ||
| replacement | |||||
|
48231A
|
48231A
48231-24291
Spring, Coil, Rear Rh
[08.2005 - 04.2007] UZZ40 |
48231-24291 |
— | ||
|
48231A
|
48231A
48231-24291
Spring, Coil, Rear Rh
[05.2007 -] UZZ40 |
48231-24291 |
— | ||
|
48231B
|
48231B
48231-24290
Spring, Coil, Rear Rh
[08.2005 - 04.2007] UZZ40 |
48231-24290 |
— | ||
| replacement | |||||
|
48231B
|
48231B
48231-24291
Spring, Coil, Rear Rh
[08.2005 - 04.2007] UZZ40 |
48231-24291 |
— | ||
|
48231B
|
48231B
48231-24291
Spring, Coil, Rear Rh
[05.2007 -] UZZ40 |
48231-24291 |
— | ||
|
48257C
|
48257C
48257-30060 Insulator, Rear Coil Spring, Upper[08.2005 -] UZZ40 |
48257-30060 |
from US $6.06 |
||
|
48259A
|
48259A
48257-30060 Insulator, Rear Coil Spring, Upper[08.2005 -] UZZ40 |
48257-30060 |
from US $6.06 |
||
|
48341A
|
48341A
48341-30080 Bumper, Rear Spring, No.1 Rh[08.2005 -] UZZ40 |
48341-30080 |
US $34.96 |
||
|
48341B
|
48341B
48341-30080 Bumper, Rear Spring, No.1 Rh[08.2005 -] UZZ40 |
48341-30080 |
US $34.96 |
||
|
48530
|
48530
48530-80333 Absorber Assy, Shock, Rear[08.2005 -] UZZ40 MARK 48530-24300 |
48530-80333 |
US $137.64 |
||
|
48530B
|
48530B
90948-03023 Washer, Rear Shock Absorber Cushion, No.1[08.2005 -] UZZ40 |
90948-03023 |
US $6.24 |
||
|
48530G
|
48530G
90948-01083 Cushion, Rear Shock Absorber, No.1[08.2005 -] UZZ40 |
90948-01083 |
US $5.60 |
||
|
48530K
|
48530K
90948-01082 Cushion, Rear Shock Absorber, No.2[08.2005 -] UZZ40 |
90948-01082 |
US $16 |
||
|
48540
|
48540
48530-80333 Absorber Assy, Shock, Rear[08.2005 -] UZZ40 MARK 48530-24300 |
48530-80333 |
US $137.64 |
||
|
48705
|
48705
48705-30070 Link Sub-Assy, Toe Control[08.2005 -] UZZ40 |
48705-30070 |
US $57.91 |
||
|
48706B
|
48706B
48705-30070 Link Sub-Assy, Toe Control[08.2005 -] UZZ40 |
48705-30070 |
US $57.91 |
||
|
48710A
|
48710A
48710-24040 Arm Assy, Rear Suspension, No.1 Rh[08.2005 -] UZZ40 |
48710-24040 |
US $83.52 |
||
|
48720A
|
48720A
48710-24040 Arm Assy, Rear Suspension, No.1 Rh[08.2005 -] UZZ40 |
48710-24040 |
US $83.52 |
||
|
48730F
|
48730F
48730-30080 Arm Assy, Rear Suspension, No.2 Rh[08.2005 -] UZZ40 |
48730-30080 |
US $104.72 |
||
|
48740F
|
48740F
48740-30080 Arm Assy, Rear Suspension, No.2 Lh[08.2005 -] UZZ40 |
48740-30080 |
US $108.33 |
||
|
48750H
|
48750H
48750-24050 Support Assy, Rear Suspension, Rh[08.2005 -] UZZ40 |
48750-24050 |
US $154.08 |
||
|
48750J
|
48750J
90177-12002 Nut[08.2005 -] UZZ40 |
90177-12002 |
US $1.44 |
||
|
48750K
|
48750K
90387-12050 Collar[08.2005 -] UZZ40 |
90387-12050 |
US $6.56 |
||
|
48760B
|
48760B
48760-24010 Support Assy Rear Suspension, Lh[08.2005 -] UZZ40 |
48760-24010 |
US $154.08 |
||
|
48760C
|
48760C
90177-12002 Nut[08.2005 -] UZZ40 |
90177-12002 |
US $1.44 |
||
|
48760D
|
48760D
90387-12050 Collar[08.2005 -] UZZ40 |
90387-12050 |
US $6.56 |
||
|
48770A
|
48770A
48770-24060 Arm Assy, Upper Control, Rear Rh[08.2005 -] UZZ40 |
48770-24060 |
US $316.40 |
||
|
48790
|
48790
48790-24060 Arm Assy, Upper Control, Rear Lh[08.2005 -] UZZ40 |
48790-24060 |
US $316.40 |
||
|
48812
|
48812
48812-24110 Bar, Stabilizer, Rear[08.2005 -] UZZ40 |
48812-24110 |
US $81.54 |
||
|
48818
|
48818
48818-53030 Bush, Stabilizer, Rear[08.2005 -] UZZ40 |
48818-53030 |
US $12.16 |
||
|
48824R
|
48824R
48832-30050 Bracket, Stabilizer(For Rear)[08.2005 -] UZZ40 |
48832-30050 |
from US $6.45 |
||
|
48830D
|
48830D
48830-30080 Link Assy, Rear Stabilizer[08.2005 -] UZZ40 |
48830-30080 |
US $74.63 |
||
|
48840A
|
48840A
48830-30080 Link Assy, Rear Stabilizer[08.2005 -] UZZ40 |
48830-30080 |
US $74.63 |
||
|
9010508356
|
9010508356
90105-08356 BOLT WASHER BASED |
90105-08356 |
US $2.72 |
||
|
9010512326
|
9010512326
90105-12326 BOLT FLANGE |
90105-12326 |
US $6.24 |
||
|
9010512327
|
9010512327
90105-12327 BOLT FLANGE |
90105-12327 |
US $6.24 |
||
|
9010514082
|
9010514082
90105-14082 BOLT, WASHER BASED |
90105-14082 |
US $6.24 |
||
|
9011908143
|
9011908143
90119-08143 New Genuine Part |
90119-08143 |
US $2.88 |
||
|
9011908543
|
9011908543
90119-08543
Bolt
|
90119-08543 |
— | ||
| replacement | |||||
|
9011908543
|
9011908543
91611-60814 Bolt |
91611-60814 |
from US $0.82 |
||
|
9011912154
|
9011912154
90119-12154 BOLT WWASHER |
90119-12154 |
US $6.24 |
||
|
9011914080
|
9011914080
90119-14080 BOLT WWASHER |
90119-14080 |
US $5.60 |
||
|
9017012030
|
9017012030
90170-12030 NUTHEXAGON |
90170-12030 |
from US $1.29 |
||
|
9017012042
|
9017012042
90170-12042 Nut, No.2(For Rear Upper Control Arm) |
90170-12042 |
US $2.72 |
||
|
9017014028
|
9017014028
90170-14028 NUT HEXAGON |
90170-14028 |
US $2.72 |
||
|
9017908206
|
9017908206
90179-08206 Nut(For Front Suspension Support) |
90179-08206 |
from US $0.86 |
||
|
9017910054
|
9017910054
90179-10054 Nut, No.1 (For Center Support Bearing) |
90179-10054 |
from US $0.37 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9017912027
|
9017912027
90179-12027 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-12027 |
US $1.92 |
||
|
9017912091
|
9017912091
90179-12091 Nut(For Front Suspension Lower Arm) |
90179-12091 |
from US $1.23 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.93 |
||
|
9017914044
|
9017914044
90179-14044 NUT |
90179-14044 |
US $3.20 |
||
|
9017914069
|
9017914069
90179-14069 Nut |
90179-14069 |
from US $1.17 |
||
|
9020112002
|
9020112002
90201-12002 WASHER |
90201-12002 |
US $2.24 |
||
|
9020114020
|
9020114020
90201-14020 WASHER |
90201-14020 |
from US $1.01 |
||
|
9167480814
|
9167480814
91674-80814 Bolt |
91674-80814 |
US $1.44 |
||
